Order MS2-W101-LCD-BC by Dwyer Series MS2 Pressure Transmitter - US Mega Store

Dwyer . MS2-W101-LCD-BC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute239600, 19200, 38400, 57600, 76800, 115200
Attribute01, Attribute248
Attribute02, Attribute25None
Attribute03, Attribute26, moq, multiple, tierMinQty11
Attribute04, Attribute27Air and non-combustible, compatible gases
Attribute05, Attribute28±1% FS for 0.15" (40 Pa), 0.25" (50 Pa), 0.5" (100 Pa), 2" (500 Pa), 3" (750 Pa), 5" (1250 Pa), 10" (2 kPa), 15" (3 kPa), 25" (5 kPa), 28" (6.975 kPa); ±2% FS for 0.1" (25 Pa), 1" (250 Pa), and all bi-directional ranges
Attribute06, Attribute29±1% / year FSO
Attribute07, Attribute300 to 150°F (-18 to 66°C)
Attribute08, Attribute311 psi max., operation; 10 psi burst
Attribute09, Attribute3210 to 35 VDC (2-wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire)
Attribute10, Attribute334 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire)
Attribute11, Attribute34Adjustable: 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds
Attribute12, Attribute35Digital push buttons
Attribute13, Attribute36Current Output: 0 to 1250 Ω max; Voltage Output: Min. load resistance 1 kΩ
Attribute14, Attribute3740 mA max
Attribute15, Attribute385 digit LCD
Attribute16, Attribute393-wire removable European style terminal block for 16 to 22 AWG
Attribute17, Attribute401/2" NPS thread
Attribute18, Attribute413/16" ID tubing (5 mm ID); Max. OD 9 mm
Attribute19, Attribute42IP66
Attribute20, Attribute43Diaphragm in vertical position
Attribute21, Attribute448.0 oz (230 g)
Attribute22, Attribute45BTL, CE
AttributeKey00, AttributeKey23Supported Baud Rates
AttributeKey01, AttributeKey24Data Size
AttributeKey02, AttributeKey25Parity
AttributeKey03, AttributeKey26Stop Bits
AttributeKey04, AttributeKey27Service
AttributeKey05, AttributeKey28Typical Accuracy
AttributeKey06, AttributeKey29Stability
AttributeKey07, AttributeKey30Temperature Limits
AttributeKey08, AttributeKey31Pressure Limits
AttributeKey09, AttributeKey32Power Requirements
AttributeKey10, AttributeKey33Output Signals
AttributeKey11, AttributeKey34Response Time
AttributeKey12, AttributeKey35Zero & Span Adjustments
AttributeKey13, AttributeKey36Loop Resistance
AttributeKey14, AttributeKey37Current Consumption
AttributeKey15, AttributeKey38Display (Optional)
AttributeKey16, AttributeKey39Electrical Connections
AttributeKey17, AttributeKey40Electrical Entry
AttributeKey18, AttributeKey41Process Connection
AttributeKey19, AttributeKey42Enclosure Rating
AttributeKey20, AttributeKey43Mounting Orientation
AttributeKey21, AttributeKey44, Weight_AttribWeight
AttributeKey22, AttributeKey45Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer MS2-W101-LCD-BC
ConditionNEW
Extra Product NameOrder MS2-W101-LCD-BC by Dwyer Series MS2 Pressure Transmitter - US Mega Store
Weight8.0
WeightUnitoz
MPN, SKUMS2-W101-LCD-BC
qtyInStockContact Us

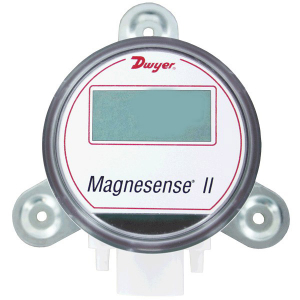

snippet<p><strong>Dwyer, MS2-W101-LCD-BC, Series MS2 Magnesense II Differential Pressure Transmitter, BACnet </strong> </p> <p>Monitors Pressure, Air Velocity & Air Flow, BACnet/Modbus&#174; Communications </p> <p>The Series MS2 Magnesense&#174; II Differential Pressure Transmitter combines the proven stable Hall Effect sensing technology of our original Series MS with additional features to reduce installation time and simplify ordering. In this second generation transmitter, we have added additional field selectable pressure ranges so that each model can have four selectable ranges along with four additional bidirectional ranges. The voltage output can be selected to be either 0 to 5 VDC or 0 to 10 VDC, while the current is always 4 to 20 mA. Both the current and voltage output can also be inverted. Like the original Series MS, the second generation transmitter can be used as a linear pressure output or a linear velocity output with the square root extraction done in the transmitter. Additional parameters have been included to expand the square root capability to include flow measurements. The MS2 accounts as an eighth of a load on the MSTP network. </p> <p><strong>Product Applications </strong> </p> <ul><li>Duct Static Pressure </li> <li>Fan Proving </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>BTL Certificate </li> <li>CE Approval without BACnet or MODBUS </li> </ul>
tierPrice1272

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comMS2-W101-LCD-BC1Contact Us11 @ $272.00
heavydutydepot.comMS2-W101-LCD-BC111 @ $272.00
MegadepotMS2-W101-LCD-BC11
RadwellMS2-W101-LCD-BC111 @ $260.00
