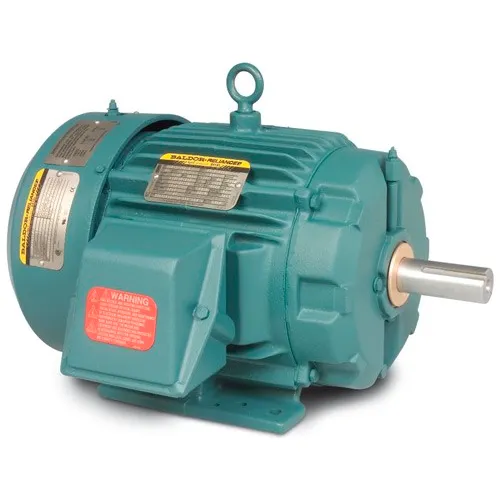

VENCP83581T-4 - Baldor 1HP, 1765RPM, 3PH, 60HZ, 143TC, 0524M, TENV, F1, Motor Super 'E'

460 Volts1.00 hp Output1800 RPMThree PhaseTENV Enclosure143TC Frame Size1.50 A FL Amps87.5 % FL EfficiencyC-Face Drive End Flange TypeMounting: Footless

Baldor Electric, VENCP83581T-4, 1HP, 1765RPM, 3PH, 460V, 143TC Frame, Standard Flange, Footless, TENV, IEEE 841 Motor

Baldor VENCP83581T-41HP1765RPM3PH60HZ143TC0524MTENVF1

<p><b>Specifications: </b><ul><li>Motor Category:-IEEE 841 Motor </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-1.00 hp, 1 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-460 V </li><li> Frame Size:-143TC </li><li> Enclosure Type:-TENV (Totally Enclosed Non-Ventilated) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footless/C-Face Flange </li><li> Full Load Current:-1.50 A </li><li> Full Load Efficiency:-87.50 % </li><li> Amps @ Voltage:-1.5 A @ 460 V </li><li> Volts @ Frequency:-460 V @ 60 Hz </li><li> Shaft Diameter:-0.88 in </li><li> Overall Length (C-Dimension):-12.00 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Cast Iron </li><li> Insulation Class:-F </li><li> IP Rating:-56 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Harmonization Code:-8501.51.6040 </li><li> Weight:-58.00 lbs </li><li> Applications:-Designed for 600V distibution systems for use in Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841- 2009 TEFC motor standards for extreme severe duty service. </li><li> Additional Details:-Meets and/or exceeds all requirements of IEEE Std. 841-2009 including: Totally enclosed cast iron construction, Lower vibration design, Inpro Seals and Positive Lubrication System with oversize bearings on both ends, Stainless Steel nameplates, Terminal lugs on motor leads, Corrosion resistant epoxy finish, NEMA Premium efficiency, Class F insulation with a Class B temperature Rise, 1.15 service factor and 5 year warranty. Final test and vibration results provided with motor. Motors are marked for Div.2/Zone 2, Class I locations and are designed to meet 200° C @ 1.0 Service Factor. Inverter Ready design with speed range and Inverter T. Code nameplate information, see chart on page 51 for specific motor information. </li></ul></p>
