4 Inch Green Poly on Cast Iron Wheel Swivel Caster Set with Roller Bearings SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity4
Attribute012
Attribute024" x 4-1/2"
Attribute035-5/8"
Attribute044" x 2"
Attribute053/8" (hardware not included)
Attribute06-40 degrees F to 180 degrees F
Attribute07, Model, ModelNumber, Model_numberSeries #30
Attribute08Top Plate
Attribute09Swivel caster
Attribute10700
Attribute11Polyurethane on Cast Iron
Attribute12Bright Zinc Plated Finish
Attribute1395A
Attribute142-5/8" x 3-5/8" to 3" x 3"
Attribute15Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Size
AttributeKey05Bolt Size
AttributeKey06Caster Temp. Range
AttributeKey07Series
AttributeKey08Caster Mounting Type
AttributeKey09Type
AttributeKey10Capacity (Lb.)
AttributeKey11Material
AttributeKey12Finish
AttributeKey13Durometer
AttributeKey14Plate Caster Bolt Hole Pattern
AttributeKey15Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4, DisplayNamePlate Casters
DimensionUnitinch
Extra Product Name4 Inch Green Poly on Cast Iron Wheel Swivel Caster Set with Roller Bearings SCC
UPC670533877136
WeightUnitlbs
diameter, length, Decimal_value, Unit_count4.0
extendedLead26
extendedQty-2
height5.625
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty11
MPN, PartNumber, Part_numberSCC-30CS420-PUR-GB-4
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG405438214
tierPrice1186.60
urlhttps://www.zoro.com/service-caster-4-inch-green-poly-on-cast-iron-wheel-swivel-caster-set-with-roller-bearings-scc-scc-30cs420-pur-gb-4/i/G405438214/
width2.0
ASINB07HS55LYP B089T91LQ9
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07HS55LYP
Bullet_pointBrake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
ClassificationId383663011
Color4 Swivel - No Brake - Green
Currency, CurrencyCodeUSD
Externally_assigned_product_identifier, Identifier0670533877136 670533877136
FetchTime1701101705 1704933219
Height1000 1840 359 500 54 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_namePolyurethane on Cast Iron Swivel Top Plate Caster Set of 4 w/4" x 2" Green Wheels - Includes 4 Swivel - 2800 lbs Total Capacity - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-30CS620-PUR-GB-TLB-BSL
Linkhttps://m.media-amazon.com/images/I/31tuwrMyU5L._SL75_.jpg https://m.media-amazon.com/images/I/31tuwrMyU5L.jpg https://m.media-amazon.com/images/I/41m0ierxFyL._SL75_.jpg https://m.media-amazon.com/images/I/41m0ierxFyL.jpg https://m.media-amazon.com/images/I/41ycFjjKiLL._SL75_.jpg https://m.media-amazon.com/images/I/41ycFjjKiLL.jpg https://m.media-amazon.com/images/I/51+Ml9rrhqL.jpg https://m.media-amazon.com/images/I/51A25fUA5QL._SL75_.jpg https://m.media-amazon.com/images/I/51A25fUA5QL.jpg https://m.media-amazon.com/images/I/51GHNt+V6YL.jpg https://m.media-amazon.com/images/I/51jL5S8FEaL._SL75_.jpg https://m.media-amazon.com/images/I/51jL5S8FEaL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61fMaFehJiL.jpg https://m.media-amazon.com/images/I/718vk6tXt3L.jpg https://m.media-amazon.com/images/I/71G2i5madVL.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity1250.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypePolyurethane Tread on Semi Steel Cast Iron Core
Mounting_typePlate Mount
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB089T91LQ9
ProductCategoryId383663011 biss_display_on_website
ProductGroup, WebsiteDisplayGroupNameAutomotive Parts and Accessories
ProductType, ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for a set of four (4) Service Caster Series #30 swivel casters with 4" diameter by 2" wide green polyurethane on cast iron wheels capable of supporting a total weight of 2,800 lbs. (700 lbs. per caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate polyurethane casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2018-09-28T20:47:30.536Z
Rank1925 369816 459 70888
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
Surface_recommendationMulti-Surface
TitleIndustrial & Scientific Plate Casters Polyurethane on Cast Iron Swivel Top Plate Caster Set of 4 w/4" x 2" Green Wheels - Includes 4 Swivel - 2800 lbs Total Capacity - Service Caster Brand
TypeSwivel VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/31tuwrMyU5L._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
Width1000 2.0 2560 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG405438214111 @ $186.60

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

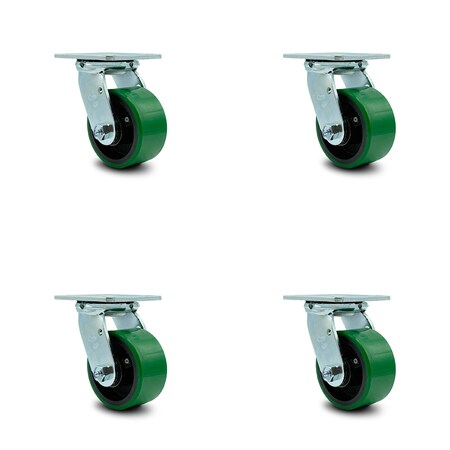

Polyurethane on Cast Iron Swivel Top Plate Caster Set of 4 w/4" x 2" Green Wheels - Includes 4 Swivel - 2800 lbs Total Capacity - Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #30 swivel casters with 4" diameter by 2" wide green polyurethane on cast iron wheels capable of supporting a total weight of 2,800 lbs. (700 lbs. per caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate polyurethane casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupAutomotive Parts and Accessories
Product typeINDUSTRIAL_CASTERS
ModelSeries #30
Part numberSCC-30CS420-PUR-GB-4
Items per pack4
LabelService Caster
ManufacturerService Caster
