021-746-9060-Bison Gear & Engineering-DC Gearmotors

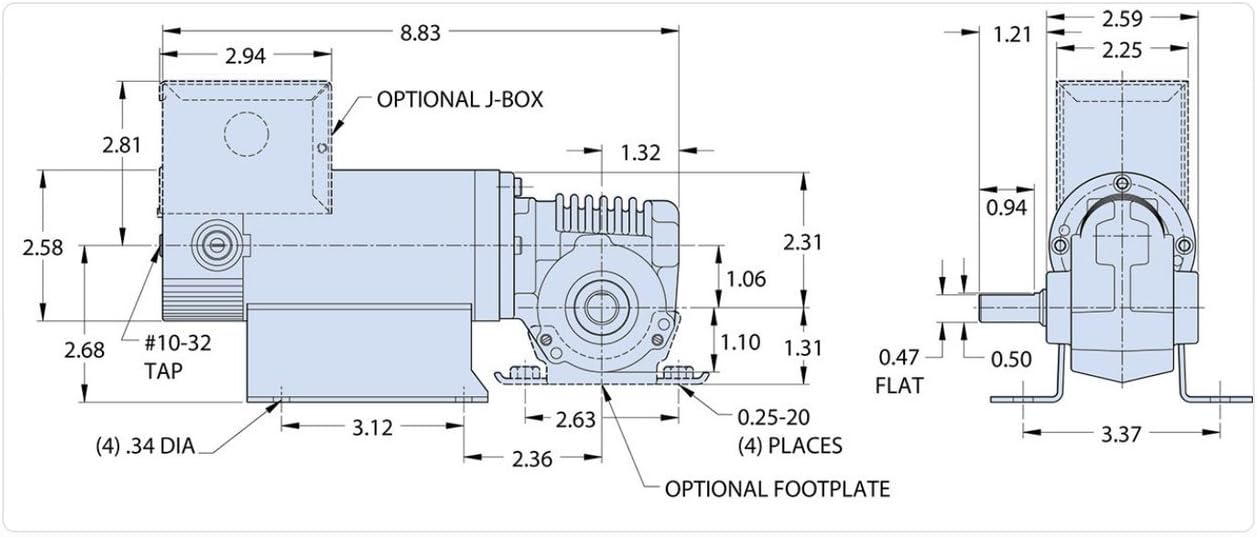

Optional Accessories: P198-100-9111 Junction Box, P125-746-0500 Mounting Foot Plate. P158-200-2600, Replacement Brush Set # P158-200-2600. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Baldor GP232003. Can use with Leeson speed control 174307, 174308.

<p><ul><li>Up to 68 in-lbs continuous torque</li><li>Used in applications for industrial equipment, beverage dispensing, packaging equipment and conveyors</li><li>Available in both right and left shaft orientations</li><li>Made in USA</li></ul></p><p><b>Specifications: </b><ul><li>Motor Type:-Brushed</li><li>Shaft Type:-Right Angle</li><li>Input Horsepower:-1/15 hp</li><li>Motor Supply Voltage:-90 V</li><li>Gear Ratio:-60 :1</li><li>Output rpm:-30.0 rpm</li><li>Full Load Torque:-68 in-lbs</li><li>Full Load Current:-0.77 A</li><li>Enclosure Type:-TENV (Totally Enclosed Non-Ventilated)</li><li>Mounting Type:-Footed</li><li>Insulation Class:-F1</li><li>Standards Met:-UL, CSA, RoHS, CURUS</li><li>Enclosure Abbreviation:-TENV</li><li>IP Rating:-IP43</li><li>Duty / Condition Type:-Continuous Duty</li><li>Stage:-1</li><li>Overhung Load:-224 lbs</li><li>Mounting Footplate:-Included</li><li>Series:-746 DC</li><li>Weight:-7.50 lbs</li><li>Harmonization Code:-8501.31.6000</li></ul></p>
