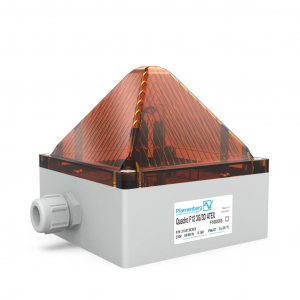

Order 21041804008 by Pfannenberg Quadro F12-3G/3D ATEX Flashing Light - US Mega Store

Pfannenberg . 21041804008

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute06, Attribute30Pfannenberg
Attribute00, Attribute2424 V DC
Attribute01, Attribute2518-30 V
Attribute02, Attribute26360 mA
Attribute03, Attribute27II 3G Ex nR IIC T4 -20 °C = Ta = +45 °C; II 3D Ex tD A22 IP66 T105 °C -20 °C = Ta = +45 °C
Attribute04, Attribute283G (Zone 2); 3D (Zone 22)
Attribute05, Attribute29Guideline 94/9/EG (ATEX 100a)
Attribute07, Attribute31X according to the requirements of prDIN EN 60 079-0, DIN EN 61241-0 (2007) and DIN EN 61241-1 (2005), the equipment is suitable for applications with a low degree of mechanical danger. It must therefore be ensured that the light is mounted with sufficient protection against impacts. A protective cage is not mandatory.
Attribute08, Attribute320.83 Hz = 50 flashes/min
Attribute09, Attribute337.5 J
Attribute10, Attribute3484 cd
Attribute11, Attribute35-20 °C to +45 °C
Attribute12, Attribute36-40 °C to +70 °C
Attribute13, Attribute17, Attribute37, Attribute41100 %
Attribute14, Attribute38IP 66; mounting arbitrary
Attribute15, Attribute39IK08
Attribute16, Attribute40II
Attribute18, Attribute42Light emission still 70 % after 8,000,000 flashes
Attribute19, Attribute43Polycarbonate (PC)
Attribute20, Attribute44Polycarbonate (PC), RAL 7035
Attribute21, Attribute45Cage clamp terminal 0.08-2.5 mm2
Attribute22, Attribute462x M20 sideways (1x blanking plug, 1x cable connection)
Attribute23, Attribute47600 g.
AttributeKey00, AttributeKey24Rated voltage
AttributeKey01, AttributeKey25Operating range
AttributeKey02, AttributeKey26Nominal current consumption
AttributeKey03, AttributeKey27Explosion protection
AttributeKey04, AttributeKey28Category (area of use)
AttributeKey05, AttributeKey29Conformity to standards
AttributeKey06, AttributeKey30Testing body
AttributeKey07, AttributeKey31Special conditions
AttributeKey08, AttributeKey32Flash rate
AttributeKey09, AttributeKey33Flash energy
AttributeKey10, AttributeKey34Light intensity (DIN 5037)*
AttributeKey11, AttributeKey35Operating temperature
AttributeKey12, AttributeKey36Storage temperature
AttributeKey13, AttributeKey37Relative humidity
AttributeKey14, AttributeKey38Protection system (EN 60529)
AttributeKey15, AttributeKey39Impact resistance (EN 50102)
AttributeKey16, AttributeKey40Protection class
AttributeKey17, AttributeKey41Duty cycle
AttributeKey18, AttributeKey42Service life of the light source
AttributeKey19, AttributeKey43Lens
AttributeKey20, AttributeKey44Housing
AttributeKey21, AttributeKey45Connecting terminals
AttributeKey22, AttributeKey46Cable entry
AttributeKey23, AttributeKey47, Weight_AttribWeight
CategoryL1Safety
CategoryL2Emergency Lights & Sirens
CategoryL3Pfannenberg 21041804008
ConditionNEW
Extra Product NameOrder 21041804008 by Pfannenberg Quadro F12-3G/3D ATEX Flashing Light - US Mega Store
Weight600
WeightUnitg
moq, multiple, tierMinQty11
MPN, SKU21041804008
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Pfannenberg, 21041804008, Quadro F12-3G/3D ATEX Flashing Light, 24 V DC, Amber </strong> </p> <p><strong>Features: </strong> </p> <ul><li>For use in potentially explosive areas in Zone 2 as per EN 60079-10 and Zone 22 as per EN 61241-10. </li> <li>The requirements of the EN 60079-0, EN 60079-15, EN 61241-0, EN 61241-0 (2007) and EN 61241-1 (2005) standards are fulfilled. </li> <li>Usable for gases in the temperature classes T1, T2, T3 and T4, as well as for non-conductive dusts, provided that the surface temperature of the equipment does not exceed +105 &deg;C. </li> </ul> <p>The Quadro F12 3G/3D flashing light is designed for tough demands under industrial conditions and is usable as a visual alarm. The flashing light, which is suitable for use both indoors and out, generates bright light impulses with a high attention-drawing effect. </p>
tierPrice1699

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com210418040081-211 @ $699.00
heavydutydepot.com210418040081-211 @ $699.00
Galco21041804008-PFNG111 @ $699.00
MRO Supply2487567111 @ $699.00
Radwell2104180400811
