151-01416

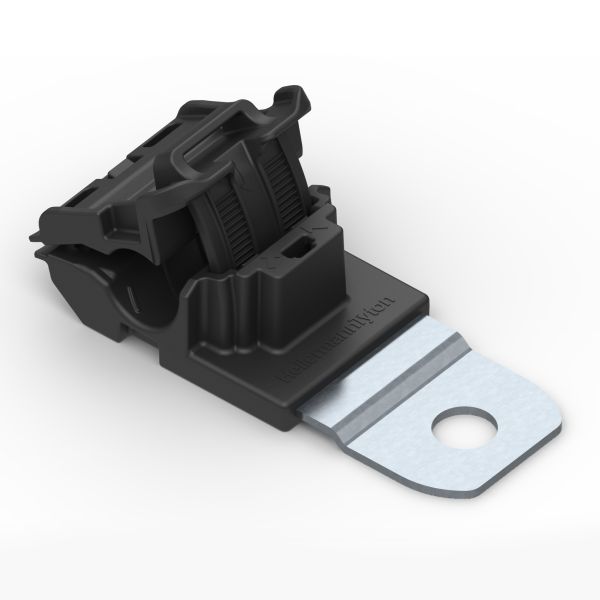

Ratchet P-Clamp A-Series for bundle diameters from 6.2 mm to 13.7 mm One-piece ratchet closure design allows for easy installation during pre- or final assembly Multiple configurations handle a wide range of diameters and applications, reducing part inventory Clamp interior is designed to guide and center bundle to reduce pinching Easy release feature allows for quick adjustments and maintenance Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray Show more Show less On my watchlist Add to watchlist Go to watchlist > Please log in with your HellermannTyton account to use your personal watchlist. Login / Register P-clamp, Ø8.31 mm, Dmin=6.2mm, Dmax=13.7mm, 180°, short, black, 300pc. Available in the following online shops Zum Shop Hint: You can use the watch list to collectively request the availability of products stored there. On my watchlist Add to watchlist Go to watchlist > Please log in with your HellermannTyton account to use your personal watchlist. Login / Register Downloads More products in this product group: Ratchet P-Clamp > Base Data Product Dimensions Downloads Base Data Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations. Colour Black (BK) Fixation Method Screw Mounting Key product features for multiple routing, vibration absorbing, removable, releasable Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN) Mounting Screw Type M8 Screw Pack Cont. 300pc. Package Content packed in carton PART DESCRIPTION RCA180SM8-PA66HIRHSUV/ST/ZN-BK Product Family For bundle diameters from 6.2 mm to 13.7 mm, A-Series Product Group Ratchet P-Clamp Short Description Fixing element 116.2x34.9 mm, bundle diameter: 6.2-13.7 mm, M8, black Variant Short Product Dimensions Angle 180° Bundle Diameter max (metric) 13.7mm Bundle ∅ 6.2-13.7mm Bundle ∅ min. 6.2mm Fixing Hole Centres (F) 1.99" Fixing Hole Centres (F) 50.5mm for Hole ∅ (FH) 8.31 mm Length (L) 116.2mm Length (L2) 83.1mm Min.Tensile Strength 445.0N Strap Width max. (G) 0.52" Strap Width max. (G) 13.2mm Stud ∅ M8 Weight/Unit 0.028789kg Width (W) 34.9mm Width (W2) 30.0mm Downloads Catalogue page(January 2022) Download All catalogue pages More information Technical drawing 15-0341-102-CSU Download Rachet P-Clamp Brochure Download Specifications Logistics and Packaging More Information Specifications CE Certification No CSA Certified No ELV compliant (Article 4 - 2) YES Flammability UL 94 HB Halogen-free Yes Hazardous good No Operating Temperature -40 °C to +105 °C Plenum Rating AH-2 Specifications Stamping Material Steel (ST) UL Listed (US and Canada) Yes UL Recognized (US and Canada) No UL-File Number E64139 UV-Stabilised (Yes/No) Yes Logistics and Packaging Country of Origin US Customs Number 39269097 GTIN-13 / EAN 4031026539409 Order Unit pcs. Packaging 3 - Height (m) 0.219075m Packaging 3 - Length (m) 0.606425m Packaging 3 - Qty 300 Packaging 3 - Type box Packaging 3 - Volume (m³) 0.0529m³ Packaging 3 - Weight (kg) 9.4067kg Packaging 3 - Width (m) 0.3984625m Packaging 4 - Height (m) 1.239m Packaging 4 - Length (m) 1.2m Packaging 4 - Qty 4500 Packaging 4 - Type pallet Packaging 4 - Volume (m³) 1.189m³ Packaging 4 - Weight (kg) 162.101kg Packaging 4 - Width (m) 0.8m More Information ETIM 7.0 Key EC000127 ETIM 8.0 Key EC000127 UNSPSC Key 39121702
