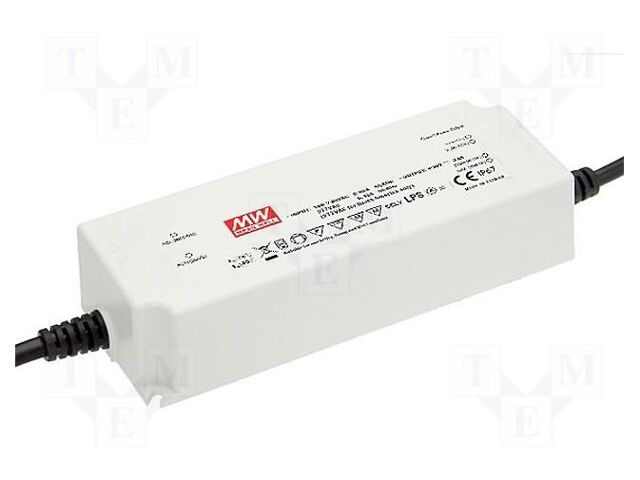

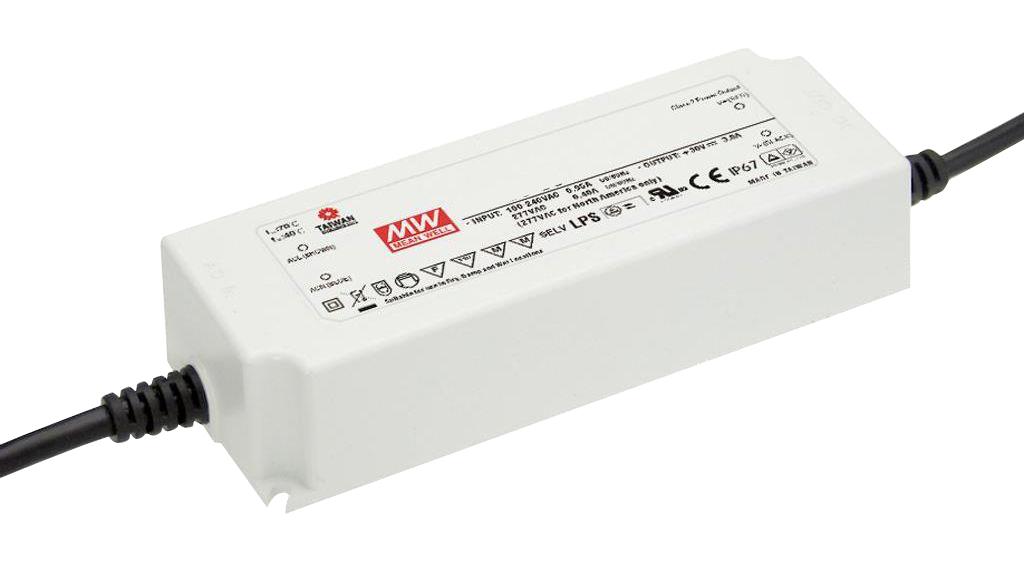

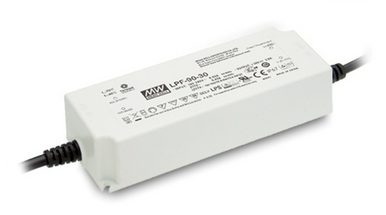

Mean Well Led Driver, Constant Current/volt, 90W Rohs Compliant: Yes - LPF-90-20

Mean Well's LPF series is a unique AC/DC LED driver that actually offers two output modes: constant voltage and constant current. The LPF driver series is offered in 16-90 Watt sizes, making it a great option for a variety of lighting applications. These drivers operate from universal line voltage, 90~305VAC, and offers models with different rated voltage between 12 and 54V. Like so many other Mean Well LED products, this driver has excellent effiency around 90% so it can operate with a fanless design in higher temperatures. The whole series is IP67 rated, therefore is suitable for work in dry, damp, or even wet locations.

LPF-90 series is a 90W AC/DC LED driver featuring the dual modes constant voltage and constant current output.LPF-90 operates from 90¡«305VAC and offers models with different rated voltage ranging between 15V and 54V.Thanks to the efficiency up to 91%,with the fanless design,the entire series is able to operatefor -40¡ãC~+70¡ãC case temperature underfree air convection.Features: Constant Voltage+ Constant Current mode output | Plastic housing with Class II design | Built-in active PFC function | Class 2 power unit | Fully encapsulated with IP67 level | Typical lifetime>50000 hours | 5 years warranty

The LPF-90 Series is a 90W AC DC LED power supply with the main features of a constant current output and constant voltage output design. This series operates at input voltages 90 - 305 VAC, and offers a wide range of models with output rated voltages ranging from 15 V to 54 V. With up to · Constant current mode + Constant pressure mode output · Plastic case Classure II design · Built-in active PFC function · Power ClassChest 2 · Fully enclosed plastic housing meets IP67 rating · Life >50,000 hours · 5 91% conversion efficiency per year · Fanless design can work in natural air cooling temperature temperature ~ 70℃ machine Case temperature range The whole line of products is suitable for dry, wet and rainy conditions
