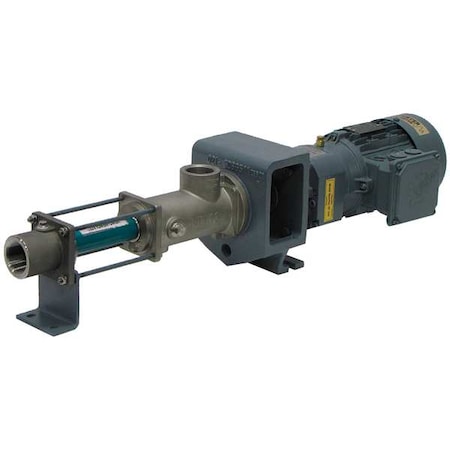

Metering Pump,1/2 HP,230/460VDC,2.2 gph

180 psi psi Progressive Cavity Metering Pump, 604 RPM Max. RPM, 230/460V DC This listing is for each. Technical Specification Item Progressive Cavity Metering Pump Min. RPM 120 Max. RPM 604 RPM Required HP @ Lower RPM 1/2 hp Required HP @ Higher RPM 1/2 hp Voltage 230/460V DC Hz 60 Max. Viscosity 1000 cPs Particle Size 2 mm Min. Pressure (PSI) 0 Max. Pressure (PSI) 180 psi Flow Rate @ Min. RPM and 0 PSI 0.4 gph Flow Rate @ Max. RPM and 0 PSI 2.2 gph Flow Rate @ Min. RPM and 90 PSI 0.4 gph Flow Rate @ Max. RPM and 90 PSI 2.2 gph Flow Rate @ Min. RPM and 180 PSI 0.4 gph Flow Rate @ Max. RPM and 180 PSI 2.2 gph Min. Fluid Temp. 23 Degrees F Max. Fluid Temp. 130 Degrees F Inlet/Outlet (In.) 1-1/4 NPT Seal Type Mechanical Seal Material Stainless Steel, Viton Housing Material Stainless Steel Length (In.) 32 in Width (In.) 7 in Height (In.) 7 in Series NM Application Metering Includes Manual This item is restricted for international item is restricted for conveying or dispensing water for potable use (human consumption) in states that require 3rd party certification of compliance with the “Safe Water Drinking Act” (CA, LA, MD, VT).
