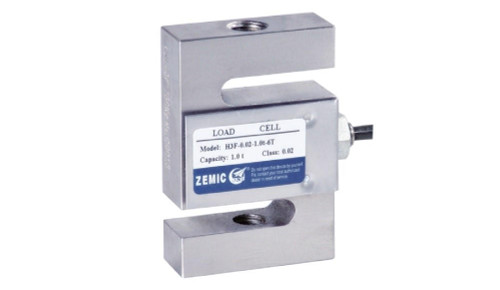

Zemic H3F-N5-2.5K-6YT 2500 lb S-Beam Load Cell, NTEP - Scales Plus

Zemic . H3F-N5-2.5K-6YT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00Zemic
Attribute01, MPN, SKUH3F-N5-2.5K-6YT
Attribute02Yes
Attribute0306-099A1
Attribute042500 lb
Attribute05150% capacity
Attribute06300% capacity
Attribute073"
Attribute082"
Attribute091.25"
Attribute101/2-20UNF-2B
Attribute11alloy steel
Attribute12nickel plated
Attribute13Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
Attribute145-12 VDC (maximum of 18 V)
Attribute153 mV/V
Attribute16351 (+/- 2) ohms
Attribute17350 (+/- 3.5) ohms
Attribute1814??F to 104??F (-10??C to 40??C)
Attribute19-31?? F to 158?? F / -35??C to 70??C
Attribute20IP67
Attribute215000 megohms
Attribute2220 ft
Attribute23????0.2in
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02NTEP
AttributeKey03NTEP CC
AttributeKey04Capacity
AttributeKey05Safe Overload
AttributeKey06Ultimate Overload
AttributeKey07, height_AttribHeight
AttributeKey08, length_AttribLength
AttributeKey09, width_AttribWidth
AttributeKey10Hole Threading
AttributeKey11Construction
AttributeKey12Finish
AttributeKey13Cable Color Code
AttributeKey14Rated Excitation
AttributeKey15Full Scale Output
AttributeKey16Output Resistance
AttributeKey17Input Resistance
AttributeKey18Compensated Temperature Range
AttributeKey19Operating Temperature Range
AttributeKey20IP Rating
AttributeKey21Insulation Resistance
AttributeKey22Cable Length
AttributeKey23Cable Diameter
DimensionUnitinch
Extra Product NameZemic H3F-N5-2.5K-6YT 2500 lb S-Beam Load Cell, NTEP - Scales Plus
height3.0
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length2.0
moq, multiple, tierMinQty11
qtyInStock0
snippetHave questions about the Zemic H3F-N5-2.5K-6YT ? Contact the trained experts at Scales Plus for all your product support needs!
tierPrice1222
width1.25

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comH3F-N5-2.5K-6YT111 @ $222.00
