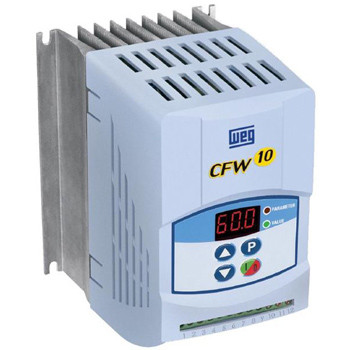

WEG VFD - CFW INVERTER USCFW100073S2024ESZ

In addition to a very small, easily mounted package; simplified keypad with a bright LED readout, complete diagnostics, and fully programmable I/O, the WEG CFW10 drive series controls 3-phase AC motors with a single phase AC input. <> Same programming as all other great WEG VFD's <> V/Hz control <> IP20 finger safe enclosure <> Single Phase 110-127V input voltage up to 1 HP <> Single Phase 200–240V input voltage up to 3 HP <> 150% current overload capacity <> 2.5-15 kHz adjustable switching frequency <> Four isolated programmable digital inputs (12vdc) <> Programmable relay output (250vac 0.5A/125vac 1.0A or 30vdc 2.0A) <> One isolated programmable analog input (0-10V 0/4-20mA) <> Diagnostic features: Over current, motor overload, drive over temperature, output short circuit, DC bus over and under voltage and external fault <> Control features: Linear and S-Ramp acceleration and deceleration, local / remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, minimum and maximum adjustable frequency limits, adjustable output current limit, JOG <> Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status <> Ambient: 122°F (50°C), 3300 ft (1000 m) altitude, 90% humidity, non-condensing <> 18-MONTH WARRANTY <> 36 months available with matched WEG motors.
