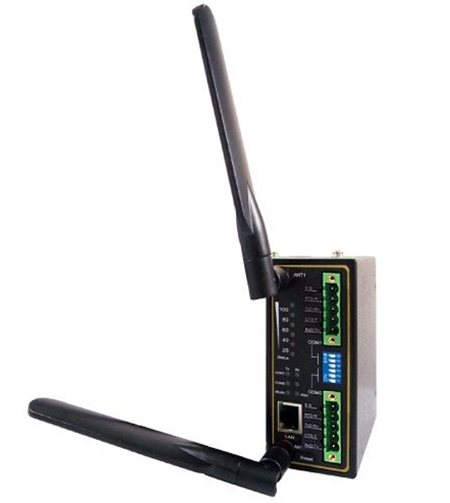

Mencom E45WSS-2TB5-IS industrial wireless serial device server has two RS-422/485 terminal blocks, one 10/100/1000 RJ45 port, and 2KV isolation with two antennas.

Mencom . E45WSS-2TB5-IS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMencom
Attribute00(1) RJ45
Attribute01, Voltage9-48V DC
Attribute02Approx. 5.85W (max)
Attribute03-10 C to 60 C (14 F to 140 F)
Attribute04-40 C to 85 C (-40 F to 185 F)
Attribute055-95% RH (non-condensing)
Attribute06Serial Manager, Web UI
Attribute07Windows/ Linux redirection software
Attribute08Up to 4 ranges of IPs
Attribute09Atheros AR9382
Attribute102T2R MIMO (2 x 2 with MCS 0-15)
Attribute11802.11a, 802.11b, 802.11g, and 802.11n
Attribute123/5 dBi antenna design, SMA(R) Female connector
Attribute132.4Ghz (2412-2462(20Mhz)/2422-2452(40Mhz)), 5Ghz (5180-5240, 5745-5825(20Mhz)/5190-5230, 5755-5795(40Mhz))
Attribute14110 - 921600Kbps
Attribute15None, Odd, Even, Space, Mark
Attribute165, 6, 7, 8
Attribute171, 2
Attribute18None, Xon/Xoff, RTS/CTS
Attribute19UL60950-1/CB, EN60950-1, CNS 14336
Attribute20EN 301489-1 VV1.9.2, EN301489-17 V2.2.2 (Class A), FCC 15B (Class A), CNS 13438
Attribute21FCC 15C 15.247, FCC 15E 15.407, EN 301893 V1.7.1, EN 300328 VV1.8.1, NCC LP00002
Attribute22IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Attribute23IEC 60068-2-27
Attribute24IEC 60068-2-32
Attribute25IEC 60068-2-6
Attribute26Yes
Attribute2722 years (MIL-HDBK-217F)
Attribute28IP 30
AttributeKey00Connection
AttributeKey01Input Voltage
AttributeKey02Power Consumption
AttributeKey03Operating Temperature
AttributeKey04Storage Temperature
AttributeKey05Humidity
AttributeKey06Configuration
AttributeKey07Virtual COM
AttributeKey08UDP
AttributeKey09Wireless PCI-e Module
AttributeKey10Tx / Rx
AttributeKey11Standard Conformance
AttributeKey12Antenna
AttributeKey13Operating Frequency
AttributeKey14Baud Rate
AttributeKey15Parity
AttributeKey16Data Bits
AttributeKey17Stop Bits
AttributeKey18Flow Control
AttributeKey19Safety
AttributeKey20EMC
AttributeKey21Radio
AttributeKey22EMS
AttributeKey23Shock
AttributeKey24Drop
AttributeKey25Vibration
AttributeKey26RoHS
AttributeKey27MTBF
AttributeKey28IP Protection
Weight1.1
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUE45WSS-2TB5-IS
qtyInStock0
snippetMencom E45WSS-2TB5-IS industrial wireless serial device server has two RS-422/485 terminal blocks, one 10/100/1000 RJ45 port, and 2KV isolation with two antennas.
tierPrice1630.86

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Products For AutomationE45WSS-2TB5-IS111 @ $630.86
GalcoE45WSS-2TB5-IS11
