Kelch

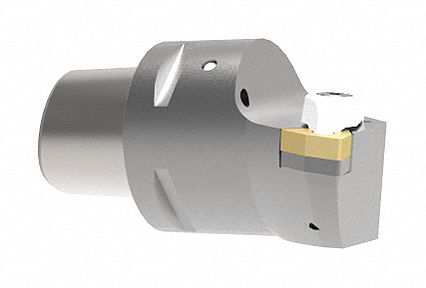

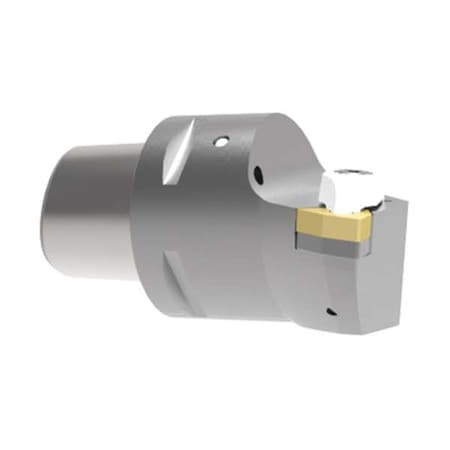

Technical Specification Item Indexable Cutting Head Unit Insert Style WNMG Insert Shape Trigon Approach Angle 95 Degrees Overall Length 90mm Shank Width 35mm Coolant Fed Coolant Through Cutting Direction Right Hand Rake WNMG 080408 Cutting Application Turning Head Length 60mm Includes Clamping Unit, Base Plate Insert Clearance Angle 0 Degrees Insert Cutting Edge Length 8mm Insert Holding Type Top and Hole Clamping Insert Inscribed Circle 1/2 Insert Size 080408 Shank Height 60mm Standards ISO 26623-1 This listing is for each. For Use With : Cutting Tools Item : Indexable Cutting Head Unit Rake : WNMG 080408 Type : PSK 50 Torx Wrench : T-20 Style : DWLNR-35060-08 Clamp : 581.001 Includes : Clamping Unit, Base Plate Cutting Direction : Right Hand Overall Length : 90.00mm Shank Width : 35mm Insert Shape : Trigon Standards : ISO 26623-1 Insert Size : 080408 Head Length : 60.00mm Insert Clearance Angle : 0 Degrees Coolant Fed : Coolant Through Insert Style : WNMG Shank Height : 60mm Cutting Application : Turning Insert Holding Type : Top and Hole Clamping Approach Angle : 95 Degrees Insert Inscribed Circle : 1/2 in Insert Cutting Edge Length : 8.00mm Country of Origin (subject to change) : Germany
