4030-A-AL - Reducing Type A Adapter - Cam & Groove - Dixon Valve

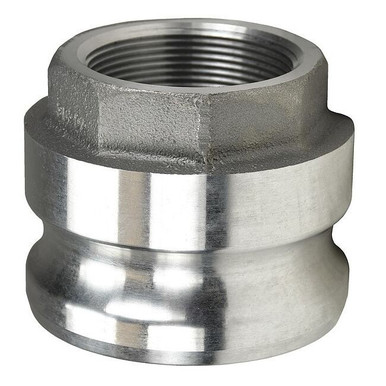

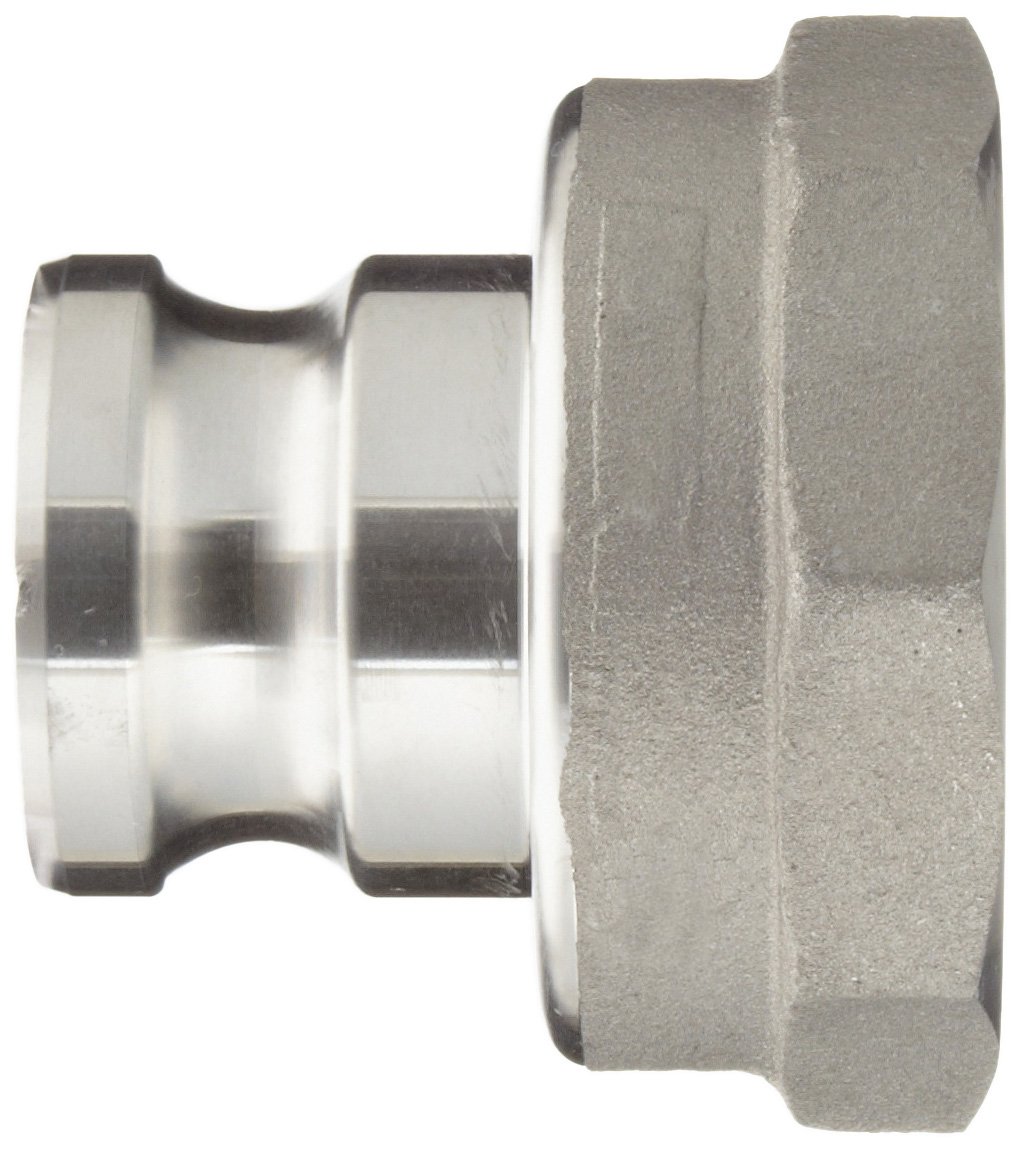

4" Male Adapter x 3" Fem NPT 356T6 Alum

WARNING : Under no circumstances should cam and groove couplings be used for compressed air or steam service.<br><br>Dixon Reducing Cam and Groove Global Type A Adapters are Male Cam Adapter x Female NPT fittings for transitioning to a camlock connection while changing sizes. These Type A camlock fittings are available from 2" up to 4" in 356T6 Aluminum or 316 Investment Cast Stainless Steel. The pressure rating for these fittings is based on the seal of the mating part.<br><br>Note: The 4" x 3" (4030-A-SS) stainless steel fitting is produced as a welded fabrication.<br><br>Dixon camlock fittings are all precision machined to rigid tolerances and designed to be interchangeable with all products produced to Commercial Item Description A-A-59326B. However, no standard exists for the 1/2" and 8" fittings and generally these will not interchange with other manufacturers. All couplers, regardless of casting material, utilize durable stainless steel cam arm pins that will not rust or bind. The couplers also feature a recess to hold the gasket firmly in place, ensuring proper placement and eliminating any chance for leakage.<br><br>Cam and Groove fittings are designed for use as a hose coupling that allows quick connect capabilities to increase operator productivity. To secure a connection, simply slide the adapter into the coupler, and with normal hand pressure press the cam levers down. Uncoupling is just as simple, just lift the cam arms and remove the adapter. Dixon also offers Dust Plugs and Dust Caps to keep hoses and process tubes clean while fittings are disconnected.<br><br>Dixon Cam and Groove Fittings Features:<br><br>- Precision Machined<br>- Rigid Tolerances<br>- Recessed Gasket Slots<br>- Buna N Seal Standard (alternates available)<br>- Stainless Steel Cam Arm Pins<br>- Interchangeable with most manufacturers

<p><strong>Dixon, 4030-A-AL, 4&quot; Cam & Groove Reducing Type A Aluminum Adapter x 3&quot; Female NPT</strong></p><p><strong>Applications</strong></p><ul><li>Designed for use with liquids</li></ul><p><strong>Specifications</strong></p><ul><li>Produced to interchange with all product produced to Commercial Item Description A-A-59326D</li></ul><p><strong>Features</strong></p><ul><li>Precision machined to rigid tolerances</li></ul><p><strong>How it works</strong></p><ul><li>To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.</li><li>Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.</li></ul><p><strong>Note</strong></p><ul><li>In reducing couplings, the cam and groove end is the first size in the part number.</li></ul><p><strong>Safety notes</strong></p><ul><li>Under no circumstances should cam and groove couplings be used for compressed air or steam service!</li><li>Pressure rating is based on the seal of the mating part</li><li>Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70&#176;F / 21&#176;C with a standard seal installed.</li></ul>
