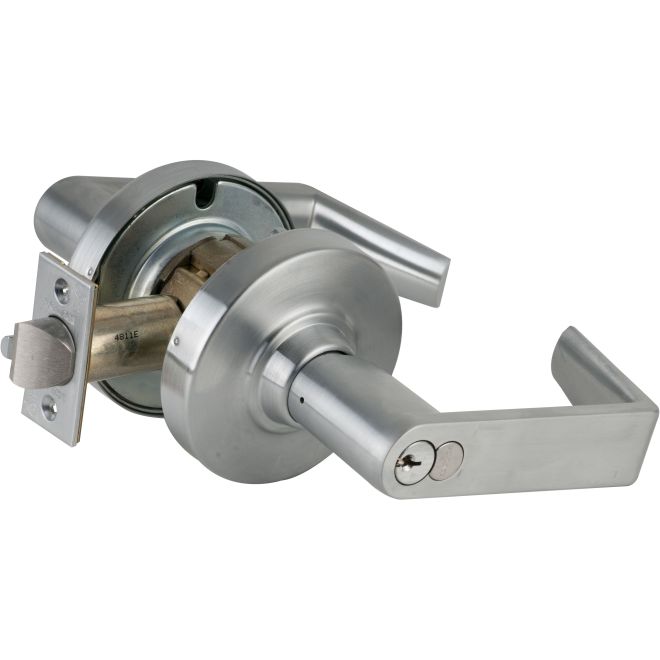

Schlage Commercial ND96RDRHO626 ND Series Vandlgard Storeroom Large Format Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish

Schlage Commercial . ND96RDRHO626

Gallery

Attributes

Brand name, Manufacturer nameSchlage Commercial
ManufacturerSchlage Commercial Schlage
Attribute00, Attribute07, Attribute23, Attribute52, colorSatin Chrome
Attribute012-3/4 Inch
Attribute02ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Attribute03Rhodes
Attribute0496-Vandlgard Storeroom
Attribute05Reversible
Attribute06R-FSIC Core
Attribute08RHO-Rhodes
Attribute09SCHL-C-6-1
Attribute10Round Rose
Attribute11SCHL-C-6-3
Attribute12Cylindrical Lock
Attribute13ANSI/BHMA Grade 1
Attribute14Schlage C
Attribute152.9375
Attribute16, length4.5625
Attribute171 5/8" - 2 1/8"
Attribute182.1250
Attribute1913-247
Attribute2010-025
Attribute21, AdultProduct, Autographed, Batteries_included, Memorabilia, TradeInEligibleFalse
Attribute22CIADM
Attribute24626/US26D
Attribute253 Hours {A}
Attribute26Mexico
Attribute274.75
Attribute289.5
Attribute29372.28125
Attribute308.25
Attribute3110 year mechanical
Attribute32Swinging
Attribute33Manual
Attribute34Healthcare; Education; Government; Office; Retail; Other Commercial Applications
Attribute35Lever
Attribute363-7/16 Inch
Attribute371/2 Inch
Attribute38F86
Attribute39Deadlatch
Attribute402.125 Inch
Attribute41ANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Attribute42Full Size Interchangeable Core
Attribute43Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Attribute441-1/8" x 2-1/4"
Attribute45Storeroom
Attribute461-3/16 Inch
Attribute472-15/16 Inch
Attribute48Pressure Cast Zinc (Lever)
Attribute49Heavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Attribute50ANSI Strike
Attribute51YES
Attribute53Allegion
Attribute544.5625 Inch
Attribute55Square
Attribute564-9/16 Inch
Attribute57Stainless Steel
Attribute58Straight Return Lever
Attribute59ND96RD-RHO-626
Attribute601-1/4" x 4-7/8"
AttributeKey00Finish
AttributeKey01Backset
AttributeKey02Strike
AttributeKey03Design
AttributeKey04Function
AttributeKey05Handing
AttributeKey06Cylinder Type
AttributeKey07Finish Description
AttributeKey08Lever Style
AttributeKey09Keyblank Grouping
AttributeKey10Rose/Escutcheon Trim
AttributeKey11Control Keyblank Grouping
AttributeKey12Product Type
AttributeKey13Grade
AttributeKey14Keyway
AttributeKey15Projection
AttributeKey16Lever Length
AttributeKey17Door Thickness
AttributeKey18Bore Size
AttributeKey19Latch Number
AttributeKey20Strike Number
AttributeKey21ADA Approved
AttributeKey22Keying Charges
AttributeKey23Color
AttributeKey24Color Code
AttributeKey25Fire Rated
AttributeKey26Origin
AttributeKey27Package Height
AttributeKey28Package Length
AttributeKey29Package Volume
AttributeKey30Package Width
AttributeKey31Warranty
AttributeKey32Aluminium Bottle Contents
AttributeKey33ProductType
AttributeKey34Application
AttributeKey35Handle Type
AttributeKey36, height_Attrib, width_AttribRose Diameter
AttributeKey37Latch Throw
AttributeKey38ANSI Function
AttributeKey39Latch Type
AttributeKey40Door Cross Bore
AttributeKey41Standards
AttributeKey42Cylinder Type Used
AttributeKey43Function Description
AttributeKey44Front Size
AttributeKey45Function Family
AttributeKey46Strike Lip
AttributeKey47Product Projection
AttributeKey48Trim Material
AttributeKey49Features
AttributeKey50Strike Type
AttributeKey51ADA Compliant
AttributeKey52Finish Family
AttributeKey53Manufacturer Parent
AttributeKey54, length_AttribLever Length-Inches
AttributeKey55Latch Corner
AttributeKey56Knob/Lever Size
AttributeKey57Latch Bolt Material
AttributeKey58Lever Style Family
AttributeKey59Sub-Series
AttributeKey60Strike Size
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND96RDRHO626 ND Series Vandlgard Storeroom Large Format Rhodes with 13-247 Latch 10-025 Strike Satin Chrome Finish
atoms, moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
diameter, height, width3.4375
MPN, SKU, Part Number, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpnsND96RDRHO626
qtyInStock-2
qtySourceFieldMap
snippetND SeriesCylindrical Locks<p>ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles.</p><p>All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.</p>Product Specifications: Material:<ul><li>Modular design of zinc and steel components plated for corrosion protection</li></ul> Door thickness:<ul><li>Standard: 1 5/8" to 2 1/8"</li></ul> Handing:<ul><li>Non-Handed</li></ul> Levers:<ul><li>Standard: Nine designs, pressure cast zinc, plated to match product finish specification</li></ul> Roses:<ul><li>Wrought brass, bronze, or zinc, plated to match product finish specification</li></ul> Finishes:<ul><li>10 available</li><li>(605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e)</li></ul> Backset:<ul><li>Standard: 2 3/4"</li></ul> Faceplate:<ul><li>Standard : 1 1/8" x 2 1/4"</li></ul> Bolt:<ul><li>Standard : 1/2" throw via Oil Impregnated Stainless Steel</li></ul> Strike:<ul><li>Standard: ANSI Curved Lip: 1 1/4" x 4 7/8" x 1 3/16"</li></ul> Keying - Formats:<ul><li>Standard: 3 Schlage</li><li>(KIL or FSIC or SFIC)</li></ul> Keying - Access Security:<ul><li>Standard: 6-Pin Patented Everest 29</li></ul> Warranty:<ul><li>10 years mechanical, 1 year wired electrified</li></ul>Certifications: ANSI/BHMA:<ul><li>All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices</li></ul> ICC:<ul><li>Complies with ICC A117.1 Accessible and Usable Buildings and Facilities</li></ul> UL/cUL:<ul><li>All locks 3 hour A label single firedoor 4'0" x 10'0"</li><li>pair doors 3 hour firedoor 8'0" x 8'0" with 3/4" latch option</li><li>pair doors 90 minute fire 8'0" x 10'0" with 3/4" latch option</li></ul> CA Fire Code:<ul><li>All levers with a return to door of 1/2"</li><li>(64 mm) or less comply<br>(Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk)</li></ul> FL Building Code:<ul><li>Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes</li></ul> Federal:<ul><li>Meets FF-H-106C Series 161</li></ul>
tierPrice1689.55
Product GroupBISS
ASIN, AsinB00L17CRIE
Amount470.00
BindingMisc.
BrandSchlage Lock Company Schlage commercial
Bullet_pointDoor range 1-5/8" - 2-1/8" for all functions except ND85; 1 3/4 "- 2" for ND85 Lock less Full Size IC cylinder (23-030) Tested to at least 3 times the 1,000,000-cycle ANSI Grade 1 requirement UL Listed for 3-hour fire door Vandlgard Clutching Lever
CatIndustrial & Scientific
CatId, CatTree16310091
Chemical_nameslead_and_lead_compounds
ClassificationId573760011
ColorChrome satin chrome
Compliance_typechemical
Currency, CurrencyCodeUSD
DisplayNameDoor Levers
FeatureUL Listed for 3-hour fire door
FetchTime1625847203 1651485095 1677717317 1689877035 1690644795
Height1200 24.3 4.2125984209 4.5 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_nameSchlage Commercial ND96RDRHO626 ND Series Grade 1 Cylindrical Lock, Storeroom Vandlguard, Rhodes Lever Design, Satin Chrome Finish
Item_package_weight2.37
Item_shapeRectangular
Item_type_keyworddoor-levers
Item_weight1.5
Keyword300126D41
Label, Man, Publisher, StudioSchlage
Length10.7 9.5 9.5669291241
Linkhttps://m.media-amazon.com/images/I/41XL-MXFh7L._SL75_.jpg https://m.media-amazon.com/images/I/41XL-MXFh7L.jpg https://m.media-amazon.com/images/I/51R8aez5VvL.jpg https://www.amazon.com/gp/bestsellers/hi https://www.amazon.com/gp/bestsellers/hi/573760011
List_price470.0
Marketplace_idATVPDKIKX0DER
MaterialBrass Bronze Steel Zinc
MaterialTypeAlloy Steel Brass Bronze Steel Zinc
NameCOLOR
ProductCategoryId573760011 home_improvement_display_on_website
ProductGroupBISS BISS Basic
ProductTypeMECHANICAL_COMPONENTS
ProductTypeNameLOCK MECHANICAL_COMPONENTS
Product_site_launch_date2011-09-17T13:30:00.173Z
Rank12034 2066639 2260327 2273081 3858599 6239 6981 7131
TitleDoor Levers Schlage Commercial ND96RDRHO626 ND Series Grade 1 Cylindrical Lock, Storeroom Vandlguard, Rhodes Lever Design, Satin Chrome Finish Tools & Home Improvement
TypeCount
URLhttps://m.media-amazon.com/images/I/41XL-MXFh7L._SL75_.jpg
Unitcentimeters inches kilograms pounds
Unit_count1.0
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic
Weight1.5 1.50 4.5 5.2249556094
Width1200 20.6 500 75 8 8.1102362122

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareND96RDRHO6261-211 @ $689.55
thebuilderssupply.comSCH_ND96RDRHO62615411 @ $508.14
ZoroG2017558111 @ $473.88
Supply ChimpSCSCHND96RDRHO6261-211 @ $403.82

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

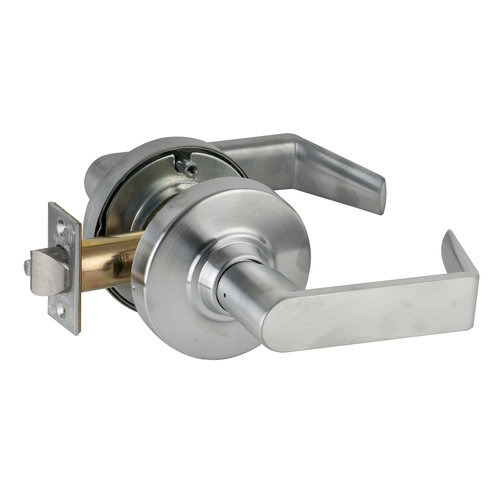

Schlage Commercial ND96RDRHO626 ND Series Grade 1 Cylindrical Lock, Storeroom Vandlguard, Rhodes Lever Design, Satin Chrome Finish
Brand: Schlage Lock Company
Details
  • UL Listed for 3-hour fire door
  • Lock less Full Size IC cylinder (23-030)
  • Door range 1-5/8" - 2-1/8" for all functions except ND85; 1 3/4 "- 2" for ND85
  • Vandlgard Clutching Lever
  • Tested to at least 3 times the 1,000,000-cycle ANSI Grade 1 requirement
Listing
BindingMisc.
Product groupBISS Basic
Product typeLOCK
ModelND96RDRHO626
Part numberND96RDRHO626
Items per pack1
LabelSchlage
ManufacturerSchlage
Catalog
FeatureUL Listed for 3-hour fire door
CategoryIndustrial & Scientific
MPNND96RDRHO626
Product groupBISS
Product typeMECHANICAL_COMPONENTS
ManufacturerSchlage
