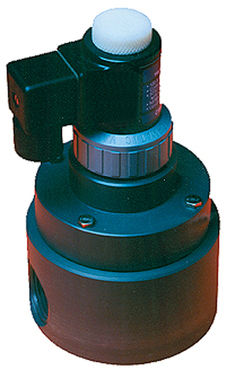

Plast-o-matic PS300VW11-PV | Solenoid Valve, 2-Way, 3 Inch Size, Normally Closed, PVC | 11K473 | Raptor Supplies Worldwide

With an innovative Fail Dry design that provides a visual warning of seal malfunction, this PLAST-O-MATIC solenoid valve is suitable for applications where high backpressures are required such as in controlling flow to spray nozzles and in high-pressure chemical injections. Model has a rugged thermoplastic body that resists corrosion, and has no wetted metal parts. The bellows barrier-type dynamic seal helps prevent fugitive emissions from leaking into the atmosphere. This listing is for each. Technical Specification Item Solenoid Valve Solenoid Valve Product Group Plastic Solenoid Valve Valve Ways and Positions 2-Way/2-Position Valve Configuration Normally Closed Media - Valves Acids, Bases, Brewery Processes, Chlorine, Deionized Water, Reverse Osmosis Water, Sodium Pipe Size - Valves 3 in Min. Operating Pressure Differential 5 psi Environmental Rating - Valves Indoor, Outdoor Voltage 120V AC Coefficient of Volume 80.0 Body Material - Valves PVC Coil Insulation Class F Orifice Dia. 3 in Safe Working Water Pressure 140 psi Hz 60 Operation Pilot Operated Coil Enclosure Watertight and Dust Tight Electrical Connections 1/2 in Conduit NEMA Rating 4X Overall Length 9 in Max. Fluid Temp. 140 Degrees F Overall Width 9 in Overall Height 11 7/8 in Application For Use in Severe Service Applications with Most Liquids, Including Acids, Caustics, Chlorine Solutions, Solvents and Ultrapure Fluids. This item is manufactured or supplied by a small, minority, woman, veteran or disadvantaged business.
