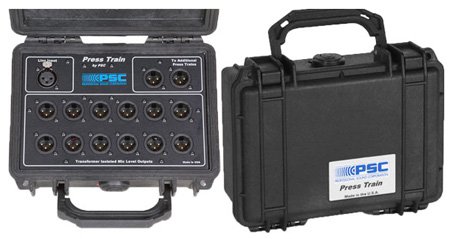

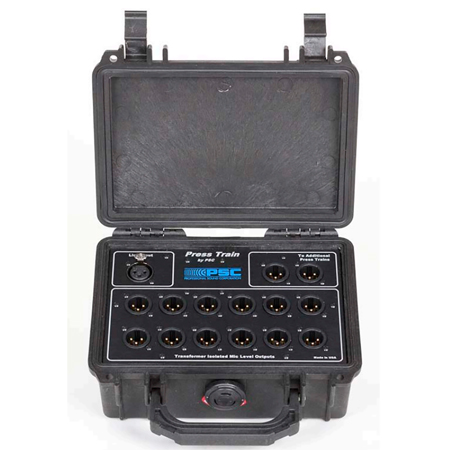

The Professional Sound Corporationr Press Train is a compact and easy to use in the field. It serves as a one input, 12 output passive audio distribution box designed to feed high quality audio for press conferences. This ruggedly built device is housed in a waterproof Pelican 1120 case for ease of use and shipping. The PSC Press train can be used in conjunction with our PSC Press Bridge or with any professional balanced line level source. Its input accepts a standard +4dBm balanced line level signal and provides 12 transformer isolated microphone level outputs. Our custom wound, mu-metal-shielded transformer's high input impedance insure that up to 8 PSC Press Trains can be connected to any professional 600 ohm balanced line without excessive line loading or distortion. Thus, you can obtain 96 separate, transformer-isolated, microphone-level outputs from a single line level source. Up to 300 outputs can be created with a PSC Press Bridge and 24 PSC Press Trains.</p><p>The PSC Press Train has one line level input and two line level loop-through connectors that are used to feed additional Press Trains. Up to 8 PSC Press Trains may be connected in any daisy chain configuration without loss of sound quality. Interconnection of additional PSC Press Trains is accomplished with standard microphone cables. Each of the Press Trains' 12 isolated microphone level outputs have isolated grounds to eliminate ground loops.</p>

The Professional Sound Corporationr Press Train is a compact and easy to use in the field It serves as a one input 12 output passive audio distribution box designed to feed high quality audio for press conferences This ruggedly built device is housed in a waterproof Pelican 1120 case for ease of use and export The PSC Press train can be used in conjunction with our PSC Press Bridge or with any professional balanced line level source Its input accepts a standard 4dBm balanced line level signal and provides 12 transformer isolated microphone level outputs Our custom wound mumetalshielded transformers high input impedance insure that up to 8 PSC Press Trains can be connected to any professional 600 ohm balanced line without excessive line loading or distortion Thus you can obtain 96 separate transformerisolated microphonelevel outputs from a single line level source Up to 300 outputs can be created with a PSC Press Bridge and 24 PSC Press Trains The PSC Press Train has one line level input and two line level loopthrough connectors that are used to feed additional Press Trains Up to 8 PSC Press Trains may be connected in any daisy chain configuration without loss of sound quality Interconnection of additional PSC Press Trains is accomplished with standard microphone cables Each of the Press Trains 12 isolated microphone level outputs have isolated grounds to eliminate ground loops Features. Inputs Balanced 4dB 12K Ohm Impedance. Outputs Balanced 40dB 150 Ohm Impedance. Case Pelican 1120Specifications. Dimension 812 x 656 x 356. Weight 22 lbs
