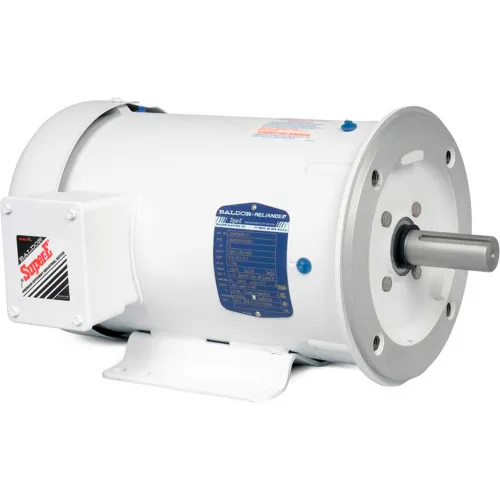

Baldor-Reliance Washdown Motor CEWDM3616T, 3 PH, 7.5 HP, 3450 RPM, 208-230/460 V, TEFC, 184TC FR

Baldor CEWDM3616T7.5HP3450RPM3PH60HZ184TC3646MTEFC

Baldor Electric, CEWDM3616T, 7.5HP, 3450RPM, 3PH, 460V;230V;208V, 184TC Frame, C-Face Flange, Foot Mount, TEFC, Washdown Duty

<p><b>Specifications: </b><ul><li>Motor Category:-General Purpose Motor (Painted) </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-7.50 hp, 7-1/2 hp </li><li> Synchronous RPM:-3600 rpm </li><li> Motor Supply Voltage:-208-230/460 V </li><li> Frame Size:-184TC </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed/C-Face Flange </li><li> Full Load Current:-8.40 A </li><li> Full Load Efficiency:-89.50 % </li><li> Amps @ Voltage:-8.4 A @ 460 V; 18.5 A @ 208 V; 16.8 A @ 230 V </li><li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-1.13 in </li><li> Overall Length (C-Dimension):-18.04 in </li><li> Service Factor:-1.15 </li><li> Frame Material:-Steel </li><li> Insulation Class:-F </li><li> IP Rating:-55 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Harmonization Code:-8501.52.4000 </li><li> Weight:-99.00 lbs </li><li> Applications:-Food processing and other applications where motors receive washdown on a regular basis. </li><li> Additional Details:-300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation. Super-E motors have NEMA Premium efficiency and 3 year warranty. </li></ul></p>
