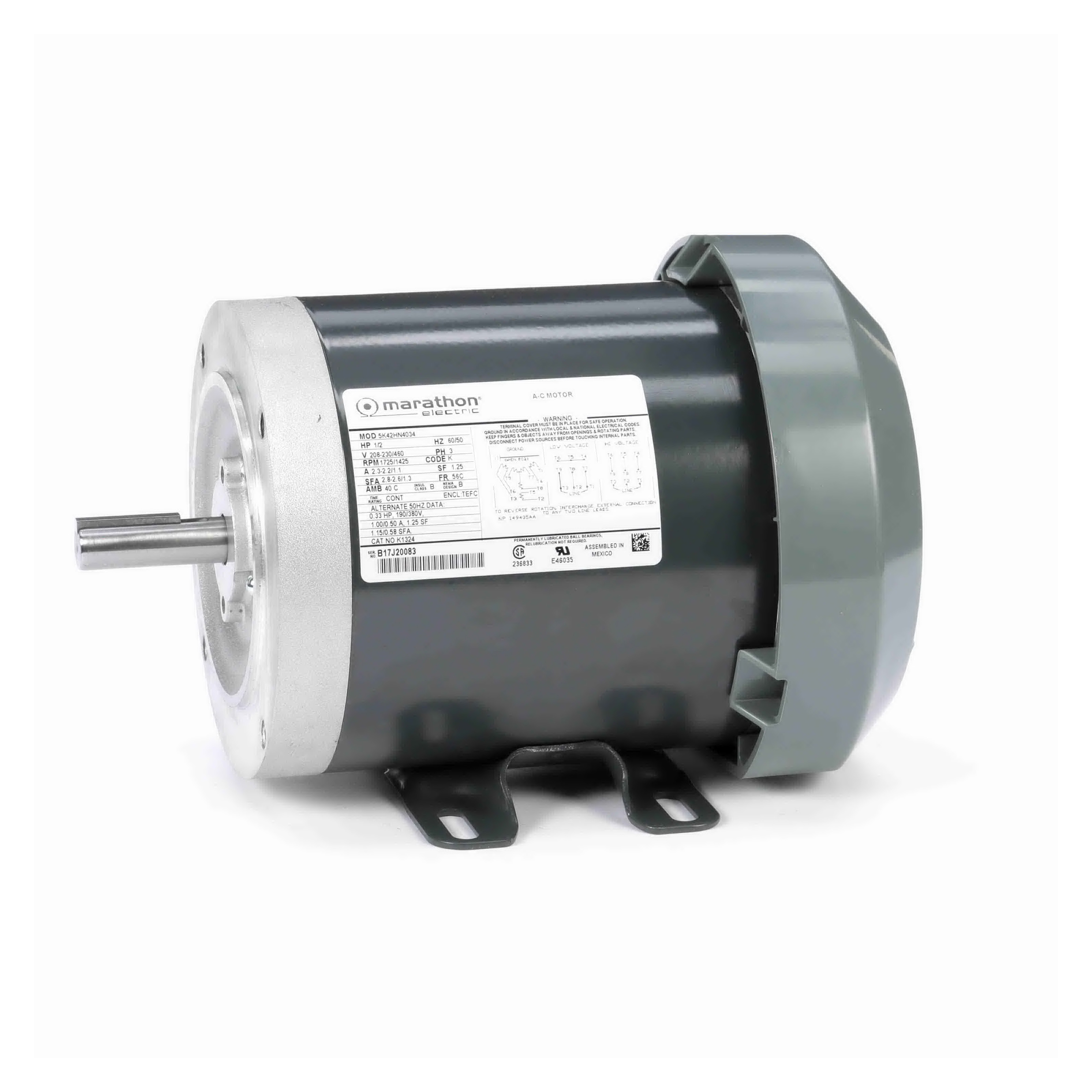

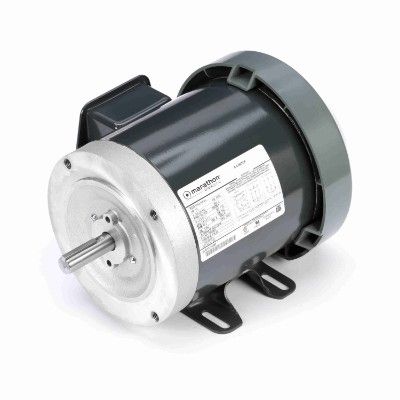

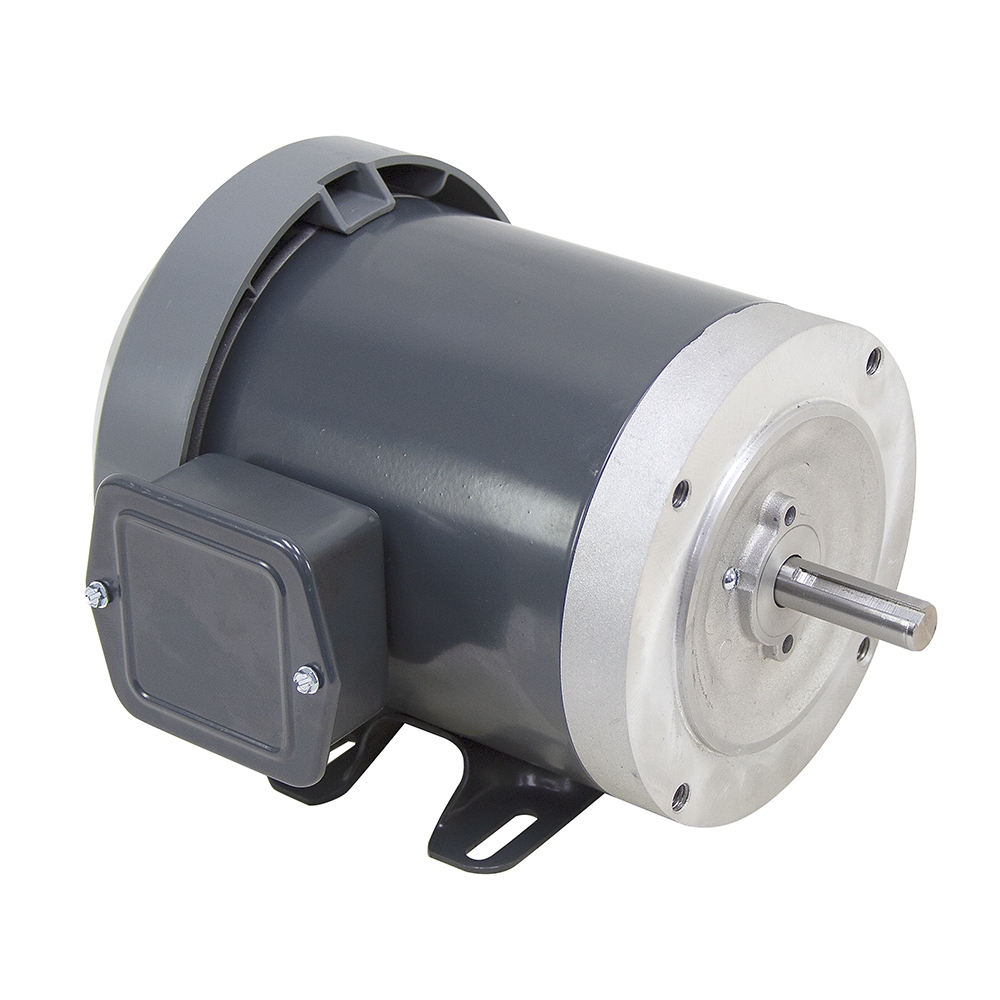

Marathon 5K42HN4034, General Purpose Motor, 1/2 HP, 208-230/460 Volts, 1.1 Amps, 3 Phase, 1725 RPM, 60 Hz, TEFC Enclosure, 56C Frame, Rigid Base, Footless Mounted, Rolled Steel Frame, Catalog No: K1324

3-phase motor is for dusty or dirty applications in pumps, speed reducers, machine tools, and other shaft-end mounted industrial equipment.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1/2<br /> Nameplate RPM: 1725/1425<br /> Frame: 56C<br /> Voltage: 230/460<br /> Hz: 60/50<br /> Phase: 3<br /> Full Load Amps: 2.2/1.1<br /> No. of Speeds: 1<br /> Motor Mounting Type: Face/Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.25<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 9-1/8"<br /> Overall Length: 11"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL, CSA, CE<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 74.7%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />

' General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled, 1/2 HP, Nameplate RPM 1725/1425, 56C Frame, Voltage 208-230/460, 60/50 Hz, 3 Phase, 2.3-2.2/1.1 Full Load Amps, No. of Speeds 1, Motor Mounting Type Face/Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class B, 1.25 Motor Service Factor, Ball Motor Bearings, Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 11 In., Motor Shaft Design Keyed '
