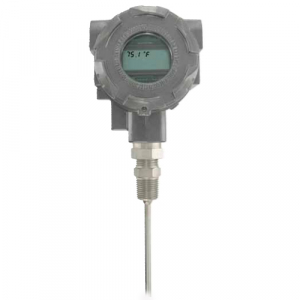

Series TTE Explosion-Proof RTD Temperature Transmitter. User Selectable Ranges, Optional LCD Display. The SERIES TTE Explosion-Proof RTD Temperature Transmitter is the ideal product for hazardous temperature measurement applications. The TTE series has seven pre-programmed temperature ranges that are selectable via an internal dip switch. For those applications that need a custom range, the transmitter can be easily configured for any range between -30 to 250°F with a minimum span of 40°F. The span and zero can be quickly adjusted with a simple push button design. The compact housing allows for the transmitter to be mounted in virtually any application. FEATURES: FM approved for Class I, Groups B, C, D; Class II, Groups E, F, G classified explosive environments; Optional LCD; Output span selected from seven common ranges or user determined. APPLICATIONS: Explosive process environments; Offshore HVAC monitoring. SPECIFICATIONS: Temperature Sensor: Pt1000, 0.00385 DIN. Output Temperature Ranges: User selectable - any range between -30 to 250°F with a minimum span of 40°F. Temperature Limits: Ambient: 0 to 158°F (-18 to 70°C); Process: -30 to 250°F (-34.4 to 121.1°C). Accuracy: Transmitter: ±0.1% FS; Probe: ±0.3% FS. Thermal Drift Effects: ±0.02%/°C max. Response Time: 250 ms. Wetted Materials: 316 SS. Process Connection: 1/2" male NPT. Conduit Connection: 1/2" female NPT. Probe Length: 2" to 18" (depending on model). Pressure Limits: 2000 psi (137.9 bar). Power Requirements: 10 to 35 VDC. Output Signal: 4 to 20 mA (two wire loop powered). Optional Display: 2 lines X 8 character LCD. Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Groups B, C, D; Class II, Groups E, F, G; Class III. Weight: 2 lb 8 oz (1134 g). Agency Approvals: CE, FM.
