Black Box Media Converter Gigabit Ethernet Poe Single Mode 1310Nm 10Km Lc Rohs Compliant: Yes - LPS500A-SM-10K-LC

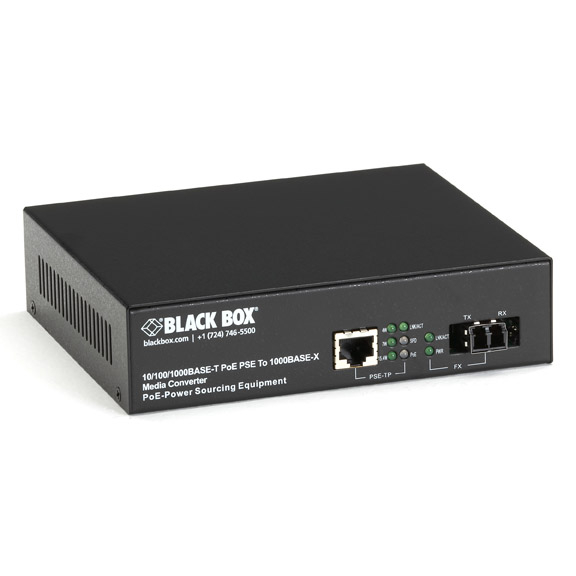

BlackBox, LPS500A-SM-10K-LC, PoE PSE Gigabit Media Converter - Single-Mode with LC Connector (10 km Distance) PoE PSE Gigabit Media Converter, Single-Mode LC, 10 km. Link 10/100/1000 UTP to Gigabit fiber single-mode and power 802.3af devices. Quick Facts Converts 10-/100-/1000-Mbps copper to Gigabit Ethernet fiber. Supports links up to 10 kilometers (6.2 miles) on the fiber side. Offers a maximum data transfer rate of 2000 Mbps (full-duplex). Works as 802.3af power sourcing equipment (PSE) for Power over Ethernet (PoE) devices on the copper side. Provides 48 VDC and 15.4 watts of power to two powered devices (PD) that comply with the 802.3af standard. Further Details A low-cost, economical solution for powering PoE devices over the same CATx link used for data communications. Powered device (PD) signature sending detects when a PoE device is connected. Protects against damage caused by overcurrent events and offers undercurrent detection. Link fault passthrough monitors both copper and fiber receive ports for loss of signal. Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link. Supports 802.3x flow control on full-duplex ports and backpressure on 10BASE-T/100BASE-TX half-duplex ports. Jumbo frame support (2 KB, normal mode; 9 KB, cut-through mode). Copper port autonegotiates for network speed and features Auto MDI-X for easy cabling. LEDs indicate when it is feeding PoE power as well as when power is interrupted. RoHS compliant. Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to single-mode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. In fact, it supports a maximum distance of 10 kilometers (6.2 miles).

Black Box Network Services Lps500a-Sm-10K-Lc Poe Pse Gigabit Media Converter, Single-

Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. <br><br>This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to single-mode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. In fact, it supports a maximum distance of 10 kilometers (6.2 miles). <br><br>Along with matching copper to interference-free fiber at Gigabit speeds, the converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side.<br/><br/><strong>Brand Name</strong>: Black Box<br/><strong>DVI</strong>: No<br/><strong>Ethernet Technology</strong>: Gigabit Ethernet<br/><strong>Fiber Mode Supported</strong>: Single-mode<br/><strong>Form Factor</strong>: Desktop<br/><strong>LC Port Type</strong>: Duplex<br/><strong>Maximum Distance Supported</strong>: 6.21 Mile<br/><strong>Media Type Supported</strong>: Optical Fiber<br/><strong>Media Type Supported</strong>: Twisted Pair<br/><strong>Network (RJ-45)</strong>: Yes<br/><strong>Network Technology</strong>: 10/100/1000Base-T<br/><strong>Number of LC Ports</strong>: 1<br/><strong>Number of PoE (RJ-45) Ports</strong>: 1<br/><strong>Product Type</strong>: Transceiver/Media Converter<br/><strong>Total Number of Ports</strong>: 2<br/><strong>USB</strong>: No<br/><br/><br/><b>General Information</b><br/>Brand Name: Black Box<br/>Manufacturer Part Number: LPS500A-SM-10K-LC<br/>Manufacturer: Black Box Corporation<br/>Marketing Information: Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Med
