CRL Blumcraft RG200SAPK RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute03Blumcraft
Attribute005/8" (16 mm)
Attribute0112" (305 mm)
Attribute02Flat Head
Attribute04, Attribute10Satin Anodized
Attribute052 lb (907g)
Attribute06Aluminum
Attribute076
Attribute081/2
Attribute09Base
AttributeKey00Hole Size
AttributeKey01Center-to-Center
AttributeKey02Hole Type
AttributeKey03Brand
AttributeKey04Finish
AttributeKey05, Weight_AttribShipping Weight
AttributeKey06Material
AttributeKey07Length
AttributeKey08Glazing Thickness
AttributeKey09Drilled
AttributeKey10Finish/Color
CategoryIdL3CRL Blumcraft? Base Shoe, Cladding, and Shims
CategoryL1Architectural Hardware
CategoryL2Glass and Post Railings
Extra Product NameCRL Blumcraft RG200SAPK RG200 Series Satin Anodized Two Piece Base Shoe - 6" Sample
Weight2
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
MPNRG200SAPK
qtyInStock0

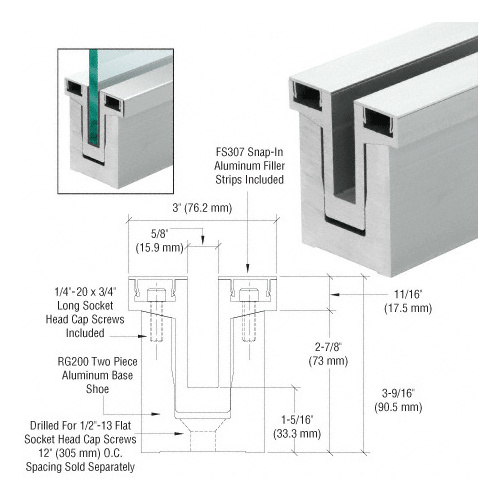

snippet<br/><b>CRL Blumcraft?'s RG200 Series Two Piece Base Shoe System</b> is offered in stock lengths or custom fabricated to size with or without factory installed 1/2" (12 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL Blumcraft?'s Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.<br/> Typical Mountings for 1/2" (12 mm) Glass, Steel Sub-Structures by Others.<br/><b>GLASS SPECIFICATIONS:</b> 1/2" (12 mm) Thick Glass Using Wet Glaze System.<br/><b>TEMPERED GLASS:</b> Shall be 1/2" (12 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.<br/><b>INSTALLATION NOTE:</b> The RG200 base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 1/2"-13 Flat Socket Head Cap Screws. Customer to drill and tap thru 1/2" (12 mm) thick (minimum) continuous steel plate using RG200 base as a template for hole location.<br/><b>SHIPPING NOTE:</b> Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.<br/><b>Product Warning:</b><br/>Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.<br/><p>.</p>
tierPrice1221.57

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRG200SAPK111 @ $221.57
