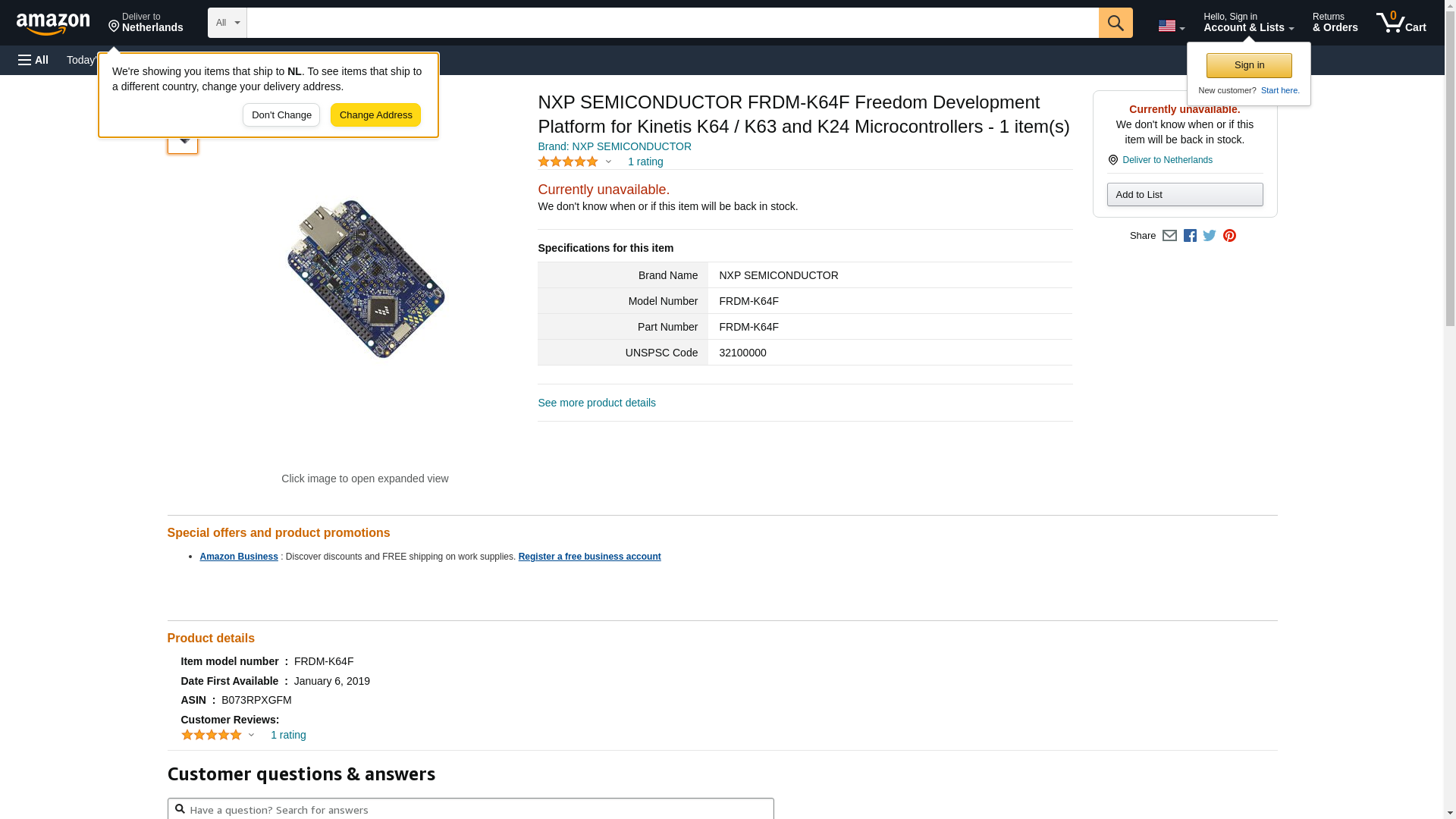

Nxp Silicon Manufacturer:nxp - FRDM-K64F

<p>The Freedom-K64F is an ultra-low-cost development platform for Kinetis K64, K63, and K24 MCUs. Form-factor compatible with the Arduino R3 pin layout Peripherals enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, a tri-colored LED and 2 user push-buttons for direct interaction, a microSD card slot, and connectivity using onboard Ethernet port and headers for use with Bluetooth and 2.4 GHz radio add-on modules OpenSDAv2, the NXP open source hardware embedded serial and debug adapter running an open source bootloader, offers options for serial communication, flash programming, and run-control debugging.</p> <p>Key Features</p> <ul> <li>MK64FN1M0VLL12 MCU (120 MHz, 1 MB flash memory, 256 KB RAM, low-power, crystal-less USB, and 100 Low profile Quad Flat Package (LQFP))</li> <li>Dual role USB interface with micro-B USB connector</li> <li>RGB LED</li> <li>FXOS8700CQ accelerometer and magnetometer</li> <li>Two user push buttons</li> <li>Flexible power supply option – OpenSDAv2 USB, Kinetis K64 USB, and external source</li> <li>Easy access to MCU input/output through Arduino R3 compatible I/O connectors</li> <li>Programmable OpenSDAv2 debug circuit supporting the CMSIS-DAP Interface software that provides: <ul> <li>Mass storage device (MSD) flash programming interface</li> <li>CMSIS-DAP debug interface over a driver-less USB HID connection providing run-control debugging and compatibility with IDE tools</li> <li>Virtual serial port interface</li> <li>Open source CMSIS-DAP software project</li> </ul> </li> <li>Ethernet</li> <li>SDHC</li> <li>Add-on RF module: nRF24L01+ Nordic 2.4GHz Radio</li> <li>Add-on Bluetooth module: JY-MCU BT board V1.05 BT</li> </ul>
