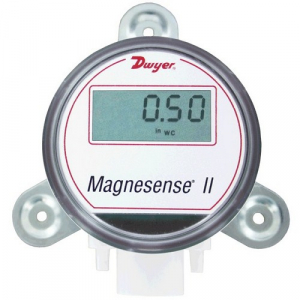

Order MS2-W112-LCD-BC by Dwyer MS2 Magnesense Transmitter - US Mega Store

Dwyer . MS2-W112-LCD-BC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute229600, 19200, 38400, 57600, 76800, 115200
Attribute01, Attribute238
Attribute02, Attribute24None
Attribute03, Attribute25, moq, multiple, tierMinQty11
Attribute04, Attribute26Air and non-combustible, compatible gases
Attribute05, Attribute27±1% FS for 0.15 in w.c. (40 Pa), 0.25 in w.c. (50 Pa), 0.5 in w.c. (100 Pa), 2 in w.c. (500 Pa), 3 in w.c. (750 Pa), 5 in w.c. (1250 Pa), 10 in w.c. (2 kPa), 15 in w.c. (3 kPa), 25 in w.c. (5 kPa), 28 in w.c. (6.975 kPa); ±2% FS for 0.1 in w.c. (25 Pa), 1 in w.c. (250 Pa), and all bi-directional ranges
Attribute06, Attribute28±1% / year FSO
Attribute07, Attribute290 to 150 °F (-18 to 66 °C)
Attribute08, Attribute301 PSI max., operation; 10 PSI burst
Attribute09, Attribute3110 to 35 VDC (2-wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire)
Attribute10, Attribute324 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire)
Attribute11, Attribute33Adjustable: 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds
Attribute12, Attribute34Digital push buttons
Attribute13, Attribute3540 mA max
Attribute14, Attribute365 digit LCD
Attribute15, Attribute373-wire removable European style terminal block for 16 to 22 AWG
Attribute16, Attribute381/2" NPS thread
Attribute17, Attribute393/16" ID tubing (5 mm ID); Max. OD 9 mm
Attribute18, Attribute40IP66
Attribute19, Attribute41Diaphragm in vertical position
Attribute20, Attribute428.0 oz (230 g)
Attribute21, Attribute43BTL, CE
AttributeKey00, AttributeKey22Supported Baud Rates
AttributeKey01, AttributeKey23Data Size
AttributeKey02, AttributeKey24Parity
AttributeKey03, AttributeKey25Stop Bits
AttributeKey04, AttributeKey26Service
AttributeKey05, AttributeKey27Typical Accuracy
AttributeKey06, AttributeKey28Stability
AttributeKey07, AttributeKey29Temperature Limits
AttributeKey08, AttributeKey30Pressure Limits
AttributeKey09, AttributeKey31Power Requirements
AttributeKey10, AttributeKey32Output Signals
AttributeKey11, AttributeKey33Response Time
AttributeKey12, AttributeKey34Zero & Span Adjustments
AttributeKey13, AttributeKey35Current Consumption
AttributeKey14, AttributeKey36Display
AttributeKey15, AttributeKey37Electrical Connections
AttributeKey16, AttributeKey38Electrical Entry
AttributeKey17, AttributeKey39Process Connection
AttributeKey18, AttributeKey40Enclosure Rating
AttributeKey19, AttributeKey41Mounting Orientation
AttributeKey20, AttributeKey42, Weight_AttribWeight
AttributeKey21, AttributeKey43Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Pressure
CategoryL4Dwyer MS2-W112-LCD-BC
ConditionNEW
Extra Product NameOrder MS2-W112-LCD-BC by Dwyer MS2 Magnesense Transmitter - US Mega Store
Weight8.0
WeightUnitoz
MPN, SKUMS2-W112-LCD-BC
qtyInStockContact Us
snippet<p><strong>Dwyer, MS2-W112-LCD-BC, MS2 Magnesense Wall Mount Middle Range Differential Transmitter,BACnet </strong> </p> <p>The Series MS2 Magnesense&#174; II Differential Pressure Transmitter combines the proven stable Hall Effect sensing technology of our original Series MS with additional features to reduce installation time and simplify ordering. In this second generation transmitter, we have added additional field selectable pressure ranges so that each model can have four selectable ranges along with four additional bidirectional ranges. When using the pluggable integral display or the portable remote display tool, both Metric and English engineering units can be selected via on board dip switches. Dual current and voltage outputs allow users to simultaneously take either a current or voltage output to their building controller and have a local test circuit for verification of the output reading. The voltage output can be selected to be either 0 to 5 VDC or 0 to 10 VDC, while the current is always 4 to 20 mA. Both the current and voltage output can also be inverted. The MS2 can also be ordered with either a BACnet&#174; or MODBUS&#174; Communications protocol output that will allow the transmitters to be daisy-chained together. </p> <p>Like the original Series MS, the second generation transmitter can be used as a linear pressure output or a linear velocity output with the square root extraction done in the transmitter. Additional parameters have been included to expand the square root capability to include flow measurements. </p> <p>BACnet&#174; and Modbus&#174; Communications protocol recommend limiting the number of nodes in any segment to 32. Therefore, the transceiver may be rated at one unit load. Fractional loads are also acceptable. The MS2 accounts as an eighth of a load on the MSTP network. </p> <p><strong>Features </strong> </p> <ul><li>BACnet&#174; or Modbus&#174; serial communications reduce wiring cost by daisy-chaining the transmitters </li> <li>Our integral field-upgradeable display or plug-in remote display tool save upfront material cost and allow for local viewing of measurements </li> </ul> <p><strong>Applications </strong> </p> <ul><li>Duct Static Pressure in Commercial Buildings </li> <li>Fan Proving </li> <li>Filter Monitoring in Air Handler Units </li> <li>Building Pressure in Pharmaceutical-Semi-Conductor Clean Rooms </li> <li>Air Velocity/Flow in VAV Systems </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>BTL Certificate </li> <li>RoHS Letter of Compliance </li> <li>CE Approval </li> <li>GOST-R Approval </li> </ul>
tierPrice1291.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comMS2-W112-LCD-BC1Contact Us11 @ $291.70
heavydutydepot.comMS2-W112-LCD-BC111 @ $291.70
MegadepotMS2-W112-LCD-BC11
RadwellMS2-W112-LCD-BC111 @ $270.00
