Order US03-0011-00 by Flowline EchoTouch Liquid Level Transmitter - US Mega Store

Flowline . US03-0011-00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFlowline
Attribute00, Attribute274" to 9.8' (10.1 cm. to 3 m.)
Attribute01, Attribute28± 0.2% of range
Attribute02, Attribute290.039" (1 mm.)
Attribute03, Attribute304" (10.1 cm.)
Attribute04, Attribute312" (5 cm.)
Attribute05, Attribute32WebCal PC Windows USB 2.0
Attribute06, Attribute33Non-volatile
Attribute07, Attribute3414-28 VDC
Attribute08, Attribute35500 ohms at 24 VDC
Attribute09, Attribute364-20mA, two-wire
Attribute10, Attribute374-20mA or 20-4mA
Attribute11, Attribute384mA, 20mA, 21mA, 22mA, hold last
Attribute12, Attribute39F: -40° to 176° / C: -40° to 80°
Attribute13, Attribute40Automatic
Attribute14, Attribute41F: -31° to 140° / C: -35° to 60°
Attribute15, Attribute4230 psi (2 bar)
Attribute16, Attribute43Type 6P (IP68)
Attribute17, Attribute44Polypropylene
Attribute18, Attribute45Reflective
Attribute19, Attribute46Polyvinylidene fluoride
Attribute20, Attribute47Polyurethane
Attribute21, Attribute484-conductor, shielded
Attribute22, Attribute4948" (1.2 m.)
Attribute23, Attribute502" G
Attribute24, Attribute51Viton
Attribute25, Attribute52Intrinsically safe
Attribute26, Attribute53CE, RoHS
AttributeKey00, AttributeKey27Range
AttributeKey01, AttributeKey28Accuracy
AttributeKey02, AttributeKey29Resolution
AttributeKey03, AttributeKey30Dead band
AttributeKey04, AttributeKey31, width_AttribBeam width
AttributeKey05, AttributeKey32Configuration
AttributeKey06, AttributeKey33Memory
AttributeKey07, AttributeKey34Supply voltage
AttributeKey08, AttributeKey35Loop resistance
AttributeKey09, AttributeKey36Signal output
AttributeKey10, AttributeKey37Signal invert
AttributeKey11, AttributeKey38Signal fail-safe
AttributeKey12, AttributeKey39Process temp.
AttributeKey13, AttributeKey40Temp. comp.
AttributeKey14, AttributeKey41Ambient temp.
AttributeKey15, AttributeKey42Pressure
AttributeKey16, AttributeKey43Enclosure rating
AttributeKey17, AttributeKey44Encl. material
AttributeKey18, AttributeKey45Transducer type
AttributeKey19, AttributeKey46Transducer mat.
AttributeKey20, AttributeKey47Cable jacket mat.
AttributeKey21, AttributeKey48Cable type
AttributeKey22, AttributeKey49, length_AttribCable length
AttributeKey23, AttributeKey50Process mount
AttributeKey24, AttributeKey51Mount gasket
AttributeKey25, AttributeKey52Classification
AttributeKey26, AttributeKey53Compliance
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Level
CategoryL4Flowline US03-0011-00
ConditionNEW
DimensionUnitinch
Extra Product NameOrder US03-0011-00 by Flowline EchoTouch Liquid Level Transmitter - US Mega Store
length48.0
moq, multiple, tierMinQty11
MPN, SKUUS03-0011-00
qtyInStock-2
qtySourceFieldMap

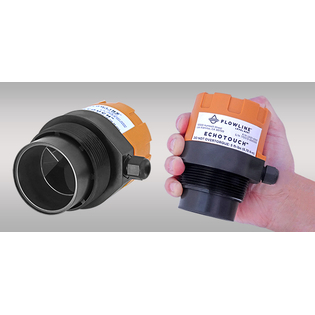

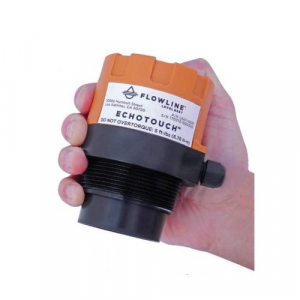

snippet<p><strong>Flowline, US03-0011-00, EchoTouch Reflective Ultrasonic Liquid Level Transmitter, 3 m. (9.8') Sensor Range, 2" G Process Mount without FOB Adapter </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Reflective Technology measures reliably with condensation </li> <li>Narrow 2" (5 cm.) beam width for applications with limited space </li> <li>Configuration is easy with WebCal software and USB adapter </li> <li>Short 1.5" (3.8cm) dead band maximizes tank filling capacity </li> <li>PVDF transducer and PP enclosure for corrosive environments </li> <li>Fail-safe diagnostics with selectable fail-safe signal outputs </li> <li>Type 6P (IP68) compact enclosure for small tank applications </li> <li>Automatic temperature compensation from -40&deg; to 80&deg; C </li> </ul> <p><strong>Applications: </strong> </p> <p>The intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement with a 4-20 mA analog signal output and is configured via WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology that delivers reliable level measurement in condensing environments. This sensor for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. </p> <p><strong>Reflective Technology: </strong> </p> <p>Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50% and substantially reducing their measurement reliability. At the core of Reflective Technology is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45&deg; reflector, delivering reliable level measurement. Thanks gravity. </p>
tierPrice1715
width2.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comUS03-0011-001-211 @ $715.00
sun-source.comUS03-0011-00111 @ $0.00
burtprocess.comUS03-0011-00111 @ $715.00
MegadepotUS03-0011-00111 @ $715.00
heavydutydepot.comUS03-0011-001-211 @ $715.00
