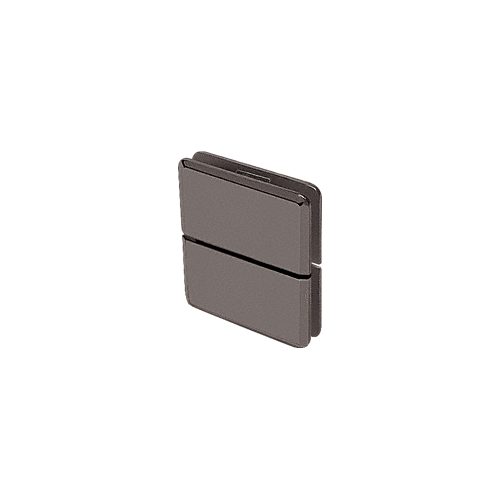

CRL ALUM-PPH02BL-VCP-1 Black Prima 02 Series Glass-To-Glass Mount Hinge

CRL-USALUM . ALUM-PPH02BL-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute004-1/8
Attribute01, Attribute12, Attribute133-5/8
Attribute02Black
Attribute03Beveled
Attribute0431
Attribute05Glass To Transom
Attribute06, Attribute11, Weight100
Attribute075/16 To 3/8
Attribute08Brass
Attribute09Gloss Black
Attribute10Yes
AttributeKey00Height
AttributeKey01Width
AttributeKey02Finish
AttributeKey03Edge Profile
AttributeKey04Maximum Door Width
AttributeKey05Mounting Type
AttributeKey06, Weight_AttribMaximum Door Weight - 2 Hinges (Pounds)
AttributeKey07Glazing Thickness
AttributeKey08Material
AttributeKey09Finish/Color
AttributeKey10Self-Centering
AttributeKey11Maximum Door Weight
AttributeKey12Width - Sidelite Portion (Inches)
AttributeKey13Width - Door Portion (Inches)
CategoryIdL3Top and Bottom Pivot Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameCRL ALUM-PPH02BL-VCP-1 Black Prima 02 Series Glass-To-Glass Mount Hinge
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-PPH02BL-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/><b>CRL Prima Series Pivot Hinges</b> are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.<br/><b>Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series):</b> Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.<br/><b>Using two hinges</b> with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass<br/><b>Special Features:</b> Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> Full Rotation<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions<br/><b>This hinge series is patented (Patent No. 5,297,313).</b><br/> Custom finishes are available on request. Contact the DK Hardware Sales Department.<br/><b>Product Warning:</b><br/><b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice1284.69

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-PPH02BL-VCP-1111 @ $284.69
