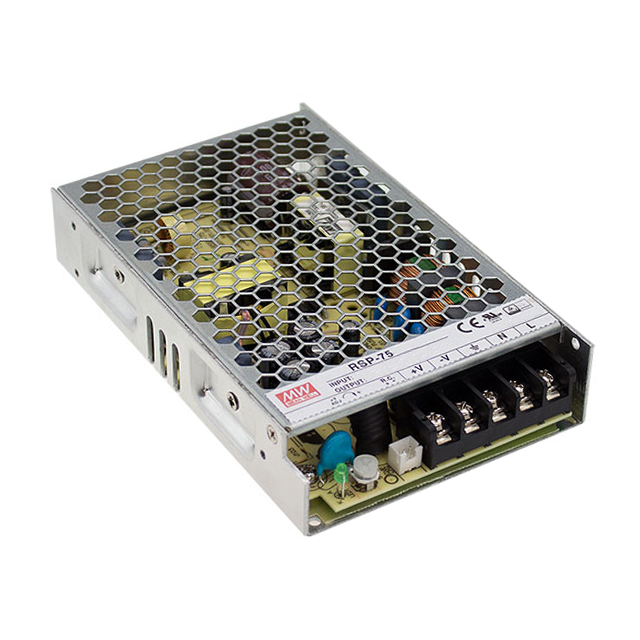

Mean Well Power Supply, Ac-Dc, 48V, 1.6A - RSP-75-48

<b>Features</b><br>Ultra low profile: 30mm<br>Universal AC input / Full range<br>Built-in active PFC function<br>Protections: Short circuit / Overload / Over voltage / Over temperature (RSP-100/150/200)<br>Cooling by free air convection<br>Built-in constant current limiting circuit (RSP-75/100/150)<br>Remote ON/OFF control (RSP-75/100/150)<br>LED indicator for power on<br>3 years warranty<br>The transaction does not include any Import Tax / Duty / VAT / Brokerage Fees / Handling Fees. For more information about the tax rate, please check with local custom department before purchases. If you reject the package due to any charged tax or duty, we reserve the right to charge ALL shipping cost and 5% (of total price) handling fee. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. We do not responsible for any custom duty or import tax. Please check with your country's customs office to determine what these additional costs will be prior to buying. Sometime customs will inspect the parcel and sometime will not. If you have any special request, please kindly advise us once place order.

RSP-75-48, AC/DC Power Supply

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Built-in active PFC function</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>Cooling by free air convection</p> <p>1U low profile 30mm</p> <p>Remote ON-OFF control</p> <p>100% full load burn-in test</p> <p>LED indicator for power on</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:85~264VAC ; 120~370VDC</p> <p>AC inrush current (max.):Cold start, 35A at 230VAC</p> <p>Overload protection:105%~135% Constant current limiting, auto-recovery</p> <p>Over temperature protection:Shut down o/p voltage, re-power on to recover</p> <p>Setup, rise, hold up time:600ms,30ms,16ms at full load</p> <p>Withstand voltage:I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</p> <p>Working temperature:-25~+70ºC(refer to output derating curve)</p> <p>Safety standards:UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved</p> <p>EMC standards:EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024</p> <p>Connection:5P/9.5mm pitch terminal block</p> <p>Dimension (LxWxH) (mm):159x97x 30mm</p> <p>Packing:30pcs / 14.2kg</p>
