Parker Round Air Cylin,3-4InBore,2InStroke 0.75PSR02.00 ZO-G6171803 - SIM Supply
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| simsupply.com | ZO-G6171803 | 1 | 97 | 1 | 1 @ $56.92 |
| AJ2EDF | 1 | 1 | 1 @ $61.07 | ||
 Zoro | G6171803 | 1 | 40 | 1 | 1 @ $30.14 |
 Radwell | 0.75PSR02.00 | 1 | 1 | ||
| sustainablesupply.com | C1685241 | 1 | -2 | 1 | 1 @ $39.10 |
| Amazon | B01M05MSEE | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

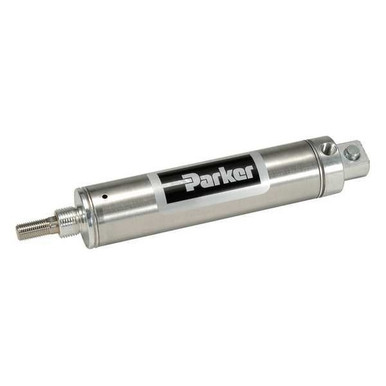

Round Air Cylin, 3/4InBore, 2InStroke
Brand: Parker
' Air Cylinder, Single Acting, Round Non-Repairable, Bore Dia. 3/4 In., 2 In. Stroke, Pivot Mount, 1/8 In. FNPT Port Size, 250 psi Max. Pressure, Cushion Type None, -10 Degrees to 165 Degrees F Temp. Range, 6.44 In. Overall Length, Aluminum Piston Material, Stainless Steel Body Material, Silver Finish, Aluminum End Cap Material, Stainless Steel Piston Rod Material, Magnetic Piston No, Tube Material Stainless Steel, Nose Mount Thread 1/2 In.-20, 0.25 In. Rod Dia., 1/4-28 UNF Rod Thread Size '
Details
- Price For: Each Cushion Type: None Cylinder Type: Round Non-Repairable Finish: Silver Piston Material: Aluminum Single Acting/Double Acting: Single Acting Tube Material: Stainless Steel Max. Pressure: 250 psi End Cap Material: Aluminum Body Material: Stainless Steel Item: Air Cylinder Dimension Cd: 0.25" Dimension N1: 1/2"-20 Mount: Pivot Dimension Cb: 0.38"
- Dimension B: 0.499" Dimension L: 0.34" Rod Dia.: 0.25" Temp. Range: -10 Degrees to 165 Degrees F Magnetic Piston: No Dimension E: 0.38" Features: Non-Switch Ready Piston Rod Material: Stainless Steel Spring Retraction Force: 3 lb. Rod Thread Length: 0.50" Dimension A: 0.50" Dimension Kk: 1/4"-28 UNF Port Size: 1/8" FNPT Dimension Cc: 0.25" Nose Mount Thread: 1/2"-20 Bore Dia.: 3/4"
- Stroke: 2" Pivot Hole Dia.: 0.251" Rod Thread Size: 1/4-28 UNF Overall Length: 6.44" Country of Origin (subject to change): United States
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | TOOLS |
| Model | 0.75PSR02.00 |
| Part number | 0.75PSR02.00 |
| Label | PARKER |
| Manufacturer | PARKER |
Catalog
| Feature | <b>Price For:</b> Each <b>Cushion Type</b>: None <b>Cylinder Type</b>: Round Non-Repairable <b>Finish</b>: Silver <b>Piston Material</b>: Aluminum <b>Single Acting/Double Acting</b>: Single Acting <b>Tube Material</b>: Stainless Steel <b>Max. Pressure</b>: 250 psi <b>End Cap Material</b>: Aluminum <b>Body Material</b>: Stainless Steel <b>Item</b>: Air Cylinder <b>Dimension Cd</b>: 0.25" <b>Dimension N1</b>: 1/2"-20 <b>Mount</b>: Pivot <b>Dimension Cb</b>: 0.38" |
|---|---|
| Category | Industrial & Scientific |
| MPN | 0.75PSR02.00 |
| Product group | BISS |
| Product type | TOOLS |
| Manufacturer | PARKER |
