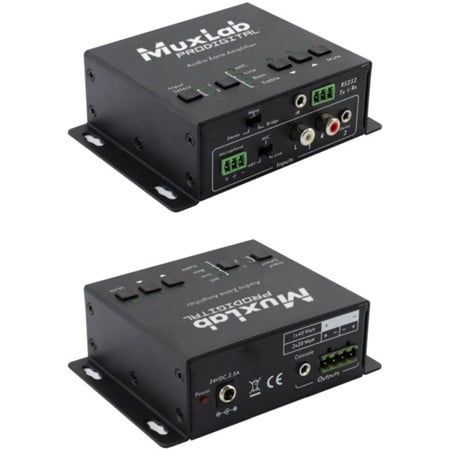

The MuxLab <b>500216-US</b> Audio Zone Amplifier is a Class D digital amplifier that allows one (1) analog source to be distributed to a pair of 20W per channel stereo speakers within a zone. The Audio Zone Amplifier can be cascaded infinitely across multiple zones to give a multi-room audio solution.</p><p>The Audio Zone Amplifier features two (2) stereo analog audio input lines, microphone input with 48V phantom supply, and two (2) 20W, 4-ohm speaker outputs or one (1) 40W, 8-ohm speaker output.</p><p>Volume and source control via the front push buttons, or via IR using the optional IR Sensor & Handheld Remote Control Kit (500216-IR).</p>

The MuxLab 500216US Audio Zone Amplifier is a Class D digital amplifier that allows one 1 analog source to be distributed to a pair of 20W per channel stereo speakers within a zone The Audio Zone Amplifier can be cascaded infinitely across multiple zones to give a multiroom audio solution The Audio Zone Amplifier features two 2 stereo analog audio input lines microphone input with 48V phantom supply and two 2 20W 4ohm speaker outputs or one 1 40W 8ohm speaker output Volume and source control via the front push buttons or via IR using the optional IR Sensor Handheld Remote Control Kit 500216IR Features. Two Analog Stereo Audio Inputs. Microphone input with 48V phantom supply. 20W per channel into 4ohm. Cascadeable to further amplifiers. Compatible with MuxLab HiFi Audio Baluns and Audio Matrix Switch. Volume control. Ground loop isolation. Controllable via push buttons RS232 and optional IRSpecifications. Environment Audio Distribution. Power Output 20W RMS maximum per channel into 4 ohm. Front Control Input select Volume Bass Treble Mute. Power Requirement 60W max 24VDC 25A. Compatible Source Unit Line level Analog Audio. Gain 26dB. Frequency 20Hz to 20KHz. Control Push buttons RS232 and Optional IR. Temperature Operating 32deg to 90degF 0deg to 40degC. Storage 40deg to 185degF 40deg to 85degC. Humidity Maximum 90 noncondensing. Enclosure Metal black painted. Dimension 49 x 35 x 15 123 x 87 x 38cm. Weight 1 lbs
