Omron Automation . Z15GD55B
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Master Electronics | Z15GD55B | 1 | 40 | 1 | 1 @ $27.51, 2 @ $19.49 |
| ebay.com | Z-15GD55-B | 1 | -2 | 1 | |
 Newark | 52F3662 | 1 | 43 | 1 | 1 @ $22.35, 5 @ $20.56, 10 @ $19.00, 25 @ $17.21, 50 @ $15.87 |
| Airline Hydraulics | OMRON Z-15GD55-B | 1 | 127 | 1 | 1 @ $19.62 |
| Z-15GD55-B | 1 | 1 | 1 @ $19.77 | ||
| Waldom | OMRON ELECTRONICS Z15GD55B | 1 | 1 | ||
| us.rs-online.com | 70179343 | 1 | 1 | 1 @ $29.66, 3 @ $28.14 | |
| 1Source | Z-15GD55-B | 1 | 1 | ||
| Allied Electronics | 70179343 | 1 | 1 | ||
 Radwell | Z-15GD55-B | 1 | 1 | ||
| Waldom | OMRON ELECTRONICS Z-15GD55-B | 1 | 1 | 1 @ $11.02, 50 @ $10.46, 100 @ $9.95 | |
| Z15GD55B | 2 | 60 | 1 | 2 @ $16.91, 100 @ $13.36, 1000 @ $12.53, 10000 @ $12.53 | |
 Amazon | B008L5S2PG | 1 | 1 | ||
| 736150 | 1 | 1 | |||
 Carlton Bates Company | 40312316669 | 1 | 1 | 1 @ $16.27 | |
| swatee.com | Z-15GD55-B | 1 | 3 | 1 | 1 @ $34.82 |
 Digi-Key | SW1004-ND | 1 | 395 | 1 | |
| AmazonSC | B00FV23LL2 | 1 | 1 | ||
 AmazonTP | B008L5S2PG | 1 | 1 | 1 @ $15.68 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Omron Industrial Automation Micro Sw, Spring Plunger, Spdt, 15A 250V - Z-15GD55-B
Brand: Omron
MICRO SW, SPRING PLUNGER, SPDT, 15A 250V; Microswitch Type:Standard; Microswitch Actuator:Short Spring Plunger; Contact Configuration:SPDT; Switch Terminals:Screw; Contact Current Max:15A; Contact Voltage DC Nom:250VDC RoHS Compliant: Yes
Details
- <b>Price For:</b> Each<b>Return policy:</b> Item is non-cancelable and non-returnable<b>Order Unit:</b> Each 1 <b>Actuator Style:</b>: Short Spring Plunger <b>Contact Configuration:</b>: SPDT <b>Contact Current Max:</b>: 15 <b>Contact Voltage AC Nom:</b>: 250 <b>Contact Voltage DC Nom:</b>: 250 <b>Microswitch Actuator:</b>: Short Spring Plunger <b>Microswitch Type:</b>: Standard <b>Operating Force Max:</b>: 540 <b>Product Range:</b>: Z Series
- <b>SVHC:</b>: To Be Advised <b>Switch Operation:</b>: - <b>Switch Terminals:</b>: Screw
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_SWITCH |
| Model | Z-15GD55-B |
| Part number | Z-15GD55-B |
| Items per pack | 1 |
| Label | Omron Industrial Automation |
| Manufacturer | Omron Industrial Automation |

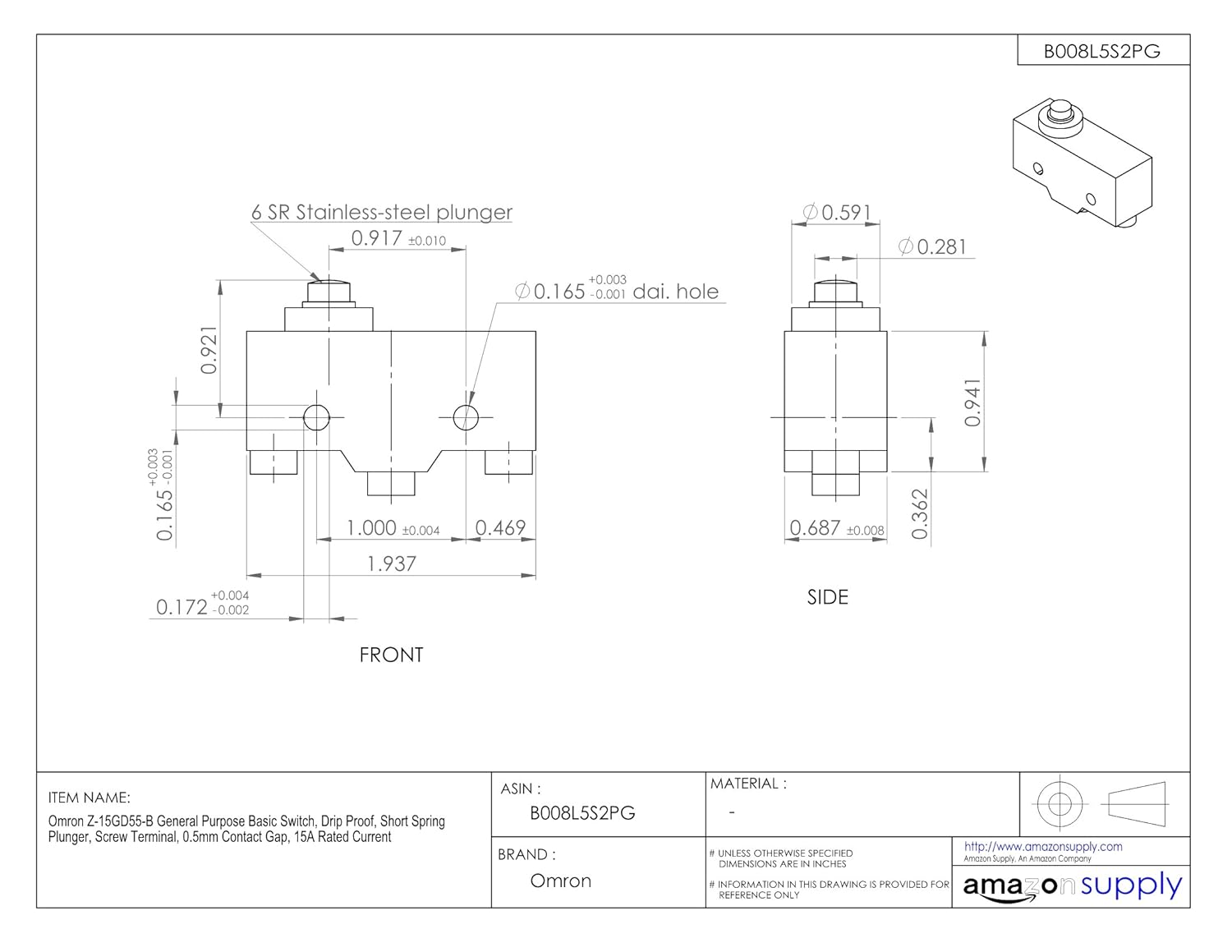

Omron Z-15GD55-B General Purpose Basic Switch, Drip Proof, Short Spring Plunger, Screw Terminal, 0.5mm Contact Gap, 15A Rated Current
Brand: Omron
Omron Z-Series Standard Snap switch having 1 NO - 1 NC contacts performs switching operation by 5.3 N force with the input voltage as well as current rating of 125 - 250 VAC and 15 A respectively. Brand Name|Omron#MFR Part Number|Z15GD55B#UNSPSC|39122243#Item|Snap Switch#Type|Drip-Proof, Standard#Voltage Rating|125 - 250 VAC#Amperage Rating|15 A#Operating Force|5.3 N#Release Force|1.12 N#Contact Configuration|1 NO - 1 NC#Actuator Type|Short Spring Plunger#Contact Form|SPDT#Travel|1.8 mm Pre-Travel, 1.6 mm Over Travel, 0.06 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact, Stainless Steel Plunger#Temperature Range|-15 to 80 deg C#Enclosure Type|IP62#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines
Details
- Best selling basic switch boasting high precision and wide variety
- A large switching capacity of 15A with high repeat accuracy.
- A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
- A series of standard models for micro loads is available.l
- A series of molded terminal-type models incorporating safety terminal protective cover is available.
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | ELECTRONIC_SWITCH |
| Part number | Z-15GD55-B |
| Items per pack | 1 |
| Label | Omron |
| Manufacturer | Omron |
Catalog
| Feature | Best selling basic switch boasting high precision and wide variety |
|---|---|
| Category | Industrial & Scientific |
| MPN | Z-15GD55-B |
| EAN | 4536854264764 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | Omron |
Basic / Snap Action Switches Short Spring Plunger Screw 515 OF
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT_TERMINAL |
| Part number | Z-15GD55-B |
| Label | Omron Automation and Safety |
| Manufacturer | Omron Automation and Safety |
Catalog
| Category | Industrial & Scientific |
|---|---|
| MPN | Z-15GD55-B |
| Product group | BISS Basic |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | Omron Automation and Safety |
