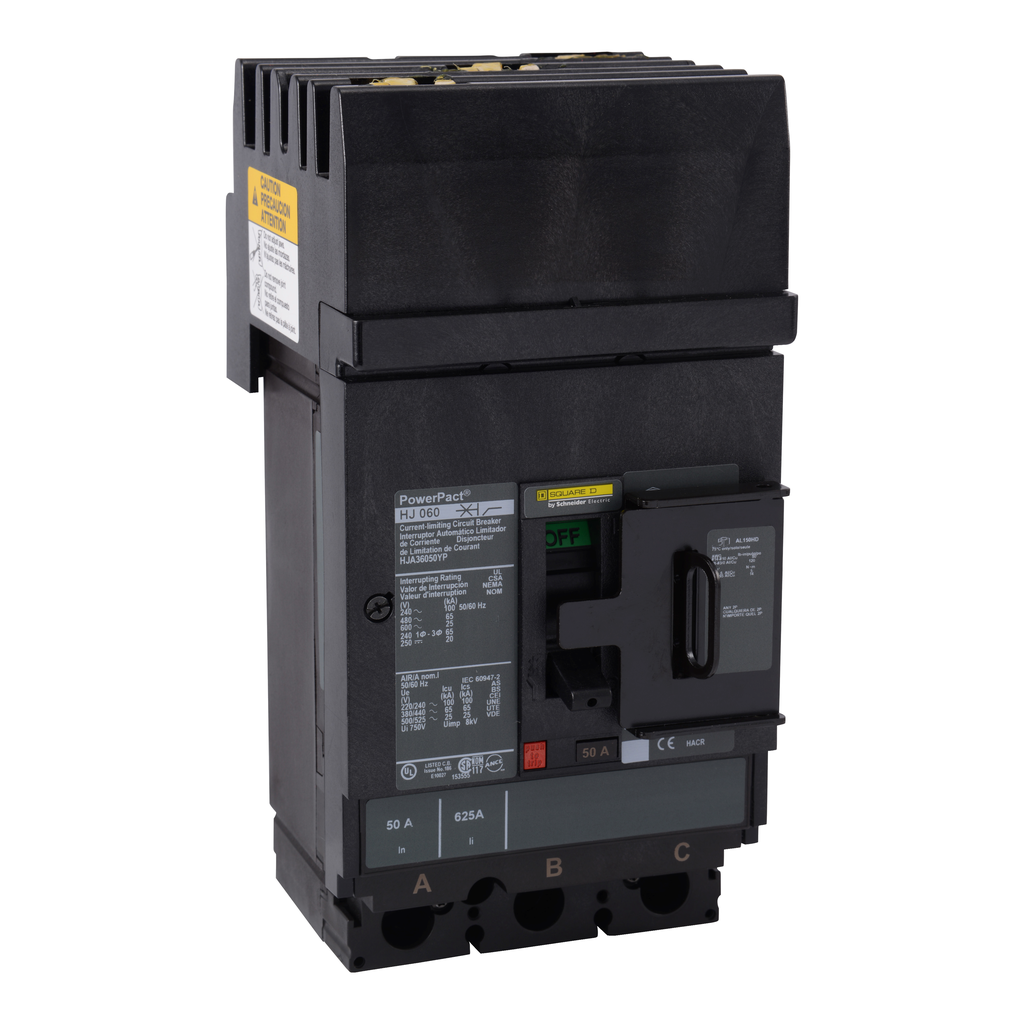

Circuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, padlock handle, ABC | Mayer Electric

SQUARE D . SQDHJA36070YP

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00circuit breaker
Attribute01PowerPact H
Attribute02PowerPact
Attribute03distribution
Attribute0418 months
Attribute05I-Line bracket)
Attribute0650/60 Hz
Attribute07AL150HD
Attribute08100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Attribute09thermal-magnetic
Attribute10163 mm
Attribute11690 V AC 50/60 Hz IEC 60947-3
Attribute125-5 N.m 2.5-6 mm? (AWG 14...AWG 10) || 14-14 N.m 10-95 mm? (AWG 8...AWG 3/0)
Attribute13bracket
Attribute14J
Attribute15padlocking device
Attribute161450-1450 A
Attribute17switched off (OFF) 1 trip indicator green)
Attribute182 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Attribute193t
Attribute20I-Line connection line || lugs load
Attribute214.5 in
Attribute222.2 kg
Attribute238 kV IEC 60947-2
Attribute24800 A
Attribute25toggle
Attribute2616 mm
Attribute27category A
Attribute2870-70 A
Attribute2980 %
Attribute30100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Attribute31750 V IEC 60947-2
Attribute32yes IEC 60947-2
Attribute33Modbus || Ethernet
Attribute343P
Attribute35, moq, multiple, tierMinQty11
Attribute36AWG 14...AWG 3/0 aluminium/copper terminal
Attribute37, colorBlack
Attribute38104 mm
Attribute3986 mm
Attribute40ABC
Attribute41, Attribute42, Attribute45Yes
Attribute43ENVPEP1311006EN
Attribute44Green Premium product
Attribute46Reference contains Substances of Very High Concern above the threshold
Attribute47DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute48Product out of China RoHS scope. Substance declaration for your information.
Attribute49ENVEOLI1311006EN
Attribute50Compliant
Attribute51-2-70 ?C
Attribute52UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Attribute53UL || CSA || NOM
Attribute54front cover IP40 IEC 60529
Attribute553 IEC 60947-1
Attribute56-50-85 ?C
Attribute57CE
AttributeKey00Product Or Component Type
AttributeKey01Product Name
AttributeKey02Range
AttributeKey03Device Application
AttributeKey04Warranty
AttributeKey05Mounting Mode
AttributeKey06Network Frequency
AttributeKey07Terminal Identifier
AttributeKey08[Ics] Rated Service Breaking Capacity
AttributeKey09Trip Unit Technology
AttributeKey10, height_AttribHeight
AttributeKey11[Ue] Rated Operational Voltage
AttributeKey12Tightening Torque
AttributeKey13Mounting Support
AttributeKey14Breaking Capacity Code
AttributeKey15Accessory / Separate Part Type
AttributeKey16Magnetic Tripping Current
AttributeKey17Local Signalling
AttributeKey18Number Of Slots
AttributeKey19Protected Poles Description
AttributeKey20Electrical Connection
AttributeKey21Mounting Height
AttributeKey22, Weight_AttribNet Weight
AttributeKey23[Uimp] Rated Impulse Withstand Voltage
AttributeKey24Magnetic Hold Current
AttributeKey25Control Type
AttributeKey26Wire Stripping Length
AttributeKey27Utilisation Category
AttributeKey28Line Rated Current
AttributeKey29Continuous Current Rating
AttributeKey30Breaking Capacity
AttributeKey31[Ui] Rated Insulation Voltage
AttributeKey32Suitability For Isolation
AttributeKey33Communication Interface
AttributeKey34Poles Description
AttributeKey35Quantity Per Set
AttributeKey36Awg Gauge
AttributeKey37Color
AttributeKey38, width_AttribWidth
AttributeKey39, length_AttribDepth
AttributeKey40Phase Connection
AttributeKey41Rohs Exemption Information
AttributeKey42Mercury Free
AttributeKey43Environmental Disclosure
AttributeKey44Sustainable Offer Status
AttributeKey45Pvc Free
AttributeKey46Reach Regulation
AttributeKey47California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey48China Rohs Regulation
AttributeKey49Circularity Profile
AttributeKey50Eu Rohs Directive
AttributeKey51Ambient Air Temperature For Operation
AttributeKey52Standards
AttributeKey53Product Certifications
AttributeKey54Ip Degree Of Protection
AttributeKey55Pollution Degree
AttributeKey56Ambient Air Temperature For Storage
AttributeKey57Quality Labels
DimensionUnitmm
Extra Product NameCircuit breaker, PowerPacT H, 70A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, padlock handle, ABC | Mayer Electric
UPC3606486282663
Weight2.2
WeightUnitkg
depth, length86.0
height163.0
jsonUrlData/Product/SQUARE-D-Circuit-breaker-PowerPact-H-70A-3-pole-600VAC-25kA-I-Line-thermal-magnetic-80-padlock-handle-ABC-SQDHJA36070YP
jsonUrlData21a299b30-9f0d-42e7-a29e-aeea0055c8db
MPN, SKUSQDHJA36070YP
qtyInStock0
tierPrice11980.52
width104.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDHJA36070YP111 @ $1980.52
