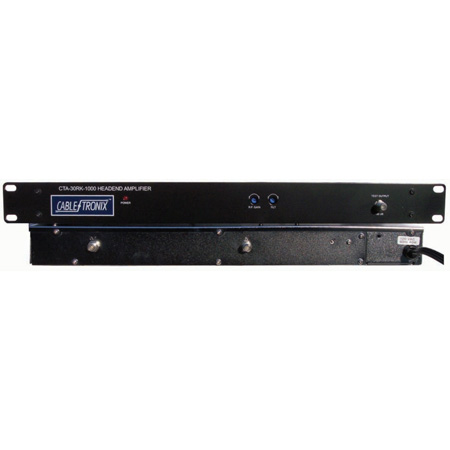

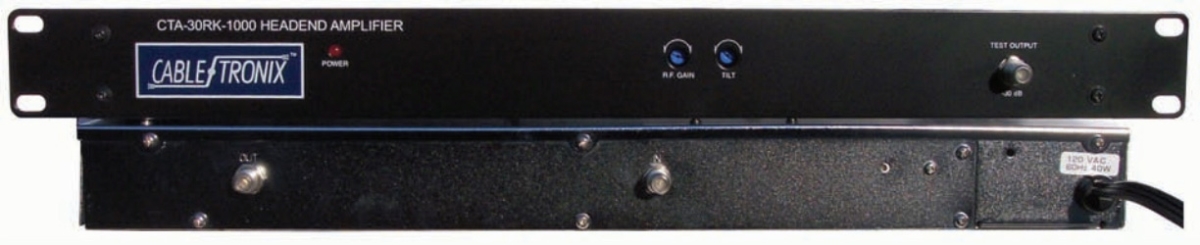

The <b>CTA-30RK-1000</b> is a professional quality 19" rack mountable broadband launch amplifier designed to produce Clean signals for a commercial grade private cable network. Employing a pushpull design, the CTA-30RK-1000 produces High output levels with extremely low distortion and harmonic content. As a broadband amplifier with a frequency range of 54-1000 MHz, The CTA-30RK1000 supports up to 158 channels.</p><p><strong><ins>Application</ins></strong><br />Designed for commercial grade headend systems, the CTA-30RK-1000 when Combined with a Cabletronix CTHC-12G, CTHC-24G, or other 3rd party combiners, serves as a launch amplifier to distribute Signals to a private cable network's RF plant.</p>

The CTA30RK1000 is a professional quality 19 rack mountable broadband launch amplifier designed to produce Clean signals for a commercial grade private cable network Employing a pushpull design the CTA30RK1000 produces High output levels with extremely low distortion and harmonic content As a broadband amplifier with a frequency range of 541000 MHz The CTA30RK1000 supports up to 158 channels Application Designed for commercial grade headend systems the CTA30RK1000 when Combined with a Cabletronix CTHC12G CTHC24G or other 3rd party combiners serves as a launch amplifier to distribute Signals to a private cable networks RF plant Features. Broadband coverage from 54 1000 MHz. Supports up to 158 channels. 30 dB gain. Adjustable gain and slope controls. Input and output test ports. Double shielded RFI enclosure. Competitive performance specsSpecifications. RF Bandwidth 54 1000 MHz. Gain 30 dB. Gain Adjustable Range 18 dB. Slope 12 dB. Flatness 15 dB per channel any 100 MHz band. Noise Figure 75 dB. Second Order Beats 60 dB 129 channels 13 dBmV input level. Composite Triple Beat 58 dB 129 channels 13 dBmV input level. Cross Modulation 54 dB 129 channels 13 dBmV input level. Return Loss In 16 dB to 750 MHz Typical. Return Loss Out 16 dB 7511000 MHz Typical. Weight 302 lbs
