4 Inch Red Poly on Cast Iron Swivel Caster Swivel Locks 2 Brakes SCC, 2PK

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms, NumberOfItems, Number_of_items4
Attribute01, Attribute172
Attribute025-5/8"
Attribute034-1/2" x 6-1/4"
Attribute041/2" (hardware not included)
Attribute054" x 2"
Attribute06Polyurethane on Cast Iron
Attribute07-40 degrees F to 180 degrees F
Attribute0895A
Attribute09Top Plate
Attribute10Bright Zinc Plated Finish
Attribute11, Model, ModelNumber, Model_numberSeries#35
Attribute122 Bolt On Swivel Locks & 2 Top Lock Brakes
Attribute13(2) Swivel casters w/bolt on swivel locks & (2) swivel casters w/side lock brakes
Attribute142-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attribute152800
Attribute16Precision Ball Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03Plate Size
AttributeKey04Bolt Size
AttributeKey05Size
AttributeKey06Material
AttributeKey07Caster Temp. Range
AttributeKey08Durometer
AttributeKey09Caster Mounting Type
AttributeKey10Finish
AttributeKey11Series
AttributeKey12Caster Swivel Lock Type
AttributeKey13Type
AttributeKey14Plate Caster Bolt Hole Pattern
AttributeKey15Capacity (Lb.)
AttributeKey16Bearing Type
AttributeKey17Package Quantity
CategoryId6740
DimensionUnitinch
GraingerSku, MPN, PartNumber, Part_numberSCC-35S420-PUB-RS-BSL-2-SLB-2
Extra Product Name4 Inch Red Poly on Cast Iron Swivel Caster Swivel Locks 2 Brakes SCC, 2PK
UPCNone
WeightUnitlbs
diameter, length4.0
extendedLead26
extendedQty-2
height5.625
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG705434060
tierPrice1271.00
urlhttps://www.zoro.com/service-caster-4-inch-red-poly-on-cast-iron-swivel-caster-swivel-locks-2-brakes-scc-2pk-scc-35s420-pub-rs-bsl-2-slb-2/i/G705434060/
width2.0
ASINB08WG5VPZ2 B08XZR254C
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08WG5VPZ2
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on. Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId511228
Color4 Swivel w/2 Brakes & 2 Swivel Locks
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0011586595422 011586595422
FetchTime1697506807 1704424721
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHeavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster w/Main. Free Bearings Set of 4 w/4" x 2" Red Wheels-Includes 2 Swivel with Bolt on Swvl Lcks&2 Swvl with Brakes- Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-35S520-PUB-RS-4
Linkhttps://m.media-amazon.com/images/I/419eklF-AgL._SL75_.jpg https://m.media-amazon.com/images/I/419eklF-AgL.jpg https://m.media-amazon.com/images/I/41IeDxf4yML._SL75_.jpg https://m.media-amazon.com/images/I/41IeDxf4yML.jpg https://m.media-amazon.com/images/I/41hTrk59xmL._SL75_.jpg https://m.media-amazon.com/images/I/41hTrk59xmL.jpg https://m.media-amazon.com/images/I/51-lxYqLR9L.jpg https://m.media-amazon.com/images/I/510W9fH6QtL._SL75_.jpg https://m.media-amazon.com/images/I/510W9fH6QtL.jpg https://m.media-amazon.com/images/I/51GdYBJhVeL.jpg https://m.media-amazon.com/images/I/51rmCHzuBkL._SL75_.jpg https://m.media-amazon.com/images/I/51rmCHzuBkL.jpg https://m.media-amazon.com/images/I/51tlvOp139L._SL75_.jpg https://m.media-amazon.com/images/I/51tlvOp139L.jpg https://m.media-amazon.com/images/I/61ETA-4XlAL.jpg https://m.media-amazon.com/images/I/61qitqJO2kL.jpg https://m.media-amazon.com/images/I/61zuiu-1GEL.jpg https://m.media-amazon.com/images/I/71igxuTctcL.jpg
List_price0.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypePolyurethane Tread on Semi Steel Cast Iron Core
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08XZR254C
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 4" diameter by 2" wide polyurethane on cast iron wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 2,800 lbs. (700 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 polyurethane on metal wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Product_site_launch_date2021-03-02T16:38:42.375Z
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41hTrk59xmL._SL75_.jpg
Unitpounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight30.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG705434060111 @ $271.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Heavy Duty Large Top Plate Polyurethane on Cast Iron Swivel Caster w/Main. Free Bearings Set of 4 w/4" x 2" Red Wheels-Includes 2 Swivel with Bolt on Swvl Lcks&2 Swvl with Brakes- Service Caster Brand
Brand: Service Caster

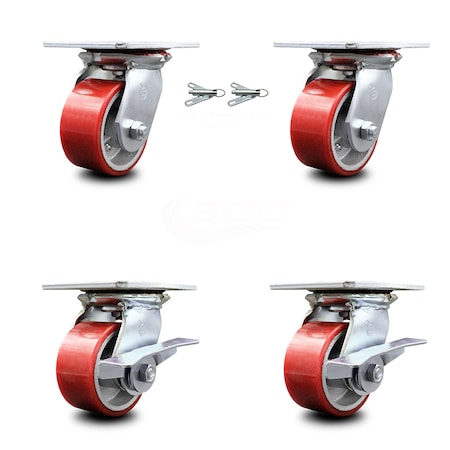

Listing is for a set of four (4) Service Caster Series #35 casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 4" diameter by 2" wide polyurethane on cast iron wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 2,800 lbs. (700 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 polyurethane on metal wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
Details
  • These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#35
Part numberSCC-35S420-PUB-RS-BSL-2-SLB-2
Items per pack4
LabelService Caster
ManufacturerService Caster
