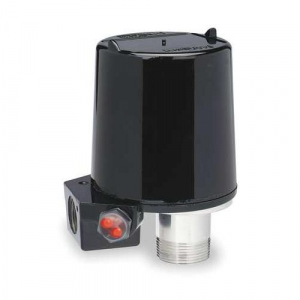

Order PLS-W-S-1-0-0-0-0 by Proximity Series PLS Paddle Level Switch - US Mega Store

Proximity . PLS-W-S-1-0-0-0-0

Gallery

Attributes

Brand name, Manufacturer nameProximity
ManufacturerProximity PROXIMITY
Attribute00, Attribute17Dry powder or bulk materials compatible with wetted materials
Attribute01, Attribute18Minimum material density of 5 lb/ft³ (80 kg/m³), maximum of 200 lb/ft³ (3200 kg/m³)
Attribute02, Attribute19Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft
Attribute03, Attribute20Standard Construction: Process: -40 to 300°F (-40 to 148.9°C), Ambient: -40 to 185°F (-40 to 85°C); High Temperature: Process: -40 to 500°F (-40 to 260°C), Ambient: -40 to 185°F (-40 to 85°C)
Attribute04, Attribute2130 psig (2.07 bar) maximum for .5 micron or larger material
Attribute05, Attribute225 watts
Attribute06, Attribute23Aluminum, powder coated
Attribute07, Attribute24NEMA 4X
Attribute08, Attribute25, Switch_typeSPDT
Attribute09, Attribute2615A at 120/230 VAC, 5A at 24 VDC
Attribute10, Attribute27Screw terminals
Attribute11, Attribute283/4" female NPT
Attribute12, Attribute291-1/4" male NPT
Attribute13, Attribute30Control head only: 4 lb (1.81 kg)
Attribute14, Attribute31Red LED that activates when switch is made or when switch is not made with RL option (not available on Explosion-proof models)
Attribute15, Attribute32Five field adjustable ranges from 0-1 to 0-31 minutes
Attribute16, Attribute33cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations
AttributeKey00, AttributeKey17Service
AttributeKey01, AttributeKey18Sensitivity
AttributeKey02, AttributeKey19Wetted Materials
AttributeKey03, AttributeKey20Temperature Limits
AttributeKey04, AttributeKey21Pressure Limit
AttributeKey05, AttributeKey22Power Consumption
AttributeKey06, AttributeKey23Enclosure
AttributeKey07, AttributeKey24Enclosure Rating
AttributeKey08, AttributeKey25Switch Type
AttributeKey09, AttributeKey26Electrical Rating
AttributeKey10, AttributeKey27Electric Connections
AttributeKey11, AttributeKey28Conduit Connection
AttributeKey12, AttributeKey29Process Connection
AttributeKey13, AttributeKey30, Weight_AttribWeight
AttributeKey14, AttributeKey31Indication Light
AttributeKey15, AttributeKey32Time Delay Relay Option
AttributeKey16, AttributeKey33Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Level
CategoryL4Proximity PLS-W-S-1-0-0-0-0
ConditionNEW
Extra Product NameOrder PLS-W-S-1-0-0-0-0 by Proximity Series PLS Paddle Level Switch - US Mega Store
Weight4 3.01 4.0 4.00
WeightUnitlbs
moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, SKU, Part Number, Keyword, Model, ModelNumber, Model_number, PartNumber, Part_numberPLS-W-S-1-0-0-0-0
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Proximity, PLS-W-S-1-0-0-0-0, Series PLS Paddle Level Switch, SPDT, Weatherproof, 120 VAC Power Supply </strong> </p> <p><strong>PLS-W-S-1-0-0-0-0 Includes Only: </strong> </p> <ul><li>Level Switch </li> <li><strong>Paddle sold separately </strong> </li> </ul> <p><strong>Features with all optional accessories </strong> : </p> <ul><li>Magnetic drive that isolates and completely seals the control head from the process and environment preventing material or dust from entering the control head. </li> <li>Motor shuts-off when paddle stalls increasing motor life, preventing motor burnout, and decreasing power usage. </li> <li>Slip clutch design enabled by the magnetic drive that prevents damage to motor and drive mechanism from sudden or excessive loading on the paddle. </li> <li>Status indication light on weatherproof models. </li> <li>Screw cover on the enclosure for easy access with no worries about losing bolts or screws. </li> <li>Modular design to allow field installation of any paddle, flanges, shaft extensions, or shaft guards. </li> <li>Flexible coupling available for protection of the paddle and drive from side loads, surges or impacts. Recommended for top mount applications with shaft extension and applications with large or heavy materials. </li> <li>Economical Rotary Paddle Level Control </li> </ul> <p>Incorporated in the design of the PLS is a magnetic drive that is time proven by decades of use in our Mark Series valve position indicator product line. A 1 rpm synchronous motor rotates the paddle, utilizing a magnetic drive. As product builds up, the paddle is impeded from moving and the resulting motor torque activates the output switches and stops the motor. A spring mechanism reactivates the motor and returns the switches to normal state when the product no longer impedes the paddle rotation. </p> <p>Standard construction is weatherproof with explosion-proof optional, and the unit can be side or top mounted. The PLS is designed with the industry standard 1-1/4" male NPT connection and mounting flanges. </p> <p><strong>Approvals </strong> </p> <ul><li>UL-Auxiliary Devices </li> <li>UL-Motor Controllers-US </li> </ul>
tierPrice1413.6
Product GroupBISS
ASIN, AsinB0086A0SFI
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount399.99 452.99 560.99
BindingMisc. Toy
BrandProximity Proximity\xae Proximity®
Bullet_point, Feature<b>Price For:</b> Each <b>Manufacturers Warranty Length</b>: 1 YEAR <b>Contact Rating</b>: 15A @ 120/230VAC, 5A @ 24VDC <b>Switch Type</b>: SPDT <b>Enclosure</b>: NEMA 4X <b>Type</b>: Paddle <b>Includes</b>: Instructions <b>Item</b>: Level Switch <b>Power Required</b>: 120VAC <b>Country of Origin (subject to change)</b>: United States
CatTools & Home Improvement
CatId228013
CatTree228013 468240 495266 495334
ClassificationId6291368011
Connectivity_protocolX-10
Currency, CurrencyCodeUSD
Current_rating15.0
DisplayNameOutlet Switches
Externally_assigned_product_identifier, Identifier00714452101580 0714452101580 714452101580
FetchTime1626186597 1651775643 1677753255 1689993603 1704367423
Height18 21.0 5.7 5.70 500 75
IdentifierTypeEAN GTIN UPC
Included_componentsInstructions
International_protection_ratingIP54
ItemClassificationBASE_PRODUCT
ItemName, Item_nameLevel Switch, Paddle
Item_package_weight3.01
Item_type_keywordelectrical-outlet-switches
Item_weight4.0
Label, Man, Publisher, StudioPROXIMITY
Length18.0 21 8.2 8.20
Linkhttps://m.media-amazon.com/images/I/31IYZWiQG8L._SL75_.jpg https://m.media-amazon.com/images/I/31IYZWiQG8L.jpg
List_price545.99
Marketplace_idATVPDKIKX0DER
Marking_typeepa_registration_number
MaterialCopper
MaterialTypeCopper HAWA
Mounting_typeSurface Mount
ProductCategoryId6291368011 home_improvement_display_on_website
ProductGroupBISS BISS Basic
ProductTypeELECTRONIC_SWITCH
ProductTypeNameELECTRONIC_SWITCH HOME_LIGHTING_ACCESSORY
Product_description'Level Switch, Paddle, Power Required 120VAC, Enclosure NEMA 4X, Switch Type SPDT, Contact Rating 15A @ 120/230VAC, 5A @ 24VDC, Includes Instructions, Manufacturers Warranty Length 1 Year'
Product_site_launch_date2012-05-26T01:06:33.427Z
Rank3965121 6919
Registration_statusfifra_not_considered_pesticide not_capable_emitting_rf_energy
Specification_metNema
Supplier_declared_dg_hz_regulationnot_applicable
Terminal_typeSpdt
TitleLevel Switch Paddle Level Switch, Paddle
TypeCount ean gtin upc
URLhttps://m.media-amazon.com/images/I/31IYZWiQG8L._SL75_.jpg
Unitamps inches pounds
Unit_count1.0
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width18 18.0 5.3 5.30 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comPLS-W-S-1-0-0-0-01-211 @ $413.60
ZoroG146420614111 @ $432.31
MegadepotPLS-W-S-1-0-0-0-0111 @ $371.20
grainger.caWWG2HMD1111 @ $743.78
simsupply.comZO-G146420613111 @ $545.91
