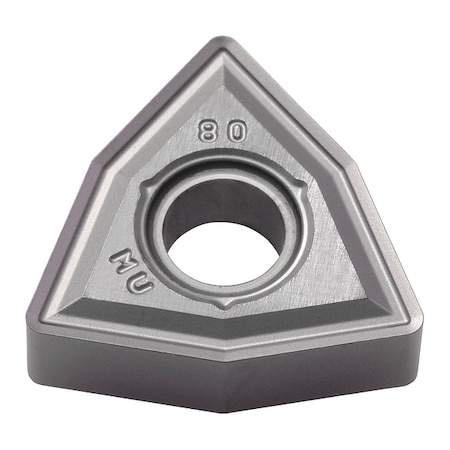

Diamond Turning Insert, Chip-Breaker Code MU, Inscribed Circle 1/2 in, Megacoat Hard, ANSI Code WNMG432MU, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees , Coating Process PVD

<ul><li>Insert for External Turning, Facing, Boring, Internal Facing</li><li>Stainless Steel / HRSA with 6 Cutting Edges</li><li>Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate</li><li>Resists heat concentration at the cutting edge to promote stable machining</li><li>Application: Hard, wear resistant grade for high-speed machining of continuous to light interrupted heat-resistant alloys</li></ul><p>Product Details:</p><ul><li>Insert Style: WNMG</li><li>Insert Size: 432</li><li>Chipbreaker: MU</li><li>Insert Grade: PR005S</li><li>Material: Carbide</li><li>Coating Process: PVD</li><li>Coating / Composition: MEGACOAT HARD</li><li>[IC] Inscribed Circle (Decimal Inch): 0.5000</li><li>[IC] Inscribed Circle (mm): 12.70</li><li>[S] Thickness (Decimal Inch): 0.1875</li><li>[S] Thickness (mm): 4.76</li><li>[RE] Corner Radius (Decimal Inch): 0.0313</li><li>[RE] Corner Radius (mm): 0.79</li><li>[D1] Hole Diameter (Decimal Inch): 0.2031</li><li>[D1] Hole Diameter (mm): 5.16</li><li>Rake: Negative</li><li>[AN] Relief Angle (Degree): 0</li><li>Included Angle (Degree): 80</li><li>Primary Workpiece Material: Heat Resistant Alloys</li><li>Shape: Trigon</li><li>Cutting Edge Style: Stainless Steel / HRSA</li><li>Insert Hand: Neutral</li><li>Insert Holding Method: Screw</li><li>Number of Cutting Edges: 6</li><li>Application: External Turning, Facing, Boring, Internal Facing</li><li>Usage Classification: Continuous</li><li>Hole (Yes/No): Yes</li><li>Cutting Range: Medium-Roughing</li><li>Compatible Holders (Partial): DWLNR...-4..., DWLNL...-4..., DWLNR...-08, DWLNL...-08, MWLNR...-4…, MWLNL...-4…, PWLNR...-08, PWLNL...-08, WWLNR...-08, WWLNL...-08, ...-DWLNR4, ...-DWLNL4, ...-DWLNR08 -..., ...-DWLNL08 -..., ...-PWLNR08 -..., ...-PWLNL08 -..., ...-WWLNR08 -..., ...-WWLNL08 -...</li></ul>
