Order 8WS10-000-104 by Canfield Connector 8WS Magnet Sensor Red LED, MOV - US Mega Store

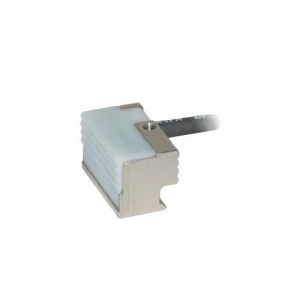

Canfield Connector . 8WS10-000-104

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCanfield Connector
Attribute00, Attribute1604
Attribute01, Attribute17Reed Switch, Red LED and MOV
Attribute02, Attribute188 mm quick connect male pigtail
Attribute03, Attribute195 - 120V AC/DC
Attribute04, Attribute200.5 Amps Max. 0.005 Amps Min.
Attribute05, Attribute2110 watts Max
Attribute06, Attribute223.0 Volts
Attribute07, Attribute2385 Ga.
Attribute08, Attribute24Normally Open SPST
Attribute09, Attribute25Reed / Electronic: 85 Gauss Parallel (measured from sensor surface)
Attribute10, Attribute26Up to 30G (11mS) Reed Only (not applicable for electronics)
Attribute11, Attribute27Up to 20G (10-55 Hz) Reed only
Attribute12, Attribute28-20° to +80°C
Attribute13, Attribute29Designed for IP 67 / NEMA 6
Attribute14, Attribute303.7mm
Attribute15, Attribute3124 AWG standard
AttributeKey00, AttributeKey16Switch Type / Tech. Specs.
AttributeKey01, AttributeKey17Description
AttributeKey02, AttributeKey18Connection Options
AttributeKey03, AttributeKey19Switching Voltage
AttributeKey04, AttributeKey20Switching Current
AttributeKey05, AttributeKey21Switching Power
AttributeKey06, AttributeKey22Voltage Drop
AttributeKey07, AttributeKey23Magnetic Sensitivity
AttributeKey08, AttributeKey24Function
AttributeKey09, AttributeKey25Sensitivity / Orientation
AttributeKey10, AttributeKey26Shock
AttributeKey11, AttributeKey27Vibration
AttributeKey12, AttributeKey28Temperature Range
AttributeKey13, AttributeKey29Environmental Protection
AttributeKey14, AttributeKey30, length_Attrib, width_AttribCable Diameter
AttributeKey15, AttributeKey31Wire Gauge
CategoryL1Process Control & Automation
CategoryL2Sensors
CategoryL3Speed
CategoryL4Canfield Connector 8WS10-000-104
ConditionNEW
DimensionUnitmm
Extra Product NameOrder 8WS10-000-104 by Canfield Connector 8WS Magnet Sensor Red LED, MOV - US Mega Store
diameter, length, width3.7
moq, multiple, tierMinQty11
MPN, SKU8WS10-000-104
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Canfield Connector, 8WS10-000-104, 8WS Series Reed and Electronic Magnet Sensors, Reed Switch, Red LED & MOV </strong> </p> <p>The Canfield Connector 8WS Series reed and electronic magnet sensors are rugged yet compact switches used to sense position on pneumatic actuators equipped with a magnetic piston and 12mm dovetail groove. The switch can be slipped in and tightened from anywhere along the groove that is fabricated into the cylinder wall or clamping system. The switch features a die cast holder which clamps to the cylinder groove while the electronics are fully encapsulated and resistance to environment. These sensors offer a wide voltage range from 0-120 V AC/DC 50/60Hz and have a up to a 500 mA switching current rating. The switch has a high intensity indicator light which indicates power to the switch and load. </p>
tierPrice154.71

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com8WS10-000-10412 Weeks Factory Lead Time11 @ $54.71
heavydutydepot.com8WS10-000-104211 @ $54.71
Radwell8WS10-000-10411
