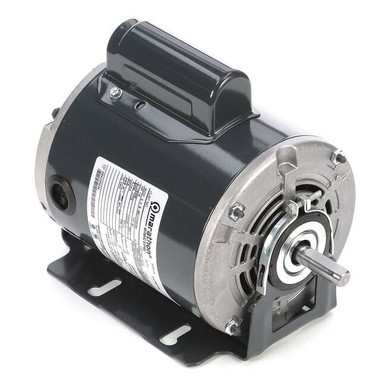

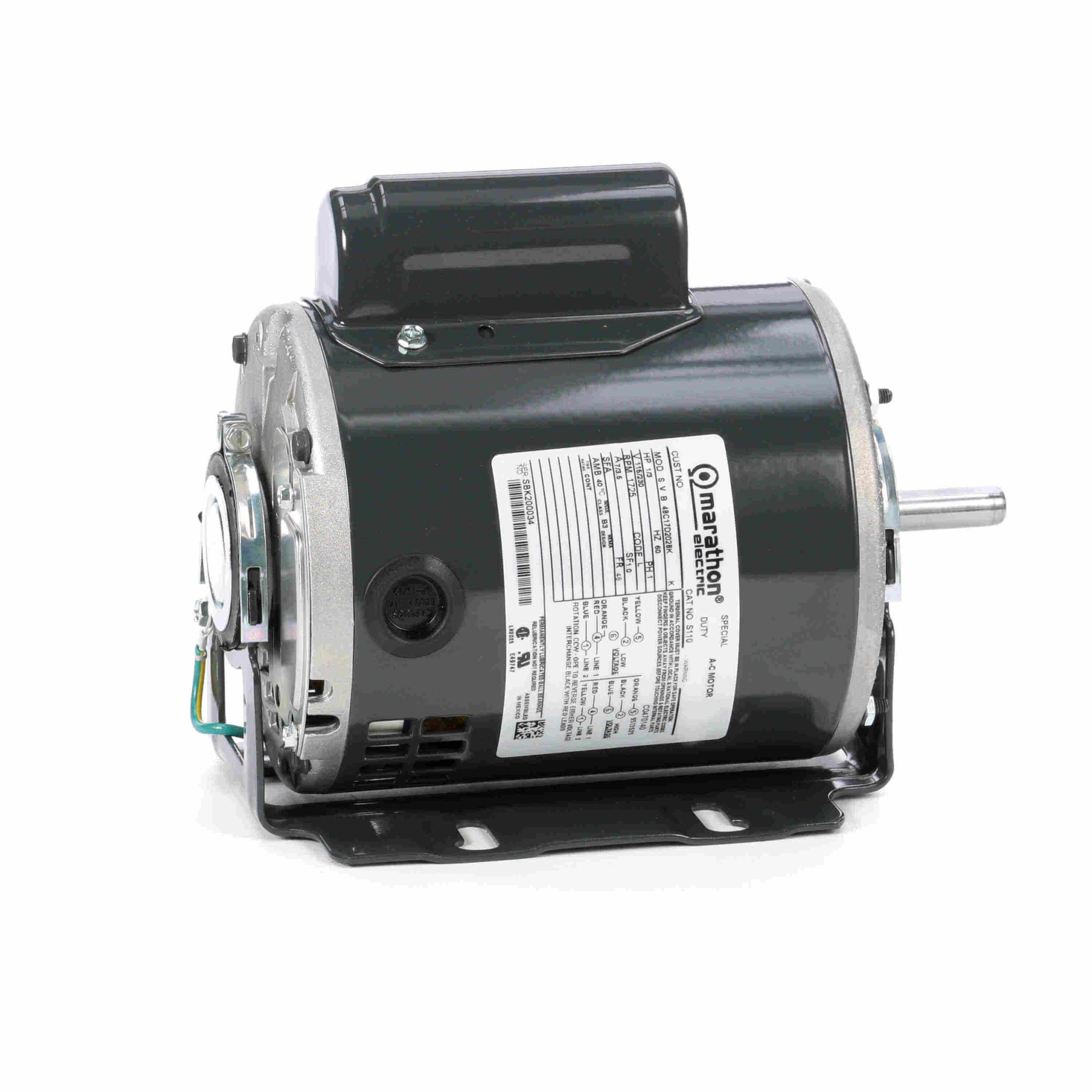

Marathon 048C17D2028, General Purpose Motor, 33/100 HP, 115/230 Volts, 3.5 Amps, 1 Phase, 1725 RPM, 60 Hz, ODP Enclosure, 48 Frame, Resilient Base, Footless Mounted, Rolled Steel Frame, Catalog No: S110

Keep equipment running with this general purpose motor. It features a capacitor-start, which is typically used in pumps, compressors, tools, conveyors, farm equipment, and industrial ventilators. It also features an open dripproof motor enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/3<br /> Nameplate RPM: 1725<br /> Frame: 48<br /> Voltage: 115/230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 7.0/3.5<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-1/2"<br /> Length Less Shaft: 7-3/4"<br /> RPM Range: 1701-1800<br /> Standards: UL (E49747), CSA (LR2025)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 75.5%<br /> RPM Group: 1701-1800<br />
