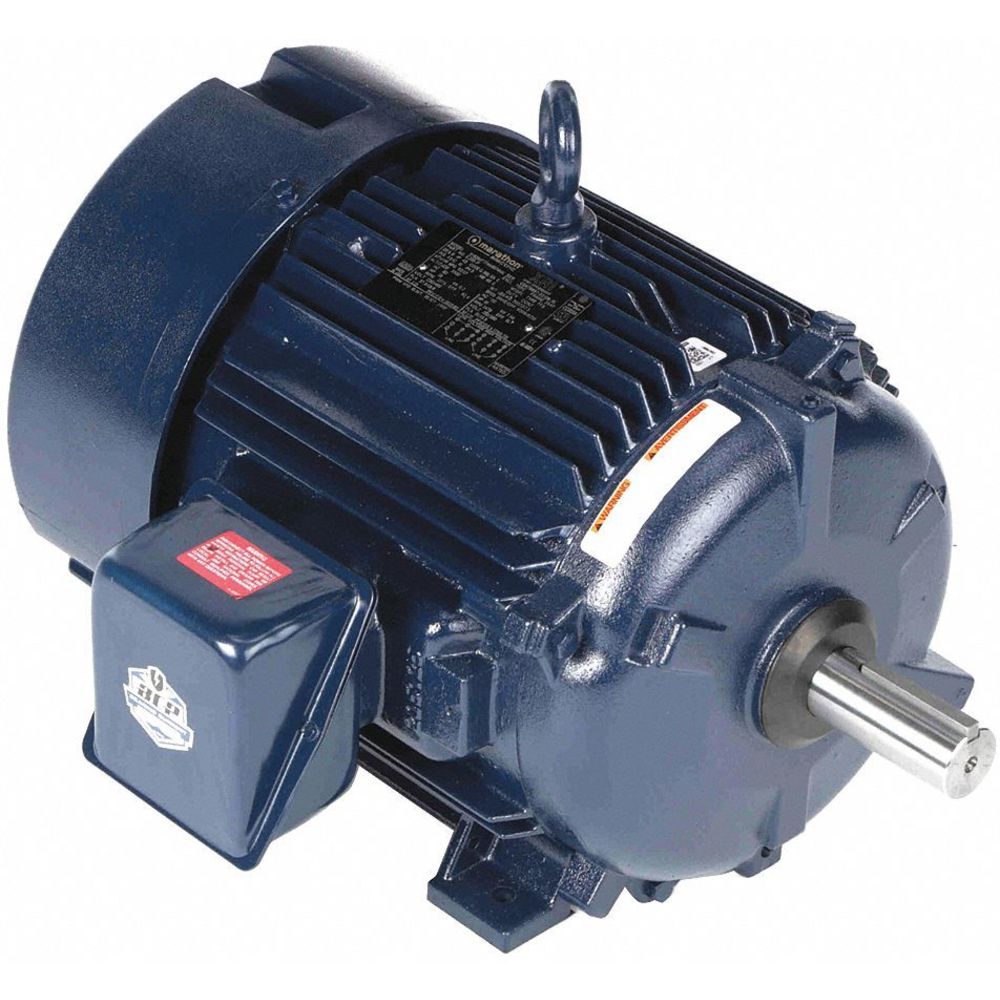

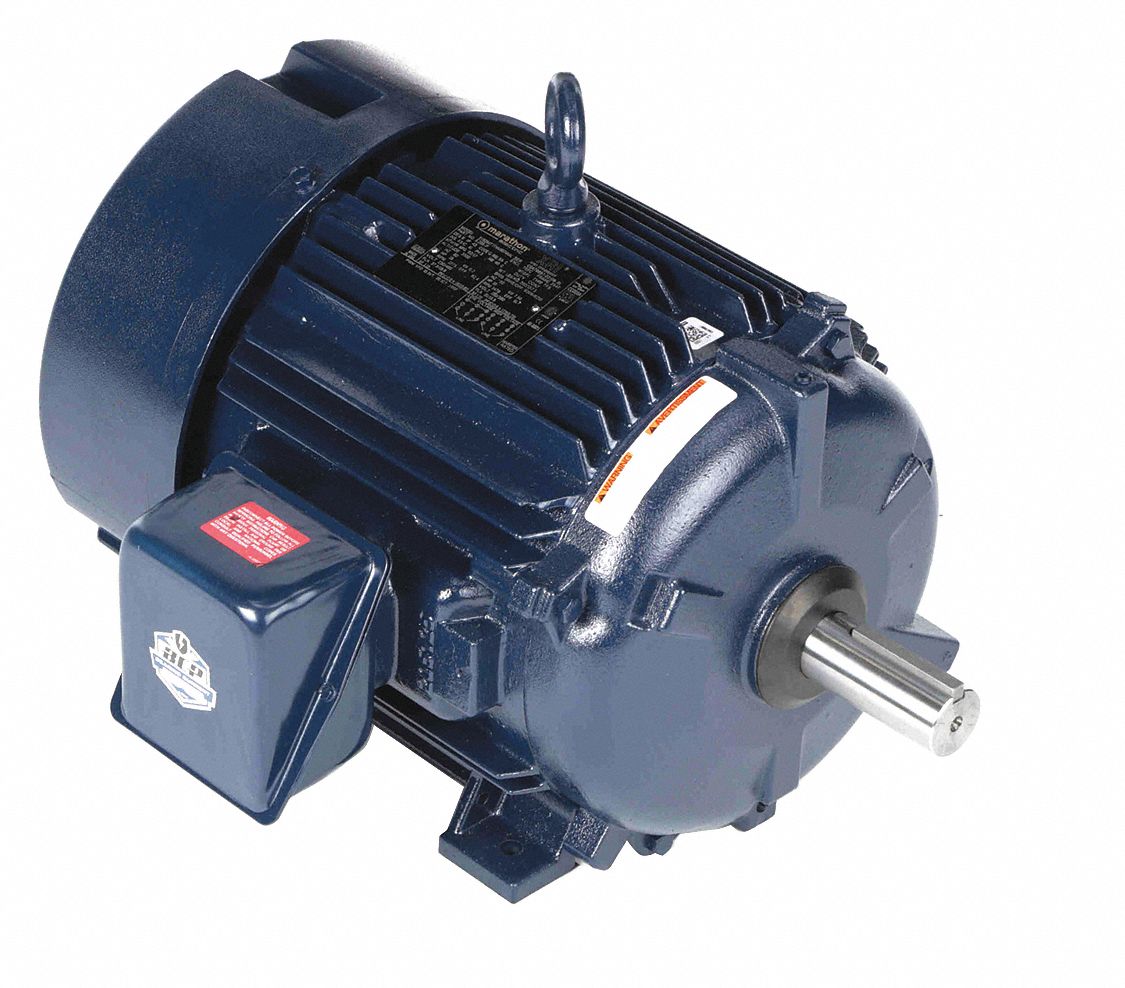

213TTFND16326-Marathon Electric-AC

<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 7-1/2<br /> Nameplate RPM: 1765<br /> Frame: 213T<br /> Voltage: 230/460<br /> Hz: 60/50<br /> Phase: 3<br /> Full Load Amps: 19.2/9.6<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Cast Iron<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1-3/8"<br /> Shaft Length: 3-1/2"<br /> Length Less Shaft: 16-1/8"<br /> Overall Length: 19-5/8"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E49747), CSA (LR2025), CE Listed<br /> Duty: Continuous<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 91.7%<br /> CC Number: CC003A<br /> Inverter Rated: Yes<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
