Mean Well . MDR-10-24

MEAN WELL

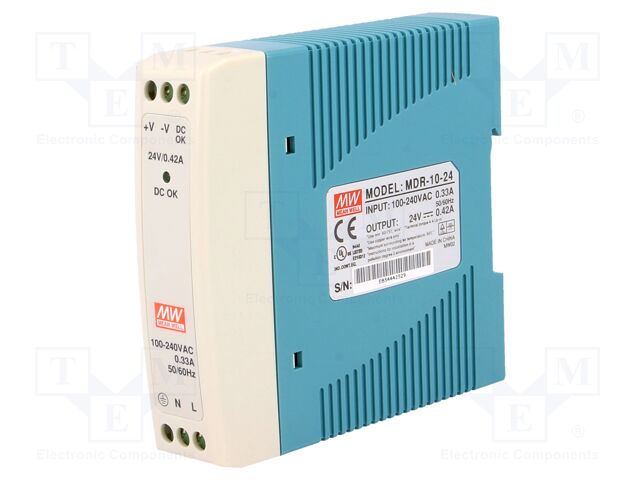

MDR-10-24 Mean Well Power Supply

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Installed on DIN rail TS35 / 7.5 or 15</p> <p>Protections: Short circuit / Overload / Over voltage</p> <p>No load power consumption <0.75W</p> <p>LED indicator for power on</p> <p>DC OK signal output</p> <p>Cooling by free air convection</p> <p>100% full load burn-in test</p> <p>3 years warranty </p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:85~264VAC; 120~370VDC</p> <p>AC inrush current:Cold start, 35A at 115VAC, 70A at 230VAC</p> <p>DC adjustment range:Fixed</p> <p>Overload protection:>105% hiccup mode, auto-recovery</p> <p>Over voltage protection:115%~135% rated output voltage</p> <p>Setup, rise, hold up time: 500ms, 30ms, 120ms</p> <p>Withstand voltage:I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute</p> <p>Working temperature:-20~+70°C (refer to output derating curve)</p> <p>DC OK signal:Open collector</p> <p>Safety standards:UL508, TUV EN60950-1 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3</p> <p>Connection:I/P: 3 poles, O/P: 3 poles screw DIN terminal</p> <p>Dimension (LxWxH) :22.5x90x100</p> <p>Packing:72pcs / 13.2kg</p>

MEAN WELL

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

Model：MDR-10-24 <br> Output DC Voltage:24V<br> Output Rated Current:0.42A<br> Output Current Range:0～0.42A<br> Output Rated Power:10W <br> Output Ripple And Noise:150mVp-p<br> Output voltage accuracy:±2.0% <br> Output linearity adjustment rate:±1.0%<br> Load Regulation:±2.0%<br>

This item will ship MDR-10-24*1pcs,enjoy shopping and best wishes!

10W single output industrial DIN rail power supply 5 Volts 2 Amps features: universal AC input/full range protections: short circuit/overload/over voltage cooling by free air convection can be installed on DIN rail ts-35/7.5 or 15 NEC Class 2/LPS compliant LED indicator for power on no load power consumption 100 percent full load burn-in Test 3 years warranty built in DC OK active signal detailed specifications: primary output voltage (VDC): 5 output current (a): 2 maximum output power (W): 10 family: mdr-10 input voltage (VAC): 85 to 264 input frequency: 47 to 63 maximum input current (a): .33 output connector Type: screw terminal efficiency ( percent ): 77 operating temperature-min (CEL): -20 operating temperature-max (CEL): 70 Length (inch): 0.89 width (inch): 3.54 height (inch): 3.94 agency approvals: UL/cul/TUV/CB/CE color: white style: DIN.
