Mean Well Power Supply, Ac-Dc, 48V, 6.7A - RSP-320-48

AC DC Power Supply Single-OUT 48V 6.7A 321.6W 9-Pin

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

<p><b>Features:</b></p> <p>1U low profile</p> <p>Universal AC input / Full range</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature</p> <p>Forced air cooling by built-in DC fan</p> <p>LED indicator for power on</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:88~264VAC; 124~370VDC</p> <p>AC inrush current (max.):40A at 230VAC</p> <p>DC adjustment range:±10% rated output voltage</p> <p>Overload protection Range:105%~150%</p> <p>Overload protection Type:Hiccup mode, auto-recovery</p> <p>Over voltage protection Range:115%~145%</p> <p>Over voltage protection Type:Shut down O/P voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</p> <p>Working temperature:-30~+70°C (refer to output derating curve)</p> <p>Safety standards:UL60950-1, TUV EN60950-1, CCC GB4943 approved</p> <p>EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254</p> <p>Connection Input:9P / 9.5mm pitch terminal block</p> <p>Connection Output:9P / 9.5mm pitch terminal block</p> <p>Dimension (LxWxH):215x115x30</p> <p>Case No.:207A</p>

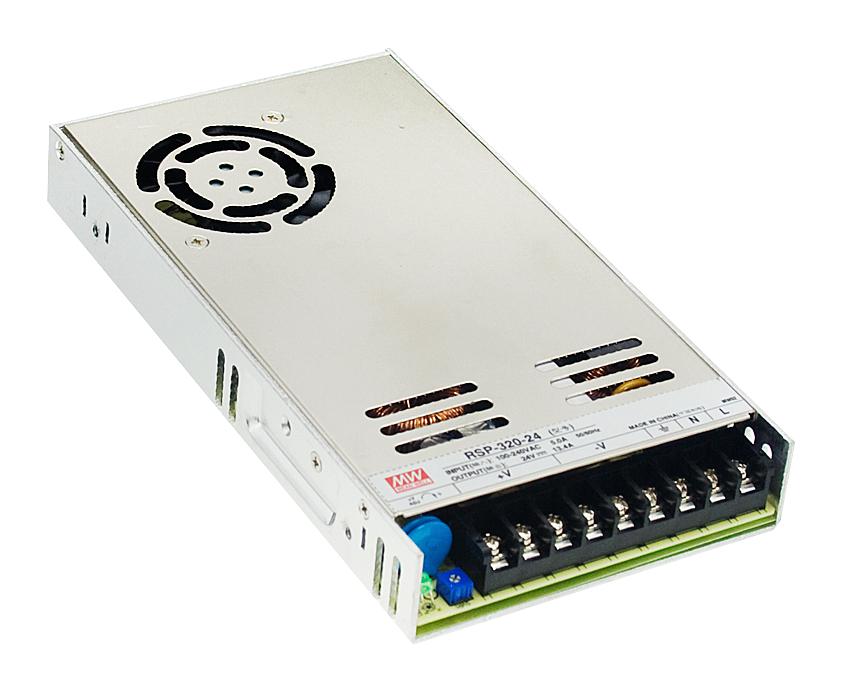

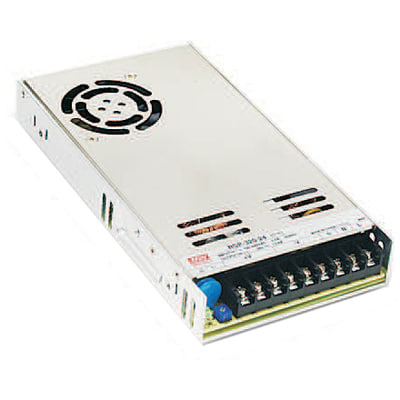

MEAN WELL RSP-320-48 Industrial Switching Power Supply
