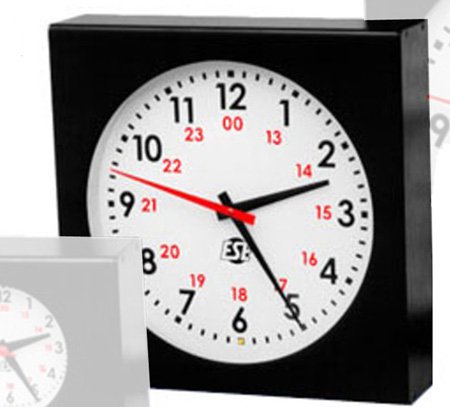

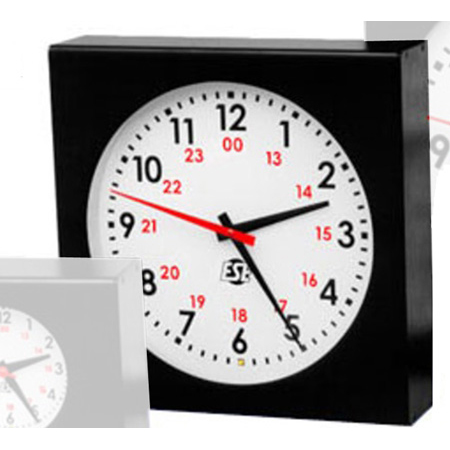

The <strong>LX-5112U</strong> is a Wall Mount Analog Clock with a 12" viewing diameter. The LX-5112U is designed to operate as a Time Code Reader or Stand-Alone Clock. It can read, decode and display time information from most any Master Clock or other source of time code. The clock will display time as received from a source of SMPTE/EBU, ASCII (format 0, 1, 8 or A) or ESE Time Code. After a very simple "set-up" procedure and receipt of time code, the unit automatically sets itself to the exact time and continuously slaves to the time code (If time code is lost, an error indicator is lit and the clock continues counting while referencing an internal crystal time base).</p><p>In absence of external Time Code the unit may be set to real time and allowed to run based on its internal crystal oscillator. The second hand is completely silent and can be programmed for "Sweep" mode or "Step" mode. The initial set-up allows the unit to have its hours (and/or minutes) offset to that of another time zone. Also, since the clock can continuously track time code, there is no need to twice annually compensate for daylight saving time (assuming the Master Clock automatically adjusts itself accordingly).</p>

The LX5112U is a Wall Mount Analog Clock with a 12 viewing diameter The LX5112U is designed to operate as a Time Code Reader or StandAlone Clock It can read decode and display time information from most any Master Clock or other source of time code The clock will display time as received from a source of SMPTEEBU ASCII format 0 1 8 or A or ESE Time Code After a very simplesetup procedure and receipt of time code the unit automatically sets itself to the exact time and continuously slaves to the time code In absence of external Time Code the unit may be set to real time and allowed to run based on its internal crystal oscillator The second hand is completely silent and can be programmed forSweep mode orStep mode The initial setup allows the unit to have its hours andor minutes offset to that of another time zone Also since the clock can continuously track time code there is no need to twice annually compensate for daylight saving time Features. Silent Operation. Simple Setup SelfSetting with Time Code Input. Autodetects ESE ASCII SMPTE or EBUTime Code IRIGB optional. StandAlone Reader Modes. Sweep or Step Second Hand. 12 Dial Viewing Distance of 60. Battery BackUp of Hand Positions. Time Zone Offset. Time Code Loss Indicator. Universal Power Supply 90264 VAC. Optional lighted dial with variable brightness controlSpecifications. Size 12. Weight 86 lbs
