Order WE31-CSR02 by W.E. Anderson 3-Way NPT Ball Valve, 1/2in Spring Return - US Mega Store

W.E. Anderson . WE31-CSR02

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute16Compatible liquids and gases
Attribute01, Attribute173-way
Attribute02, Attribute181/2
Attribute03, Attribute19Female NPT
Attribute04, Attribute2028" Hg to 1000 psi (-0.7 to 69 bar) up to 250°F
Attribute05, Attribute21Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE
Attribute06, Attribute22-20 to 392°F (-29 to 200°C)
Attribute07, Attribute23O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Attribute08, Attribute24Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II)
Attribute09, Attribute25spring return (rack and pinion).
Attribute10, Attribute2680 psi (5.5 bar).
Attribute11, Attribute27120 psi (8.6 bar)
Attribute12, Attribute281/4" female NPT
Attribute13, Attribute29Anodized aluminum body and epoxy coated aluminum end caps
Attribute14, Attribute30-40 to 176°F (-40 to 80°C)
Attribute15, Attribute31NAMUR standard
AttributeKey00, AttributeKey16Service
AttributeKey01, AttributeKey17Body
AttributeKey02, AttributeKey18Line Sizes
AttributeKey03, AttributeKey19End Connections
AttributeKey04, AttributeKey20Pressure Limits
AttributeKey05, AttributeKey21Wetted Materials
AttributeKey06, AttributeKey14, AttributeKey22, AttributeKey30Temperature Limits
AttributeKey07, AttributeKey23Other Materials
AttributeKey08, AttributeKey24Agency Approvals
AttributeKey09, AttributeKey25Type
AttributeKey10, AttributeKey26Normal Supply Pressure
AttributeKey11, AttributeKey27Maximum Supply Pressure
AttributeKey12, AttributeKey28Air Connections
AttributeKey13, AttributeKey29Housing Material
AttributeKey15, AttributeKey31Accessory Mounting
CategoryL1Plumbing
CategoryL2Valves
CategoryL3Ball
CategoryL4W.E. Anderson WE31-CSR02
ConditionNEW
Extra Product NameOrder WE31-CSR02 by W.E. Anderson 3-Way NPT Ball Valve, 1/2in Spring Return - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWE31-CSR02
qtyInStockContact Us

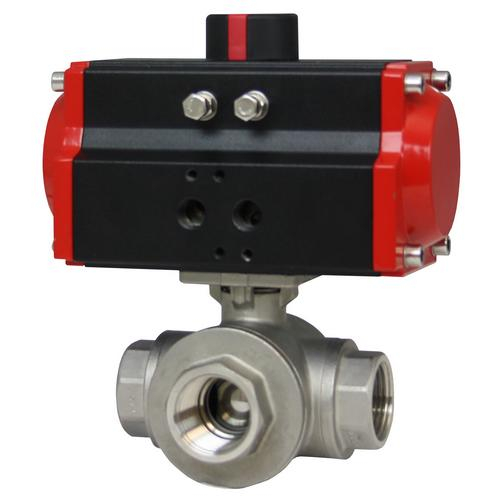

snippet<p><strong>3-Way NPT Stainless Steel Ball Valve, 1/2in Spring Return </strong> </p> <p>The Series WE31 incorporates a full port 3-way SS ball valve for great flow rates with minimal pressure drop. The valve features a blowout-proof stem for added safety, reinforced PTFE seats and seals for longer life, and a 316 SS (ASTM CF8M) ball for better performance. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches are able to be mounted directly to the valves allowing for remote position indication. </p>
tierPrice1377.27

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comWE31-CSR021Contact Us11 @ $377.27
MegadepotWE31-CSR0211
heavydutydepot.comWE31-CSR02111 @ $377.27
