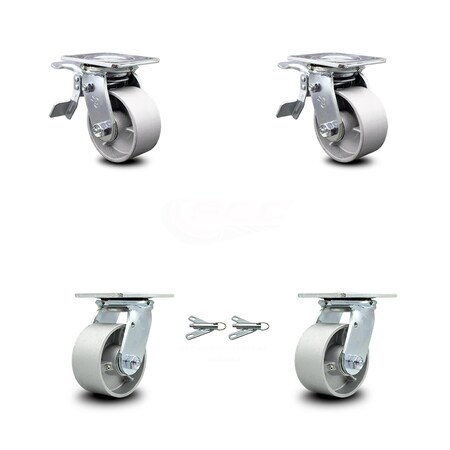

4 Inch Semi Steel Caster Set with Roller Bearings 2 Brakes 2 Swivel Locks SCC

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms, NumberOfItems, Number_of_items4
Attribute012
Attribute024" x 4-1/2"
Attribute035-5/8"
Attribute043/8" (hardware not included)
Attribute054" x 2"
Attribute062-5/8" x 3-5/8" to 3" x 3"
Attribute072 Total Lock Brakes & 2 Bolt On Swivel Locks
Attribute08Bright Zinc Plated Finish
Attribute09, Model, ModelNumber, Model_numberSeries #30
Attribute10, Material, MaterialTypeSemi Steel Cast Iron
Attribute11(2) swivel casters w/total lock brakes & (2) swivel casters w/bolt on swivel locks
Attribute121000
Attribute13-45 degrees F to 600 degrees F
Attribute14Top Plate
Attribute15Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Bolt Size
AttributeKey05Size
AttributeKey06Plate Caster Bolt Hole Pattern
AttributeKey07Caster Swivel Lock Type
AttributeKey08Finish
AttributeKey09Series
AttributeKey10Material
AttributeKey11Type
AttributeKey12Capacity (Lb.)
AttributeKey13Caster Temp. Range
AttributeKey14Caster Mounting Type
AttributeKey15Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4, DisplayNamePlate Casters
DimensionUnitinch
Extra Product Name4 Inch Semi Steel Caster Set with Roller Bearings 2 Brakes 2 Swivel Locks SCC
UPC670533943404
WeightUnitlbs
diameter, length, Unit_count4.0
extendedLead26
extendedQty-2
height5.625
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-TTL30S420-SSR-2-BSL-2
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG505442159
tierPrice1295.94
urlhttps://www.zoro.com/service-caster-4-inch-semi-steel-caster-set-with-roller-bearings-2-brakes-2-swivel-locks-scc-scc-ttl30s420-ssr-2-bsl-2/i/G505442159/
width2.0
ASINB084HQ49N4 B084JPCVCW
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB084HQ49N4
Bullet_pointBrake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #30 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4" Wheel: 4-1/4" mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight Capacity: 3-1/4": 700 lbs Capacity/Caster, 4": 1000 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
ClassificationId383663011
Color4 Swivel w/2 Lock Brakes & 2 w/Swivel Locks
Currency, CurrencyCodeUSD
Externally_assigned_product_identifier, Identifier0670533943404 670533943404
FetchTime1697678872 1704416253
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameSemi Steel Cast Iron Swivel Top Plate Caster Set 4 w/4" x 2" Silver Wheels-Includes 2 Swivel with Total Lock Brakes&2 Swivel with Bolt on Swivel Locks-4000 lbs Total Capacity- Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-TTL30S620-SSR-4
Linkhttps://m.media-amazon.com/images/I/317K7G6K2RL._SL75_.jpg https://m.media-amazon.com/images/I/317K7G6K2RL.jpg https://m.media-amazon.com/images/I/41hIhfDiSrL._SL75_.jpg https://m.media-amazon.com/images/I/41hIhfDiSrL.jpg https://m.media-amazon.com/images/I/510wcR5RtsL.jpg https://m.media-amazon.com/images/I/51CjXDE5+NL.jpg https://m.media-amazon.com/images/I/51F1zbOuiaL._SL75_.jpg https://m.media-amazon.com/images/I/51F1zbOuiaL.jpg https://m.media-amazon.com/images/I/51bXwzJ8-8L._SL75_.jpg https://m.media-amazon.com/images/I/51bXwzJ8-8L.jpg https://m.media-amazon.com/images/I/51kyhGx7yML._SL75_.jpg https://m.media-amazon.com/images/I/51kyhGx7yML.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61gKTSqDjhL.jpg https://m.media-amazon.com/images/I/61skt2YBv1L.jpg https://m.media-amazon.com/images/I/71qRgi+Ku4L.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383663011
List_price0.0
Load_capacity1000.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB084JPCVCW
ProductCategoryId383663011 biss_display_on_website
ProductGroupBISS Basic
ProductTypeWHEEL
ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for a set of four (4) Service Caster Series #30 casters, two (2) swivel with total lock brakes and two (2) swivel casters with a bolt on swivel locks, with 4" diameter by 2" wide semi steel cast iron wheels capable of supporting a total weight of 4,000 lbs. (1,000 lbs./caster).When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 30 semi steel cast iron wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250 lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with a machined hub, wheel face and double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2020-02-05T20:34:45.981Z
Rank115854 443 66698 677
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleIndustrial & Scientific Plate Casters Semi Steel Cast Iron Swivel Top Plate Caster Set 4 w/4" x 2" Silver Wheels-Includes 2 Swivel with Total Lock Brakes&2 Swivel with Bolt on Swivel Locks-4000 lbs Total Capacity- Service Caster Brand
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/317K7G6K2RL._SL75_.jpg
Unitpounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
WebsiteDisplayGroupNameAutomotive Parts and Accessories
Website_shipping_weight19.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG505442159111 @ $295.94

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Semi Steel Cast Iron Swivel Top Plate Caster Set 4 w/4" x 2" Silver Wheels-Includes 2 Swivel with Total Lock Brakes&2 Swivel with Bolt on Swivel Locks-4000 lbs Total Capacity- Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #30 casters, two (2) swivel with total lock brakes and two (2) swivel casters with a bolt on swivel locks, with 4" diameter by 2" wide semi steel cast iron wheels capable of supporting a total weight of 4,000 lbs. (1,000 lbs./caster).When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 30 semi steel cast iron wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250 lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with a machined hub, wheel face and double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #30 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4" Wheel: 4-1/4" mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 3-1/4": 700 lbs Capacity/Caster, 4": 1000 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #30
Part numberSCC-TTL30S420-SSR-2-BSL-2
Items per pack4
LabelService Caster
ManufacturerService Caster
