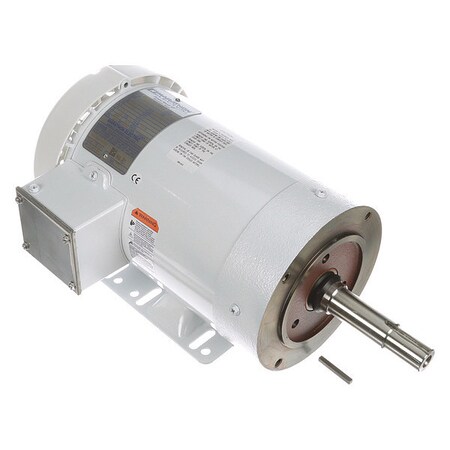

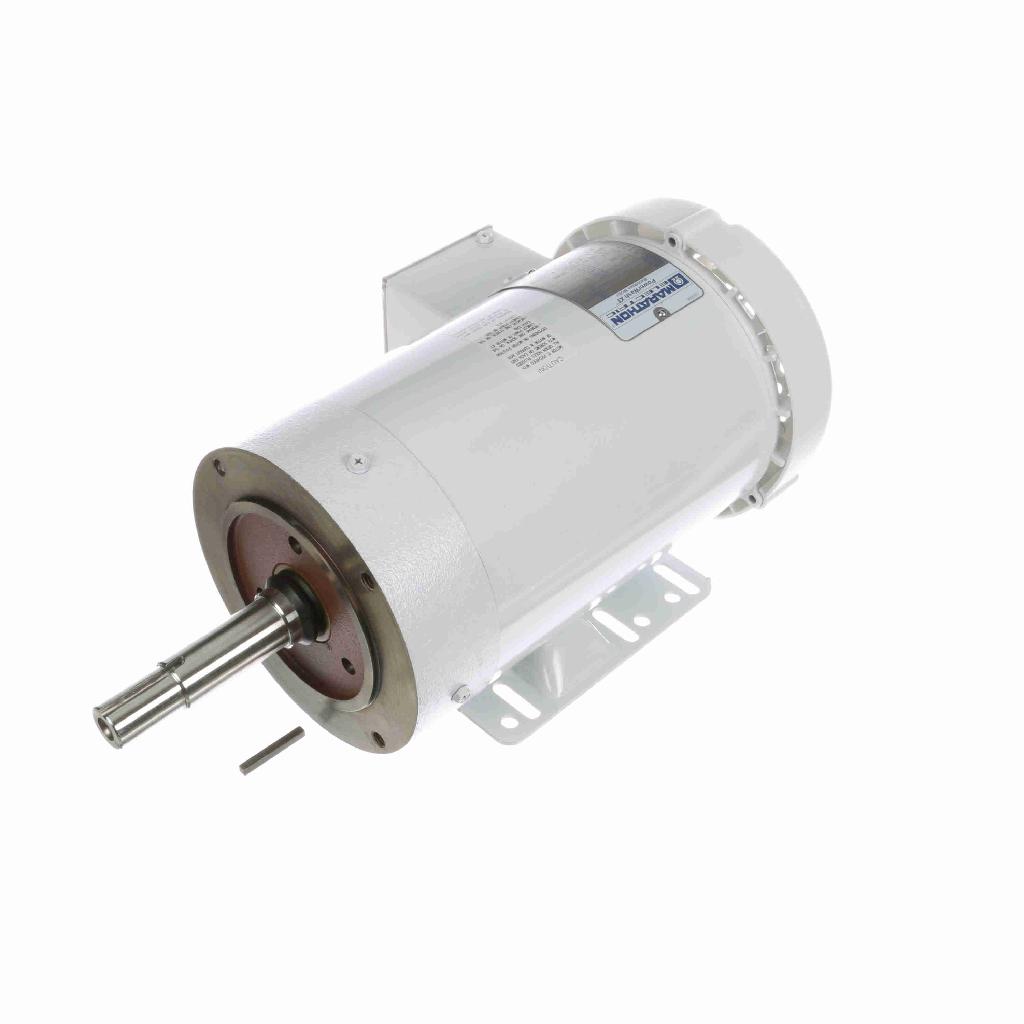

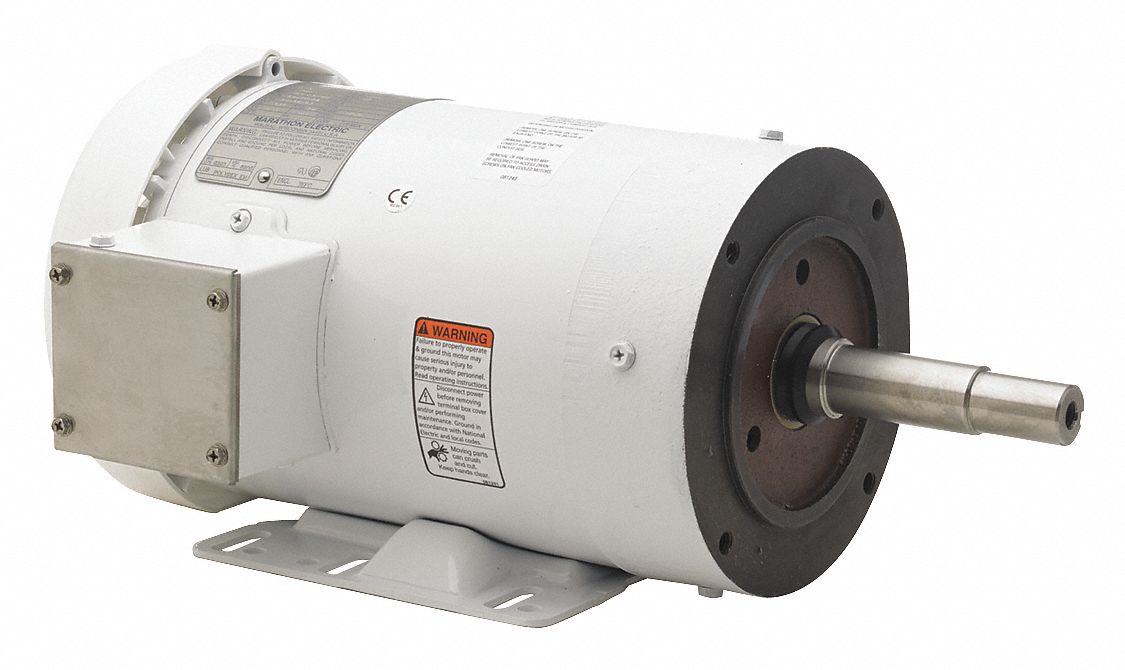

145TTWR16006-Marathon Electric-AC

<br /><br /> Item: Washdown Close Coupled Pump Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 3<br /> Nameplate RPM: 3490<br /> Frame: 145JM<br /> NEMA Design: B<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 8.0/4.0<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Position: Horizontal<br /> Motor Mounting Type: Rigid Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 4-1/8"<br /> Motor Shaft Design: Keyed<br /> Body Dia.: 6-1/2"<br /> Length Less Shaft: 12-5/16"<br /> Overall Length: 16-7/16"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Shaft Material: 303 Stainless Steel<br /> Conduit Box: Cast Aluminum with Buna-N Gasketed Cover<br /> Drain Plugs: (4) Shaft End, (4) Lead End, (2) In Conduit Box<br /> Endshields: Cast Iron<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 86.5%<br /> CC Number: CC003A<br /> Application: Washguard<br /> Standards: UL (E49747), CSA (LR2025), CE Approved
