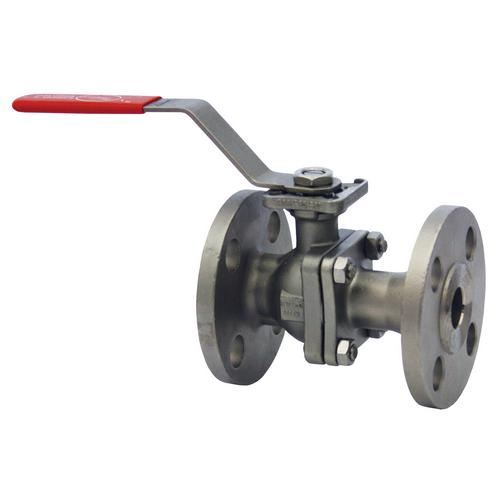

Order WE07-JHD00 by W.E. Anderson 2-Piece V-Ball Valve, 3in Hand Operated - US Mega Store

W.E. Anderson . WE07-JHD00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute09Compatible liquids and gases.
Attribute01, Attribute102-piece
Attribute02, Attribute113
Attribute03, Attribute12150# ANSI flange
Attribute04, Attribute1320" Hg to 275 psi (-0.7 to 19 bar)
Attribute05, Attribute14Body and ball: 316 SS (CF8M); Stem: 316 SS; Seat: RTFE/PTFE; Seal, Washer, and Packing: PTFE
Attribute06, Attribute15-20 to 392°F (-29 to 200°C)
Attribute07, Attribute16O-ring: Fluoroelastomer; Handle: 304 SS; Washer: 301 SS; Stem Nut, Locking Device, Gland Ring: 304 SS; Handle Sleeve: PVC
Attribute08, Attribute17Meets the technical requirements of EU Directive 2011/65/ EU (RoHS II)
AttributeKey00, AttributeKey09Service
AttributeKey01, AttributeKey10Body
AttributeKey02, AttributeKey11Line Sizes
AttributeKey03, AttributeKey12End Connections
AttributeKey04, AttributeKey13Pressure Limits
AttributeKey05, AttributeKey14Wetted Materials
AttributeKey06, AttributeKey15Temperature Limits
AttributeKey07, AttributeKey16Other Materials
AttributeKey08, AttributeKey17Agency Approvals
CategoryL1Plumbing
CategoryL2Valves
CategoryL3Ball
CategoryL4W.E. Anderson WE07-JHD00
ConditionNEW
Extra Product NameOrder WE07-JHD00 by W.E. Anderson 2-Piece V-Ball Valve, 3in Hand Operated - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUWE07-JHD00
qtyInStockContact Us
snippet<p><strong>2-Piece Flanged Stainless Steel V-Ball Valve, 3in Hand Operated </strong> </p> <p>THE SERIES WE07 incorporates a V-port ball valve for impressive flow rates with minimal pressure drop. Quarter turn control ball valves are compact, lighter weight and much less expensive than comparable sized globe valves and segmented control valves. They also offer bubble tight shut off with zero leakage and can withstand high pressure drops. The natural flow pattern of ball valves increases flow rates and in many applications valves smaller than pipeline size can be used. Actuators are direct mounted creating a compact assembly for tight spaces. Limit switches can be mounted directly to the valves allowing for remote position indication. </p>
tierPrice11205.1
