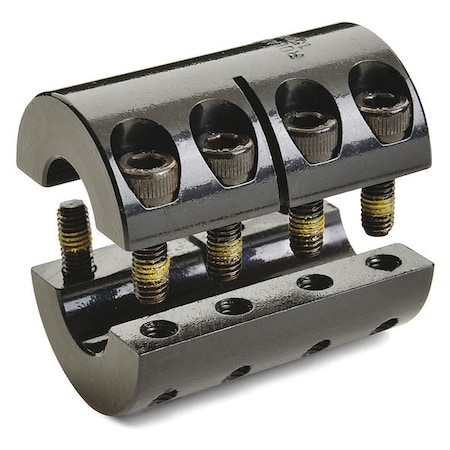

MSPX-15-14-F, 15mm x 14mm Rigid Coupling, Steel | Ruland

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
Attribute0015 mm
Attribute0114 mm
Attribute02, Attribute0325.0 mm
Attribute0434 mm
Attribute05+0.050 mm / +0.012 mm
Attribute0650 mm
Attribute071.60 mm
Attribute08+0.000 mm / -0.013 mm
Attribute09M5
Attribute10Alloy Steel with
Attribute114.0 mm
Attribute12Black Oxide
Attribute139.5 Nm
Attribute148 ea
Attribute15200 Nm
Attribute164.476 x 10
Attribute174,000 RPM
Attribute18No
Attribute19, Attribute20, Attribute21Yes
Attribute221215 Carbon Steel Bar
Attribute23-40°F to 350°F (-40°C to 176°C)
Attribute24Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Attribute25Ruland Manufacturing
Attribute26, countryOfOriginUSA
Attribute27, Weight0.575500
Attribute28, UPC634529017852
Attribute298483.60.8000
Attribute3031163009
Attribute31Performance ratings are for guidance only. The user must determine suitability for a particular application.
AttributeKey00Bore (B1)
AttributeKey01Small Bore (B2)
AttributeKey02B1 Max Shaft Penetration
AttributeKey03B2 Max Shaft Penetration
AttributeKey04, height_Attrib, width_AttribOuter Diameter (OD)
AttributeKey05Bore Tolerance
AttributeKey06, length_AttribLength (L)
AttributeKey07Recommended Gap
AttributeKey08Recommended Shaft Tolerance
AttributeKey09Forged Clamp Screw
AttributeKey10Screw Material
AttributeKey11Hex Wrench Size
AttributeKey12Screw Finish
AttributeKey13Seating Torque
AttributeKey14Number of Screws
AttributeKey15Rated Torque
AttributeKey16Moment of Inertia
AttributeKey17Maximum Speed
AttributeKey18Full Bearing Support Required?
AttributeKey19Nypatch? Anti-Vibration Hardware?
AttributeKey20Zero-Backlash?
AttributeKey21Balanced Design
AttributeKey22Material Specification
AttributeKey23Temperature
AttributeKey24Finish Specification
AttributeKey25Manufacturer
AttributeKey26Country of Origin
AttributeKey27, Weight_AttribWeight (lbs)
AttributeKey28UPC
AttributeKey29Tariff Code
AttributeKey30UNSPC
AttributeKey31Note 1
AttributeKey32Prop 65
DimensionUnitmm
Extra Product NameMSPX-15-14-F, 15mm x 14mm Rigid Coupling, Steel | Ruland
WeightUnitlbs
diameter, height, width34.0
keywordsMSPX-15-14-F, Rigid Coupling, Two-Piece Rigid Coupling
length50.0
moq, multiple, tierMinQty11
MPN, SKUMSPX-15-14-F
qtyInStock0
snippetRuland part number MSPX-15-14-F is a steel two-piece rigid coupling with 15mm x 14mm bores. Download a 2D/3D CAD file or purchase the MSPX-15-14-F directly from the manufacturer.
tierMinQty210
tierMinQty340
tierMinQty4100
tierPrice1169.25
tierPrice2153.87
tierPrice3114.89
tierPrice468.98

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandMSPX-15-14-F111 @ $169.25, 10 @ $153.87, 40 @ $114.89, 100 @ $68.98
cbtcompany.comMSPX-15-14-F11
ZoroG7099878111 @ $128.14
Digi-Key135994621711 @ $193.52
