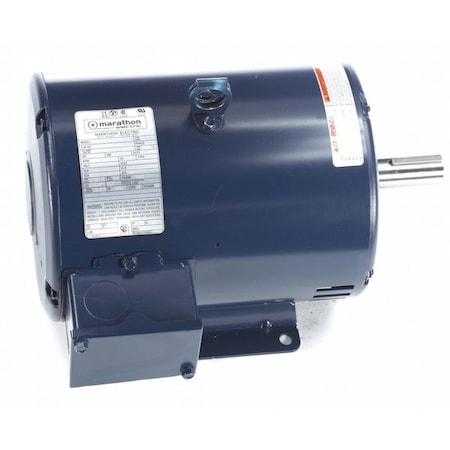

184TTDW7209-Marathon Electric-AC

Keep equipment moving with this continuous-duty belt drive motor, which is designed to run continuously for an extended time period without overheating. The 3-phase motor design offers high starting torque, and is suitable for use in industrial environments where 3-phase power is available. It also features an open dripproof enclosure design, which is engineered to permit good airflow while resisting the ingress of dripping water. The vents are angled to prevent water from entering the enclosure from above. The motor's shaft also turns a cooling fan to help pull air through the motor. Its rolled steel frame is durable and ductile, and is able to resist fracturing upon impact.<br /><br /> Item: Belt Drive Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Belt Drive Fan/Blower<br /> Motor Design: 3-Phase<br /> HP: 5, 1/4<br /> No. of Speeds: 2<br /> Nameplate RPM: 1755/875<br /> Voltage: 460<br /> Frame: 184T<br /> Motor Enclosure Design: Open Dripproof<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Hz: 60<br /> Full Load Amps: 6.9/3.0<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1-1/8"<br /> Shaft Length: 2-13/16"<br /> Overall Length: 14-3/16"<br /> Nominal Efficiency: 85.5%<br /> Duty: Continuous<br /> RPM Range: 1701-1800<br /> Phase: 3<br /> Standards: UL (E49747), CSA (LR2025)<br />
