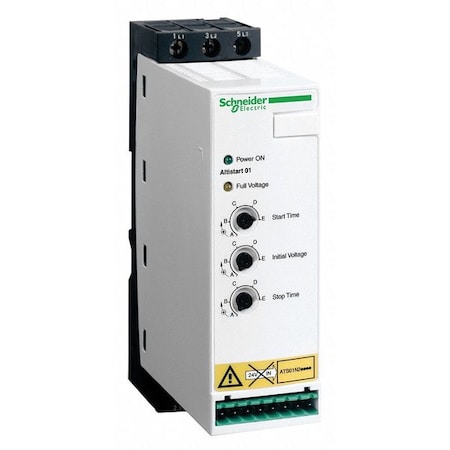

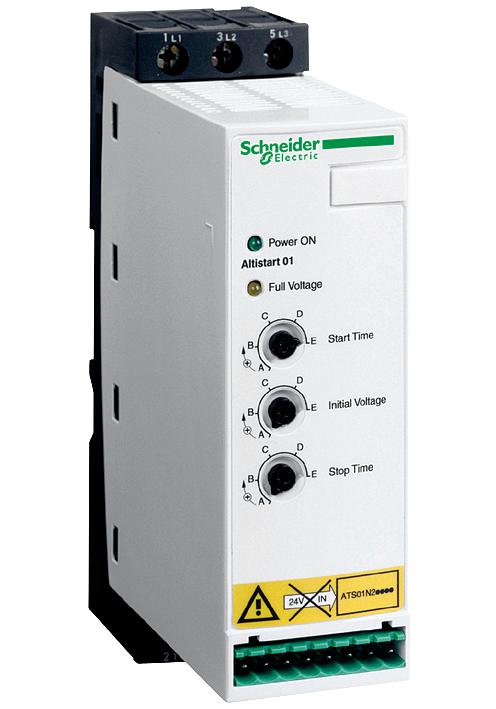

Schneider Electric Motor Starter, 3-Phase, 480Vac, 32A - ATS01N232RT

' Soft Start, Input Voltage 480VAC, Output Current 32A, With Bypass, 20 HP @ 3 Phase - 480V, Phase 3, Enclosure Rating NEMA 1, Output Voltage 480VAC, Control Voltage 24VAC/DC, IP Rating 20, Ramp Time 1 to 10 sec., Start Type Reduced Voltage Starting, Torque Limiting on Start-up, Stop Time Start and Stop times (1 - 10s) and initial (starting) voltage (30 - 80 Percent), Application Constant & Variable Torque, Includes LED display two: In.Power ON In. and In.Full Voltage In. (up to speed) '

MOTOR STARTER, 3-PHASE, 480VAC, 32A; Motor Starter Type:Soft Starter; Power Rating:20hp; No. of Phases:Three Phase; No. of Poles:-; Current Rating:32A; Supply Voltage Min:460VAC; Supply Voltage Max:480VAC; IP / NEMA Rating:IP20 RoHS Compliant: Yes

<br /><br /> Item: Soft Start<br /> Input Voltage: 480VAC<br /> Output Current: 32A<br /> With Bypass / No Bypass: With Bypass<br /> HP @ 3 Phase - 480V: 20<br /> Phase: 3<br /> Enclosure Rating: NEMA 1<br /> Output Voltage: 480VAC<br /> Control Voltage: 24VAC/DC<br /> IP Rating: 20<br /> Ramp Time: 1 to 10 sec.<br /> Start Type: Reduced Voltage Starting, Torque Limiting on Start-up<br /> Stop Time: Start and Stop times (1 - 10s) and initial (starting) voltage (30 - 80%)<br /> Application: Constant and Variable Torque<br /> Includes: LED display two:"Power ON" and "Full Voltage" (up to speed)<br /> Height: 6.06"<br /> Width: 1.77"<br /> Depth: 4.45"<br /> Starting Torque: 30% to 80% of Starting Torque Equal to Line Supply Voltage<br /> Display: No<br /> Standards: UL File No. E184727, CSA File 224330, IEC/EN 60947-4-2 CE,UL,CSA,C-Tick and CCC<br />
