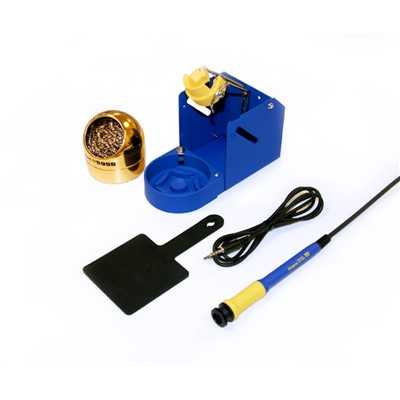

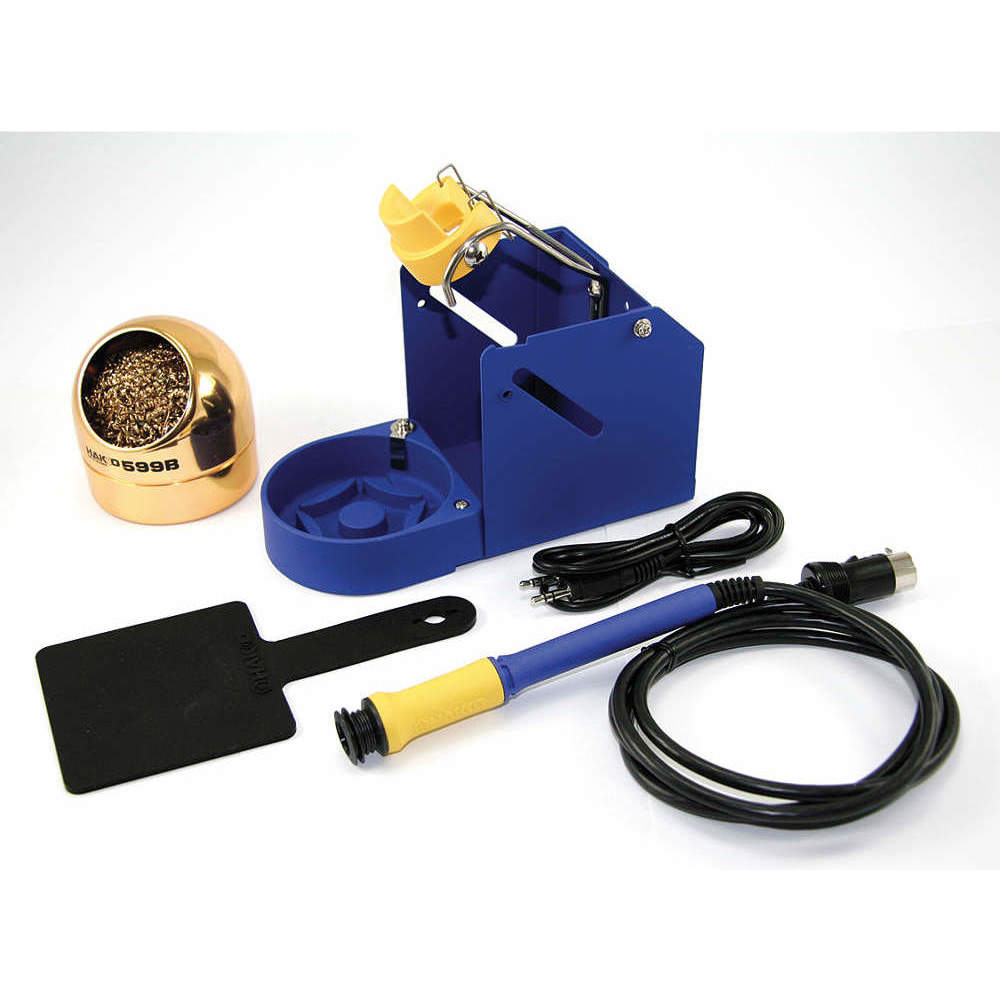

FM2030-02 Heavy Duty Soldering Iron Kit

The Hakko FM2030-02 is an ESD-safe FM-2030 soldering iron kit.

The Hakko FM-2030-02 (FM2030-01) Heavy Duty Soldering Iron is the ideal solution where soldering is difficult due to heavy ground planes or high heat sink applications. The Hakko FM2030-01 provides a higher mass tip with double the power of conventional T15 tips.The FM2030-01 is only compatible with the Hakko FM-203* Soldering Station and Hakko FM-206 High Performance 3-port Rework System (if attached to any other port, a grip error or connector error (C-E) will occur).High-powered 140W soldering iron with high heat capacity Composite-type soldering iron which has an iron tip with a built-in heater. Features the versatility to enable the soldering of a variety of components ranging from large scale components such as power supply boards, heat sinks, shield cases and coaxial cables, which require a high amount of heat, to micro components mounted on multilayer boards.While providing high heat capacity, the grip is thin and easy to hold, exactly as the FM-2027, and provides two design features that protect users' hands from high radiation heat.16 types of tips are available(T22 Series)This lineup enables soldering of components of various sizes ranging from micro to large components.Working characteristics comparison graphHigh-powered soldering iron also contributes to reductions in production time.Measurement conditionCombined use with HAKKO FM-206 with a large LCD panelHigh heat capacity soldering iron intended for exclusive use with the compact multi-rework station, HAKKO FM-206 that enables simultaneous use of three handpiecesTo work with this handpiece(HAKKO FM-2030), connect it to the Channel 2 or 3 receptacle on HAKKO FM-206.

Heavy Duty Soldering iron Kit is the ideal companion for the Hakko FM-203 soldering station or the FM-206 rework station. Compatible T22 tips Soldering Iron With Holder Provides a higher mass tip with double the power of conventional T15 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications. Ordering information: T22 tips has to be ordered separately.
