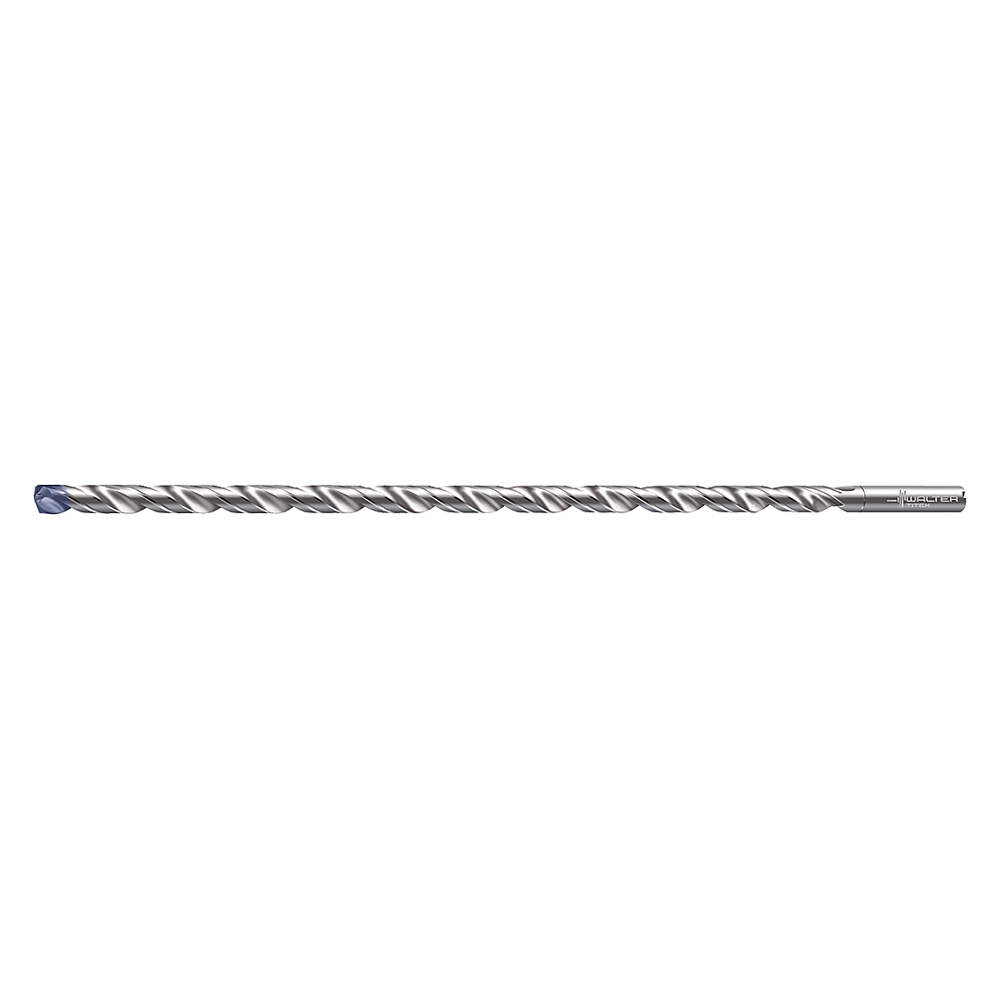

Walter A6994TFP-4.5 | Coolant Fed Drill 4.5mm 140 Carbide | 29HY12 | Raptor Supplies Worldwide

These drill bits come in sizes expressed in millimeters. They have a TiNAl coating that provides a low-friction surface on the tool and is suitable for drilling most materials. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder. This listing is for each. Technical Specification Item Jobber Length Drill Bit Drill Bit Size 4.50 mm Decimal Equivalent 0.1772 Measurement System Metric Material - Machining Carbide Finish - Machining TiNAl Drill Bit Point Angle 140 Degrees Drill Bit Point Type Self-Centering Point Coolant Fed Coolant Through Number of Coolant Holes 2 Flute Type Spiral Number of Flutes 2 Flute Length 169.00 mm Maximum Drilling Depth 169.00 mm Cutting Direction Right Hand Shank Type - Machining Straight Shank Dia. 6.00 mm Shank Length 36 mm Overall Length 208.00 mm Depth:Dia. Ratio 30xD Drill Length Class Jobber Length Drill Point Length 0.819mm Drill Bit Grouping Individual Series X.treme DH30 Standards DIN 6537 Drill Diameter Tolerance H7 Sheeter Drill No Material Grade - Machining K30F Primary Material Application Steel Primary Material Application ISO Code P Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Titanium Secondary Material Application ISO Code H, K, M, N, S
