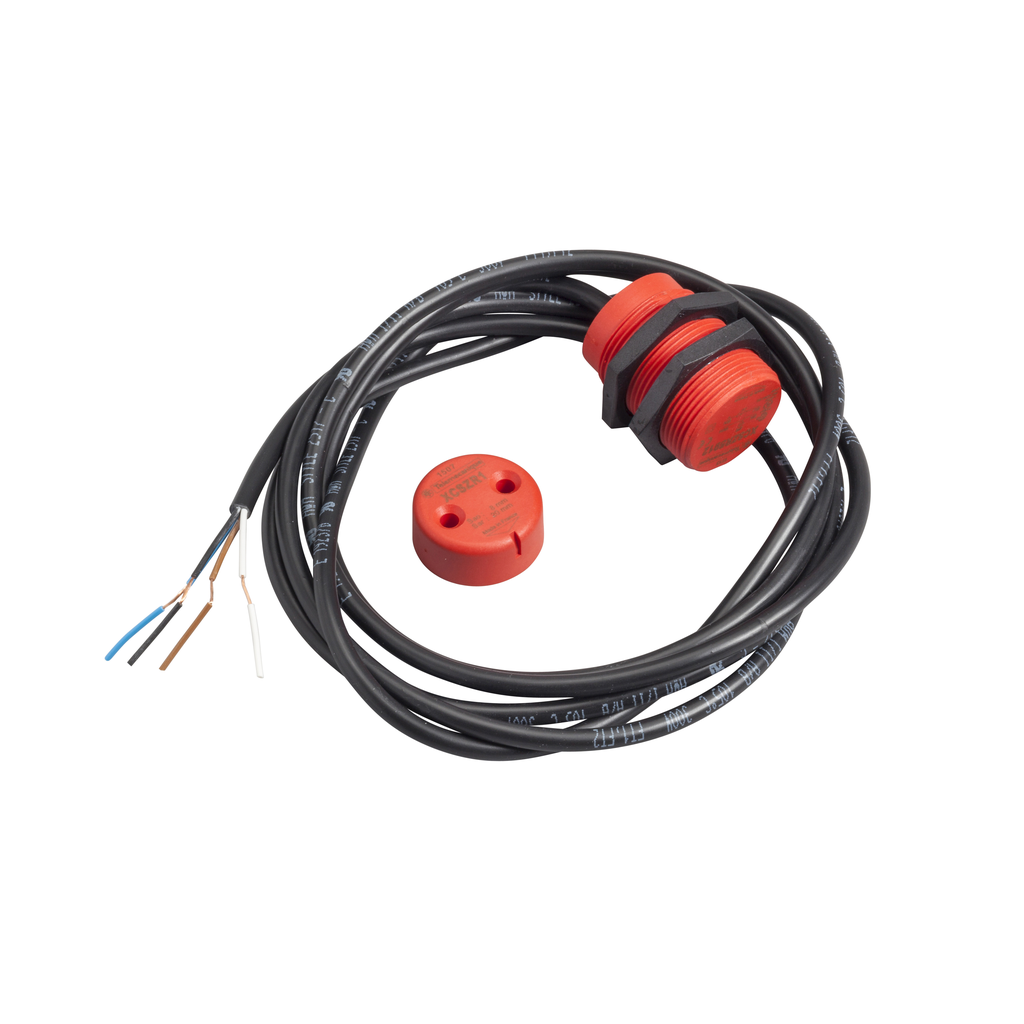

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 2 NC, staggered, 5 m | Mayer Electric

SQUARE D . SQDXCSDMR7915

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute00Telemecanique Safety switches XCS
Attribute0124 V DC
Attribute025 m
Attribute03coded magnetic switch
Attribute04XCSDMR
Attribute05plastic
Attribute06cylindrical
Attribute07? 30 x 38.5 mm
Attribute082 NC
Attribute09staggered
Attribute101 LED
Attribute11pre-cabled
Attribute124 x 0.25 mm?
Attribute131 direction
Attribute14, Attribute29100 V DC
Attribute152
Attribute1618 months
Attribute17100 mA
Attribute18150 Hz
Attribute19500 mA external cartridge fuse gG (gl)
Attribute2030 mm
Attribute215...100 mA
Attribute2220 mm
Attribute23rhodium
Attribute241000 MOhm
Attribute2557 Ohm
Attribute2639 mm
Attribute270.146 kg
Attribute282.5 kV EN/IEC 60947-5-1
Attribute308 mm
Attribute31PVC
Attribute323 VA
Attribute33B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Attribute34thermoplastic PBT
Attribute351200000 cycles
Attribute36can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Attribute37, Attribute38, Attribute39, Attribute42Yes
Attribute40Free of Substances of Very High Concern above the threshold
Attribute41Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute43Pro-active compliance (Product out of EU RoHS legal scope)
Attribute44UL || CSA
Attribute45-25-85 ?C
Attribute46EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN/ISO 12100 || ISO 14119
Attribute4730 gn 11 ms IEC 60068-2-27
Attribute4810 gn 10-150 Hz)IEC 60068-2-6
Attribute49IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
Attribute50-40-85 ?C
Attribute51class II EN/IEC 61140
Attribute520.3 mT
Attribute53TH
AttributeKey00Range Of Product
AttributeKey01[Ue] Rated Operational Voltage
AttributeKey02Cable Length
AttributeKey03Product Or Component Type
AttributeKey04Component Name
AttributeKey05Material
AttributeKey06Design
AttributeKey07Size
AttributeKey08Contacts Type And Composition
AttributeKey09Contact Operation
AttributeKey10Local Signalling
AttributeKey11Electrical Connection
AttributeKey12Cable Composition
AttributeKey13Approach Directions
AttributeKey14[Ui] Rated Insulation Voltage
AttributeKey15Number Of Poles
AttributeKey16Warranty
AttributeKey17Maximum [Ie] Rated Operational Current
AttributeKey18Switching Frequency
AttributeKey19Short-Circuit Protection
AttributeKey20, height_Attrib, width_AttribDiameter
AttributeKey21Switching Capacity In Ma
AttributeKey22[Sar] Assured Tripping Distance
AttributeKey23Contacts Material
AttributeKey24Insulation Resistance
AttributeKey25Resistance Across Terminals
AttributeKey26, length_AttribLength
AttributeKey27, Weight_AttribNet Weight
AttributeKey28[Uimp] Rated Impulse Withstand Voltage
AttributeKey29Maximum Switching Voltage
AttributeKey30[Sa] Assured Operating Distance
AttributeKey31Cable Material
AttributeKey32Breaking Capacity
AttributeKey33Safety Reliability Data
AttributeKey34Enclosure Material
AttributeKey35Electrical Durability
AttributeKey36Safety Level
AttributeKey37Rohs Exemption Information
AttributeKey38Mercury Free
AttributeKey39Toxic Heavy Metal Free
AttributeKey40Reach Regulation
AttributeKey41California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey42Reach Free Of Svhc
AttributeKey43Eu Rohs Directive
AttributeKey44Product Certifications
AttributeKey45Ambient Air Temperature For Operation
AttributeKey46Standards
AttributeKey47Shock Resistance
AttributeKey48Vibration Resistance
AttributeKey49Ip Degree Of Protection
AttributeKey50Ambient Air Temperature For Storage
AttributeKey51Electrical Shock Protection Class
AttributeKey52Maximum Sensitivity To Magnetic Fields
AttributeKey53Protective Treatment
DimensionUnitmm
Extra Product NameCoded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 2 NC, staggered, 5 m | Mayer Electric
UPC3389110971873
Weight0.146
WeightUnitkg
diameter, height, width30.0
jsonUrlData/Product/SQUARE-D-Coded-magnetic-switch-Telemecanique-Safety-switches-XCS-XCSDMR-2-NC-staggered-5-m-3389110971873
jsonUrlData28470bbee-cd2c-4591-b886-aeea00584e30
length39.0
moq, multiple, tierMinQty11
MPN, SKUSQDXCSDMR7915
qtyInStock0
tierPrice1123.2

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXCSDMR7915111 @ $123.20
